5-Bay 80-Pin SCA SCSI Hot-Swap Hard Drive Cage Backplane + 5 Trays & Fan 5-in-3

Condition Used (Clean, complete vintage server pull in very good physical condition. Includes the 5-bay steel drive cage (HC.34.92846.XXXR02), integrated 5-slot 80-Pin SCA-2 SCSI PCB backplane, all 5 matching beige 3.5" hot-swap hard drive caddies/trays with working pull-latches, side mounting brackets, and the rear cooling fan assembly as pictured. All 80-pin SCA backplane connectors, dual 68-pin rear SCSI connectors, and dual 4-pin Molex power headers have straight, clean pins. Note: Hard drives are not included; sold as the complete cage, backplane, fan, and 5-caddy assembly.)

ITEM SPECIFICS

• Type: 5-Bay Hot-Swap SCSI Hard Drive Cage & Backplane Assembly ("5-in-3" Module)

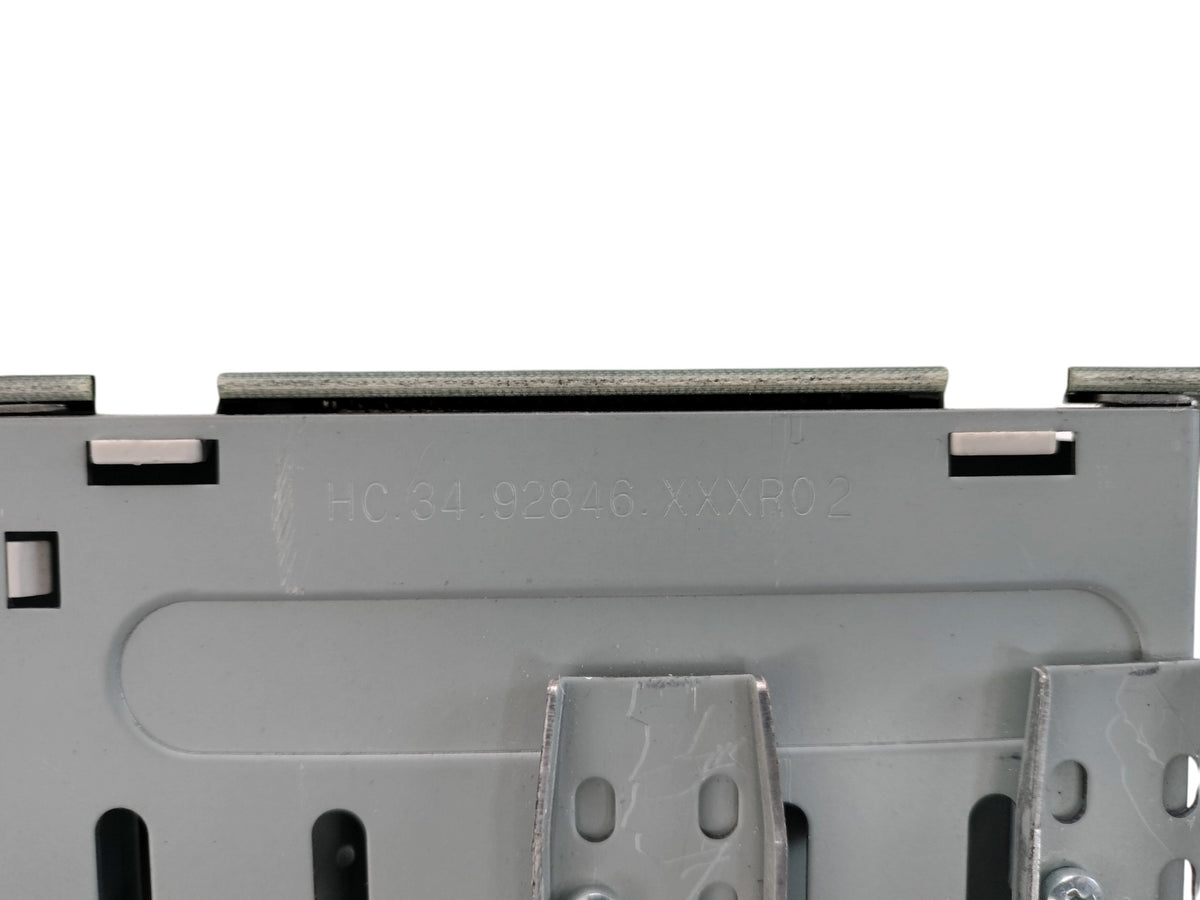

• Chassis / Part Number (MPN): HC.34.92846.XXXR02

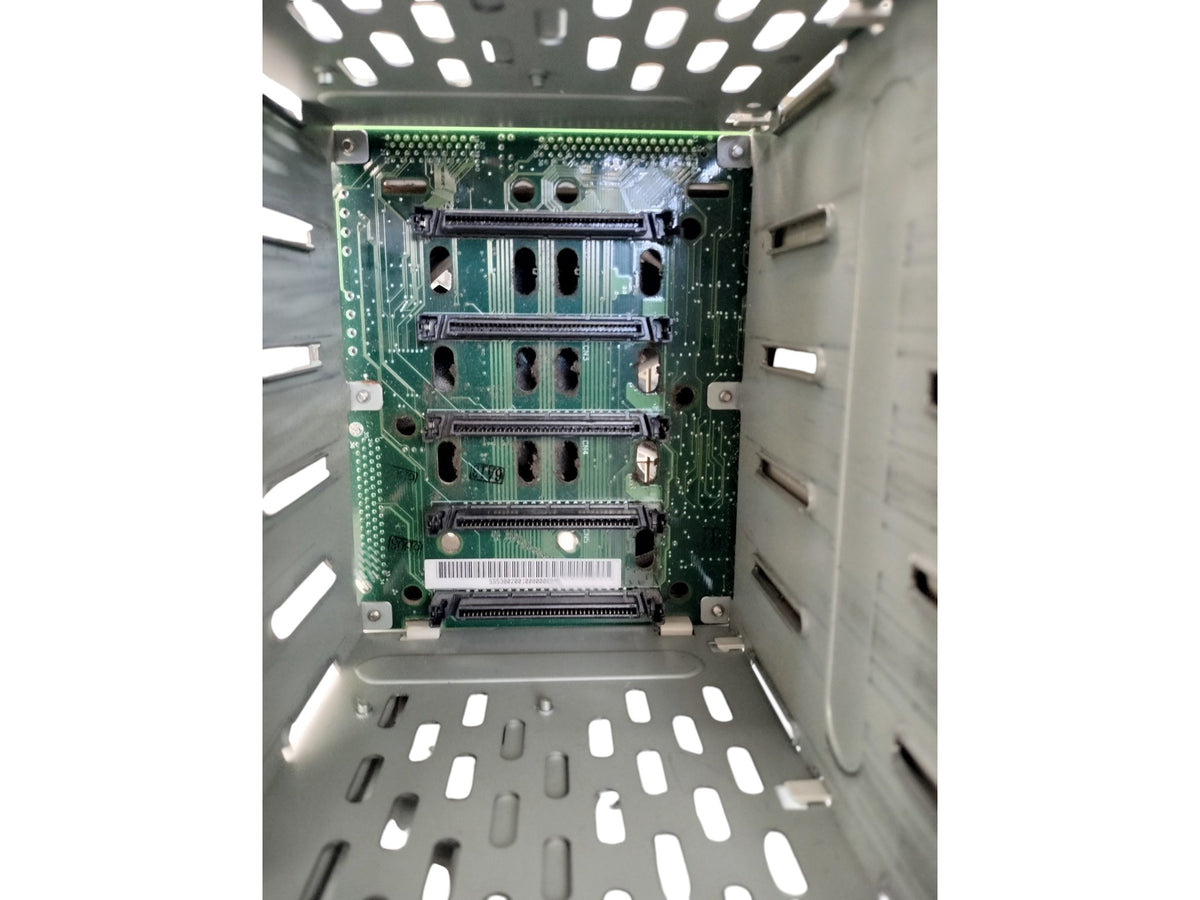

• Backplane Barcode / Serial: Visible on lower backplane sticker (IMG20261025125119.jpg)

• Drive Bay Capacity: Holds 5x 3.5" Hot-Swap Hard Drives (1" Low-Profile Height)

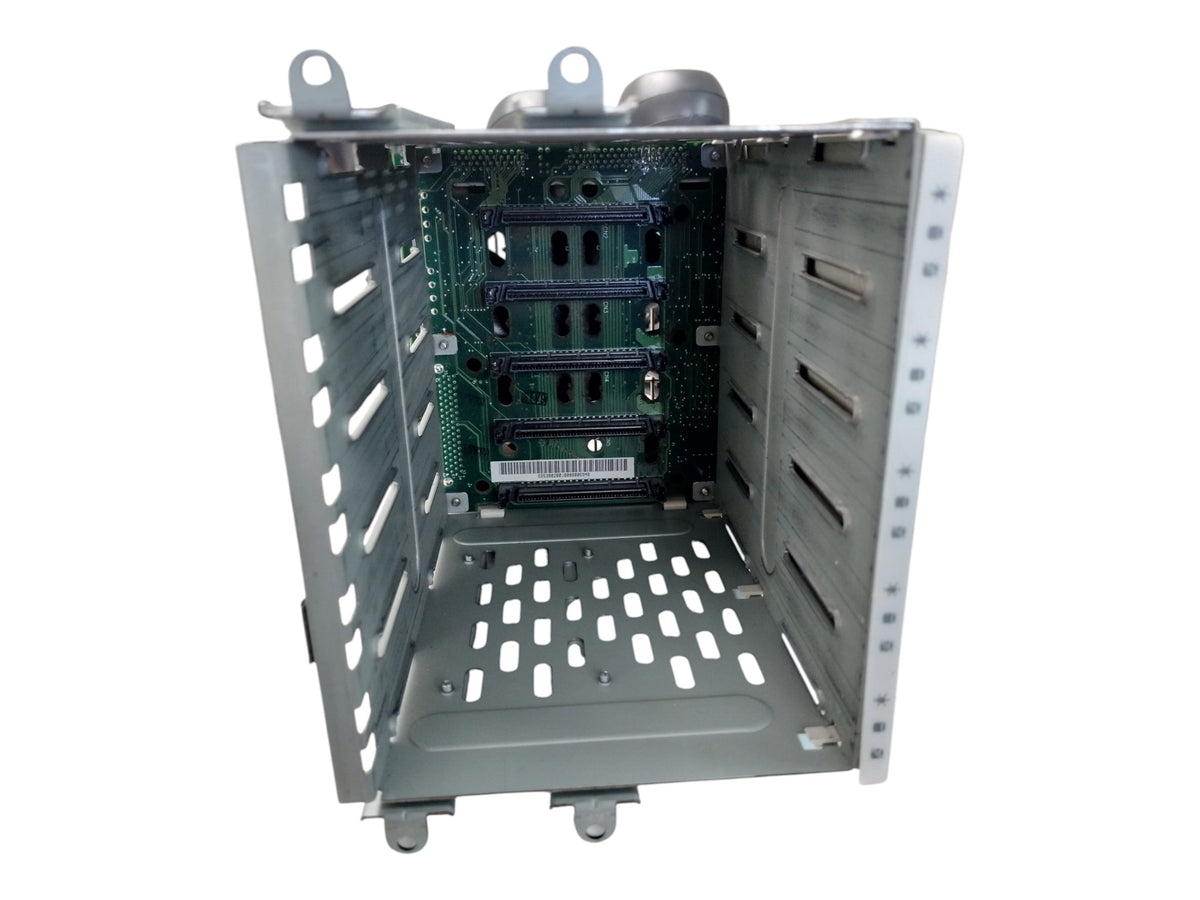

• Internal Backplane Interface: 5x 80-Pin SCA / SCA-2 Female SCSI Connectors

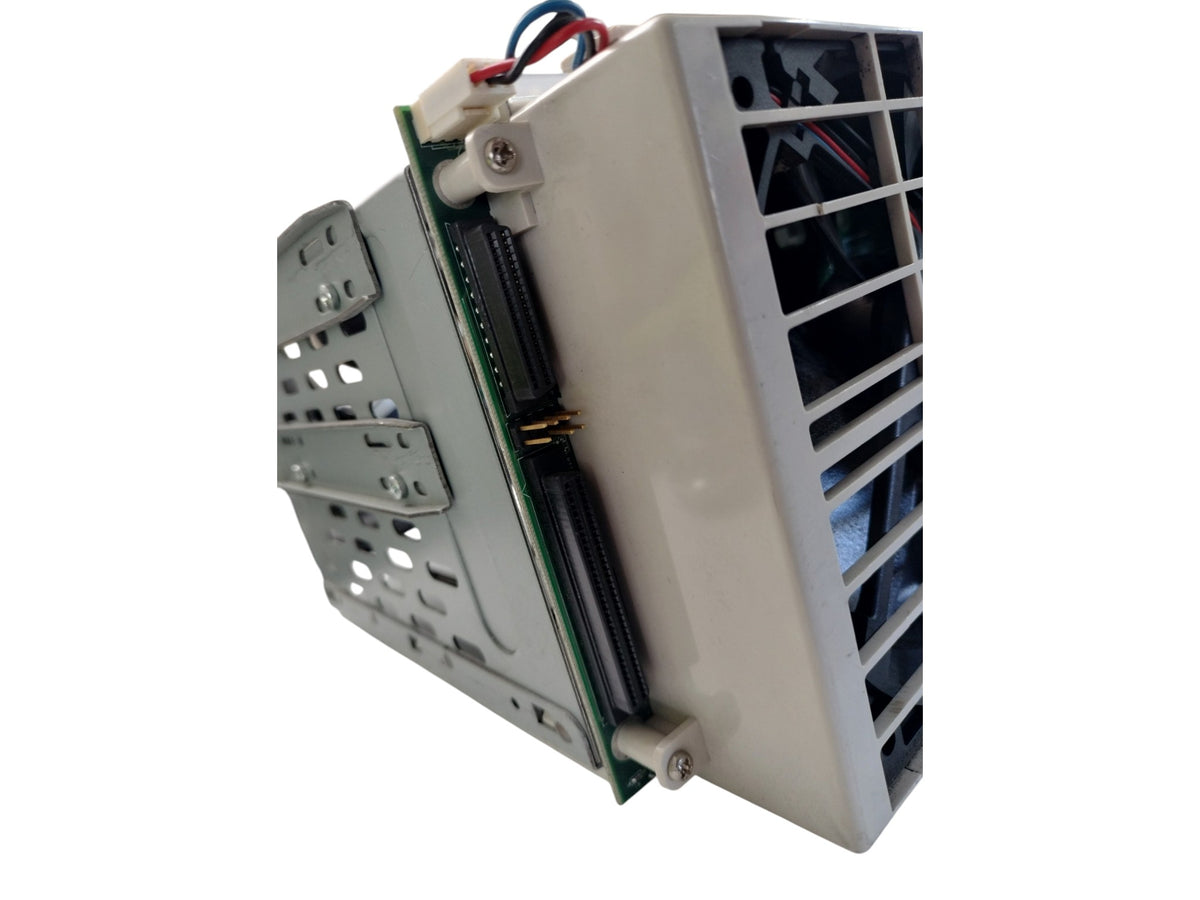

• External / Host Interface (Rear): 2x 68-Pin High-Density (HD68) Female SCSI Connectors (LVD/SE)

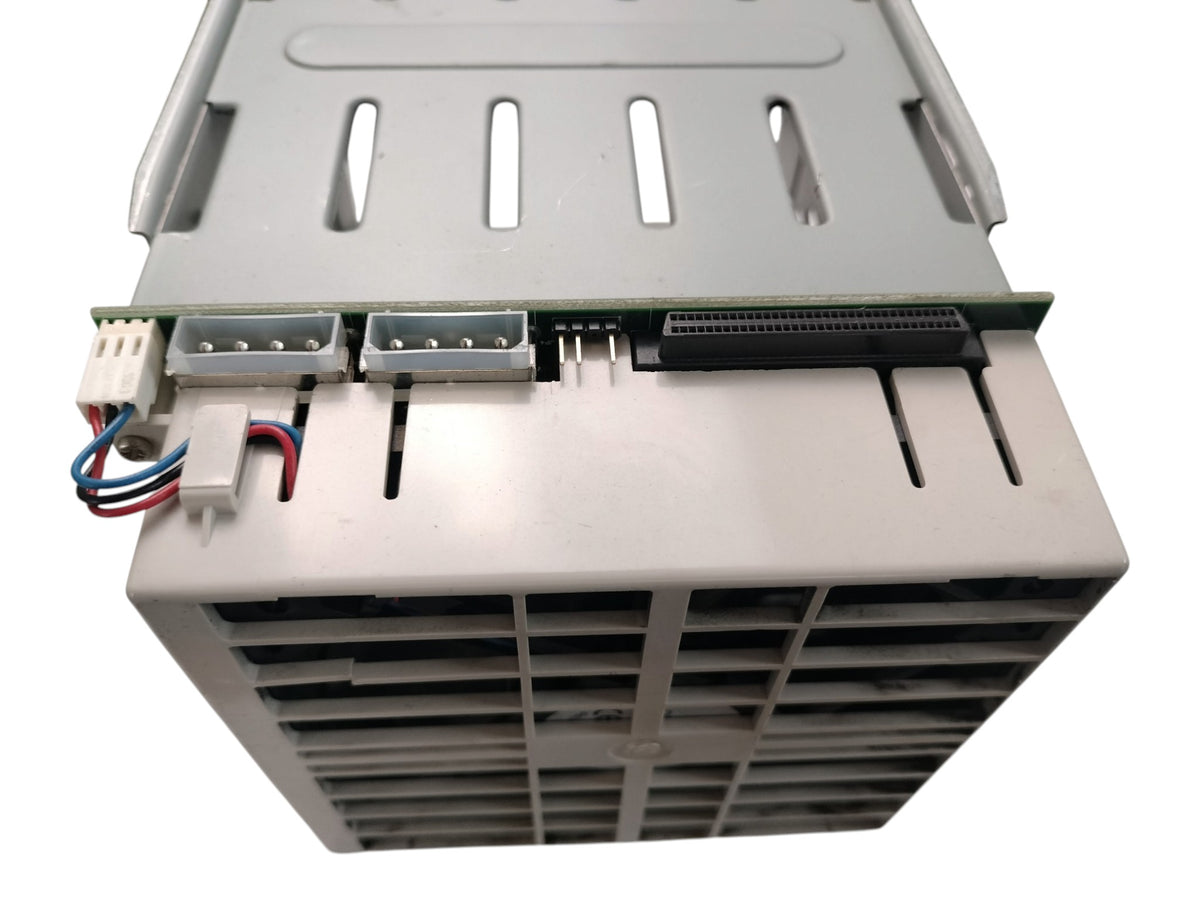

• Power Connectors: 2x Standard 4-Pin Molex Male Power Inputs

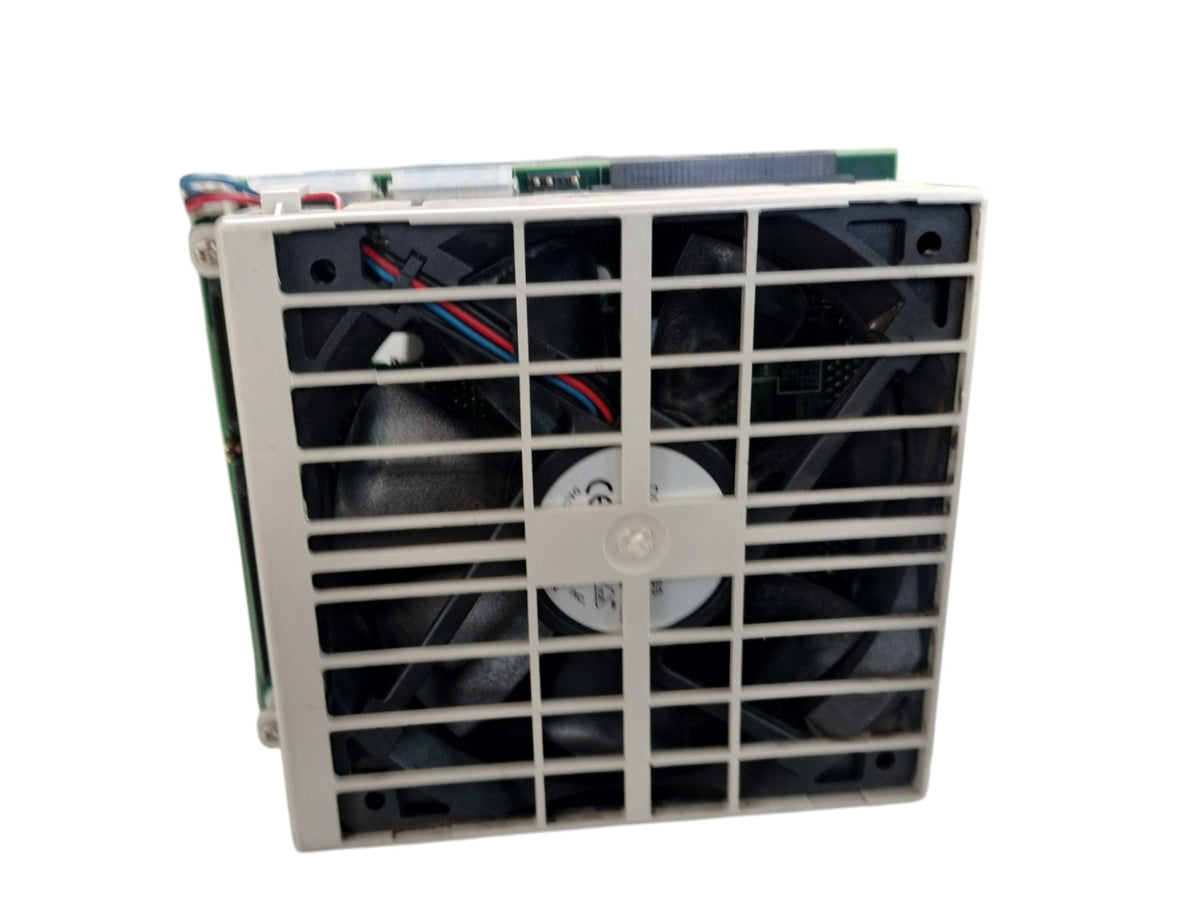

• Cooling System: Detachable Rear Shroud with 120mm 3-Pin Cooling Fan

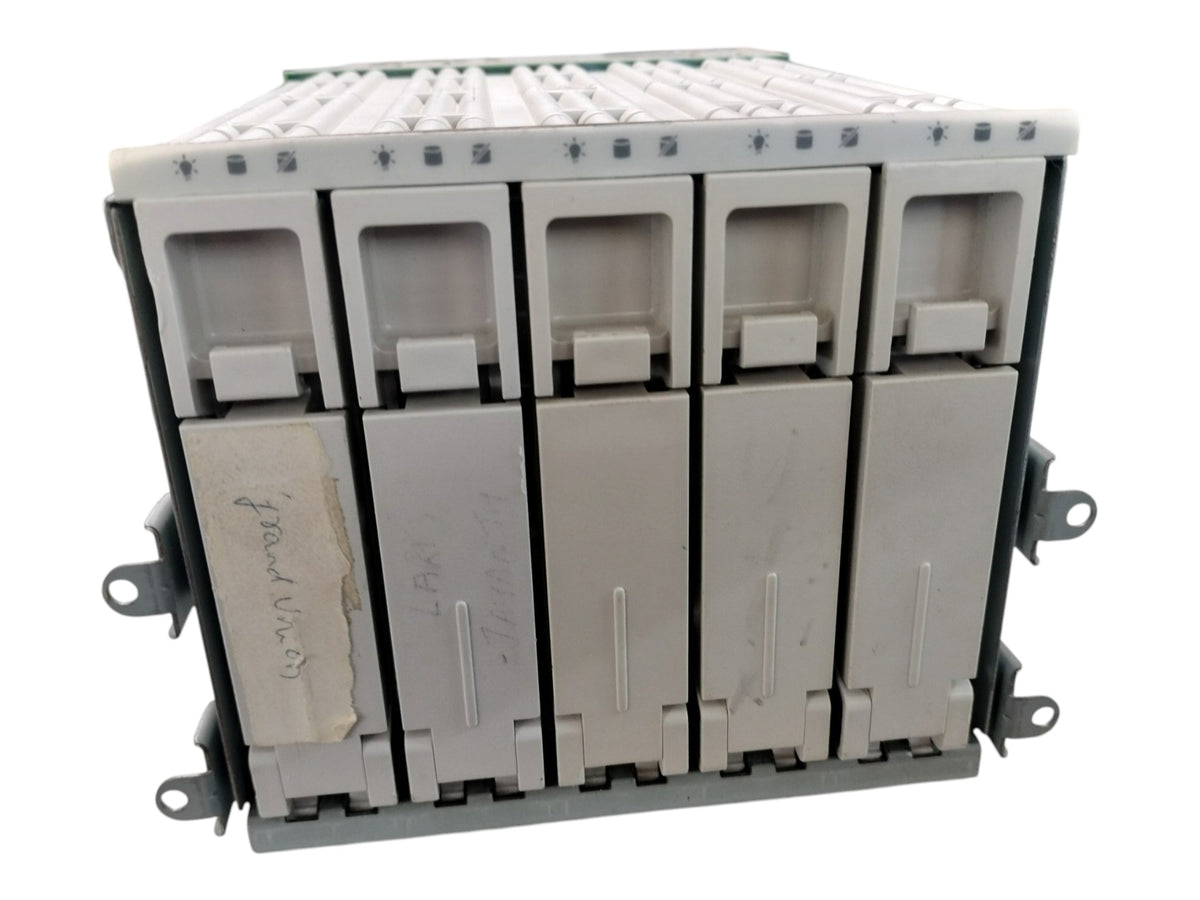

• Included Trays: Includes All 5 Original Beige 3.5" Hot-Swap Drive Caddies with Status LED Light-Pipes

• Color: Beige Faceplates / Gray Steel Cage

• Specific Device & System Compatibility:

  • Vintage Server Towers, Acer Altos / Pedestal Servers & Retro Sleeper Builds: Fits 3x 5.25" server bay openings (or dedicated pedestal server bays) to provide 5 hot-swappable 80-pin SCA Ultra160 / Ultra320 SCSI drive bays via standard 68-pin SCSI ribbon cables and 4-pin Molex power.
