AMD ATI Radeon HD 6350 512MB PCIe x16 Video Card ATI-102-C09003(B) DMS-59 Full

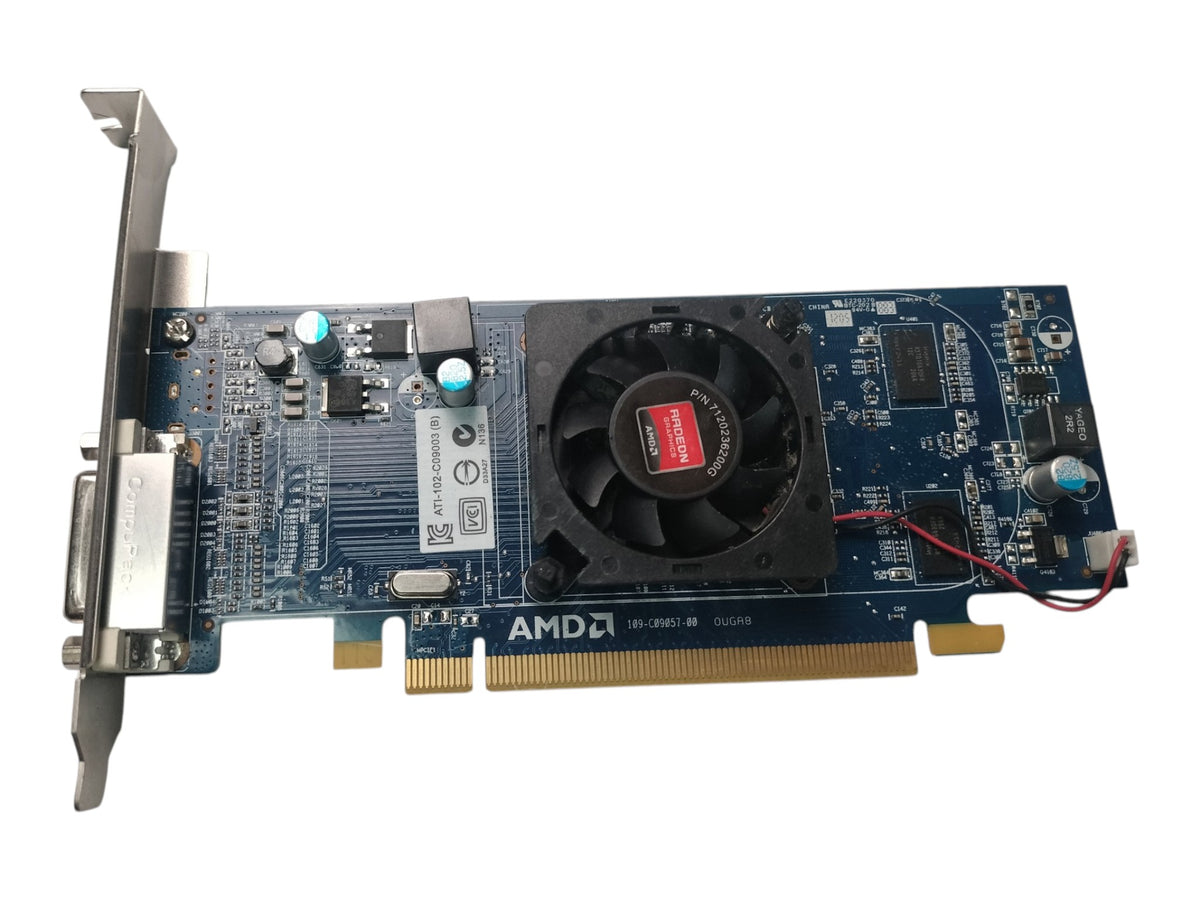

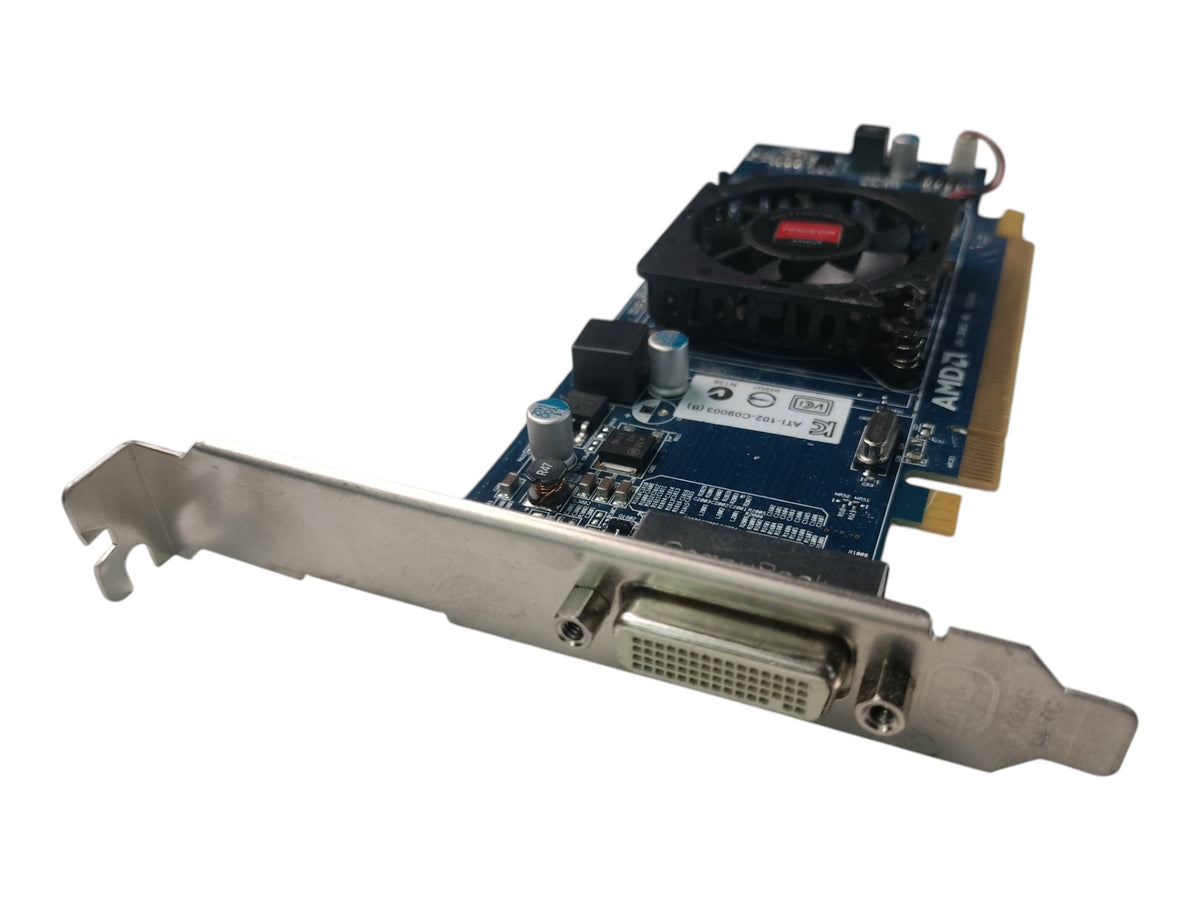

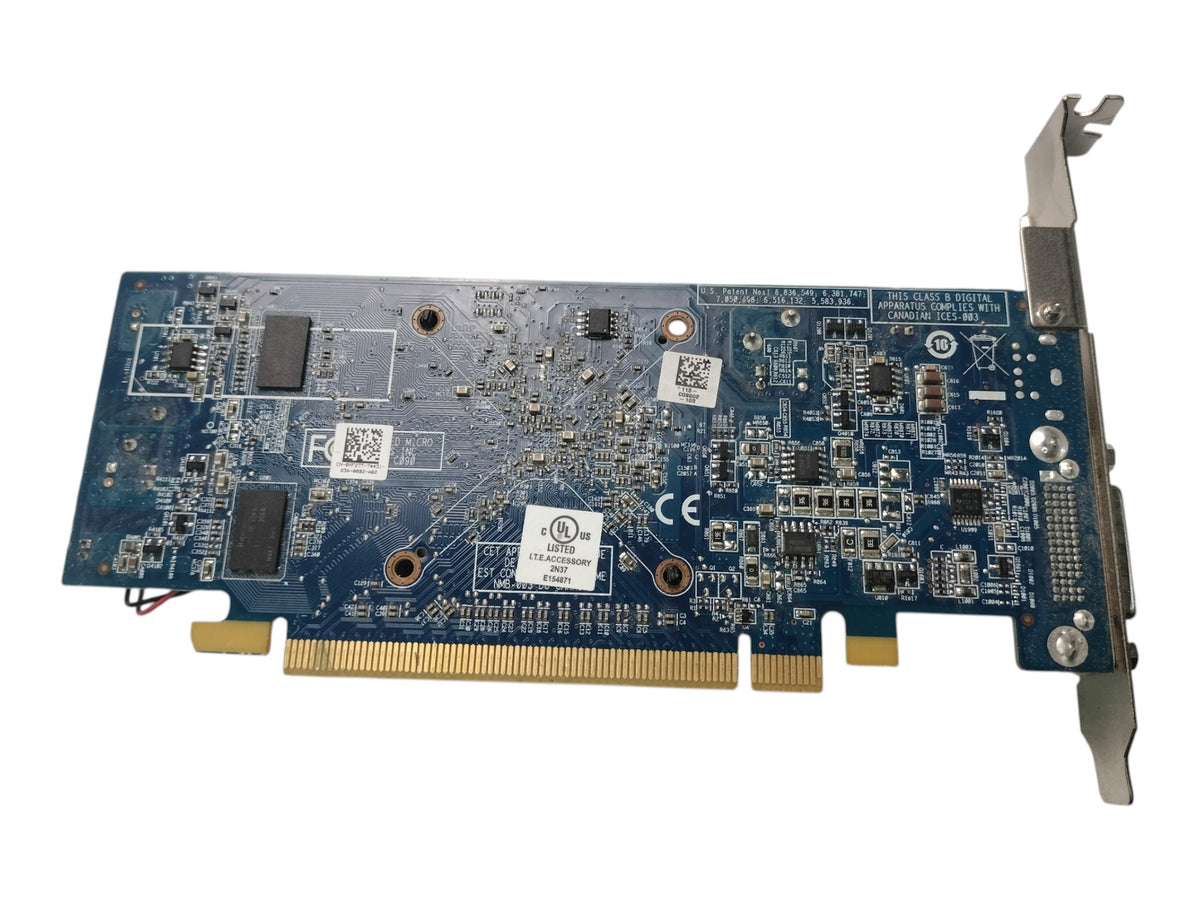

Condition Used (Genuine OEM AMD / ATI Radeon HD 6350 512MB DDR3 PCIe x16 Graphics Card, Model ATI-102-C09003(B), PCB P/N 109-C09057-00 OUGA8, equipped with a Full-Height / Standard Profile bracket and active cooling fan [P/N 7120236200G]. Clean working pull in great physical condition with bright gold PCIe edge pins as pictured. Note: Features a 59-pin DMS-59 dual-display output port [requires a standard DMS-59 to Dual VGA or Dual DVI splitter cable, not included].)

ITEM SPECIFICS

• Brand / Chipset Manufacturer: AMD / ATI Technologies

• GPU Model: ATI Radeon HD 6350 (Cedar OEM / Cross-Ref HD 5450)

• Model / Regulatory Number: ATI-102-C09003(B) (C090 / D33A27 / N136)

• PCB Part Number (MPN): 109-C09057-00 (OUGA8 / Fan P/N 7120236200G / Cross-Ref Dell 01CX3M / 1CX3M)

• Memory Size: 512 MB

• Memory Type: DDR3 SDRAM (4x Hynix DRAM chips — 2 front, 2 back)

• Compatible Slot: PCI Express 2.1 x16 (PCIe x16)

• Connector / Video Output: 1x DMS-59 (59-Pin Dual Monitor Solution Port — supports Dual VGA or Dual DVI via splitter cable)

• Bracket Size: Full-Height / Standard Profile Bracket Installed (Low-Profile PCB footprint)

• Cooling Component: Active Heatsink & 2-Pin Cooling Fan (P/N 7120236200G)

• Power Requirement: Slot-Powered (No external PCIe power cable needed)
