Console: A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation A PS/2 mouse A PS/2 keyboard
The following equipment must be installed on each computer: A VGA, SVGA or Multisync card A 6-pin mini DIN (PS/2) port Either a 6-pin mini DIN (PS/2) keyboard port, or a 5-pin DIN (AT) keyboard port with adapter

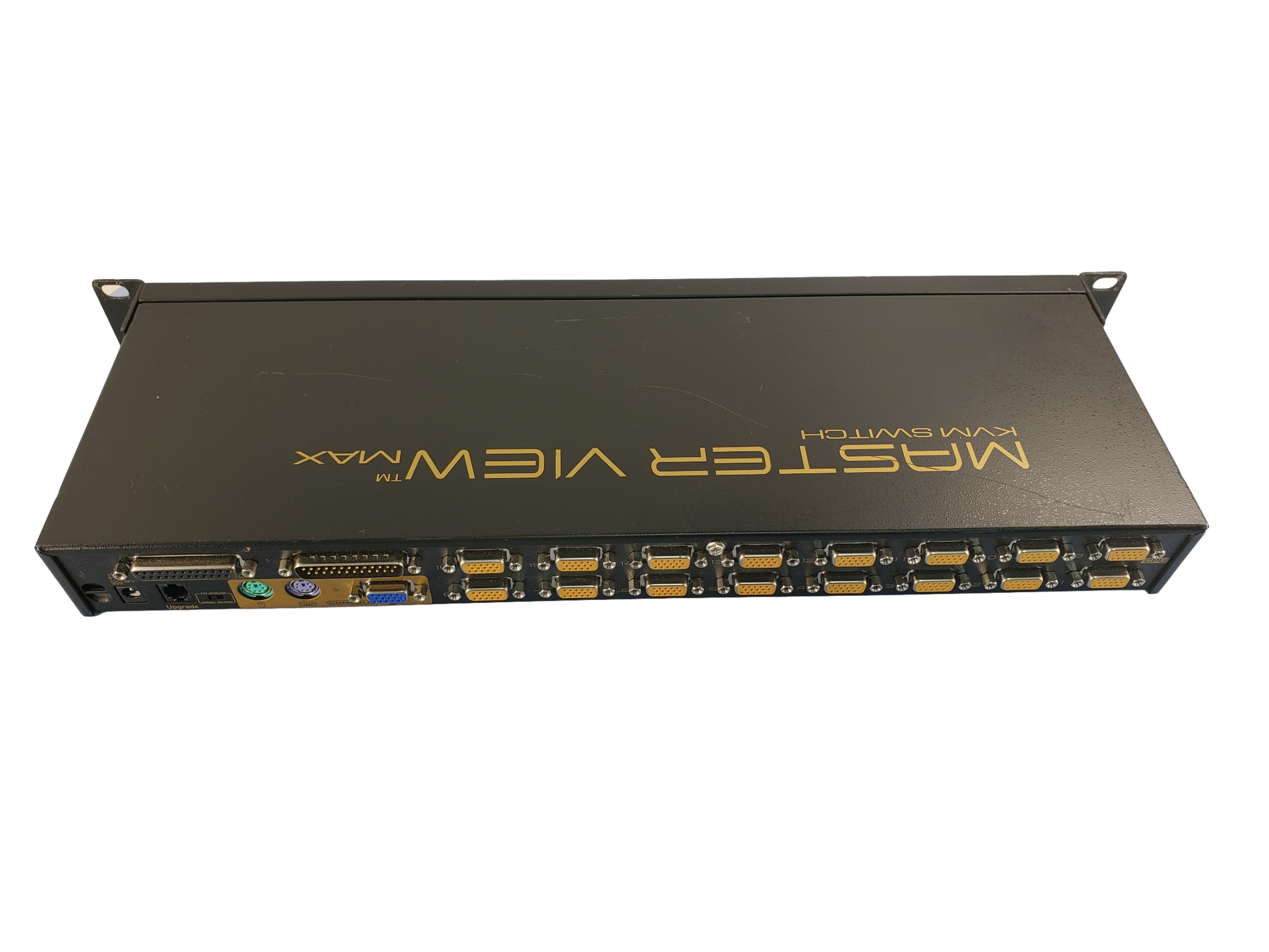

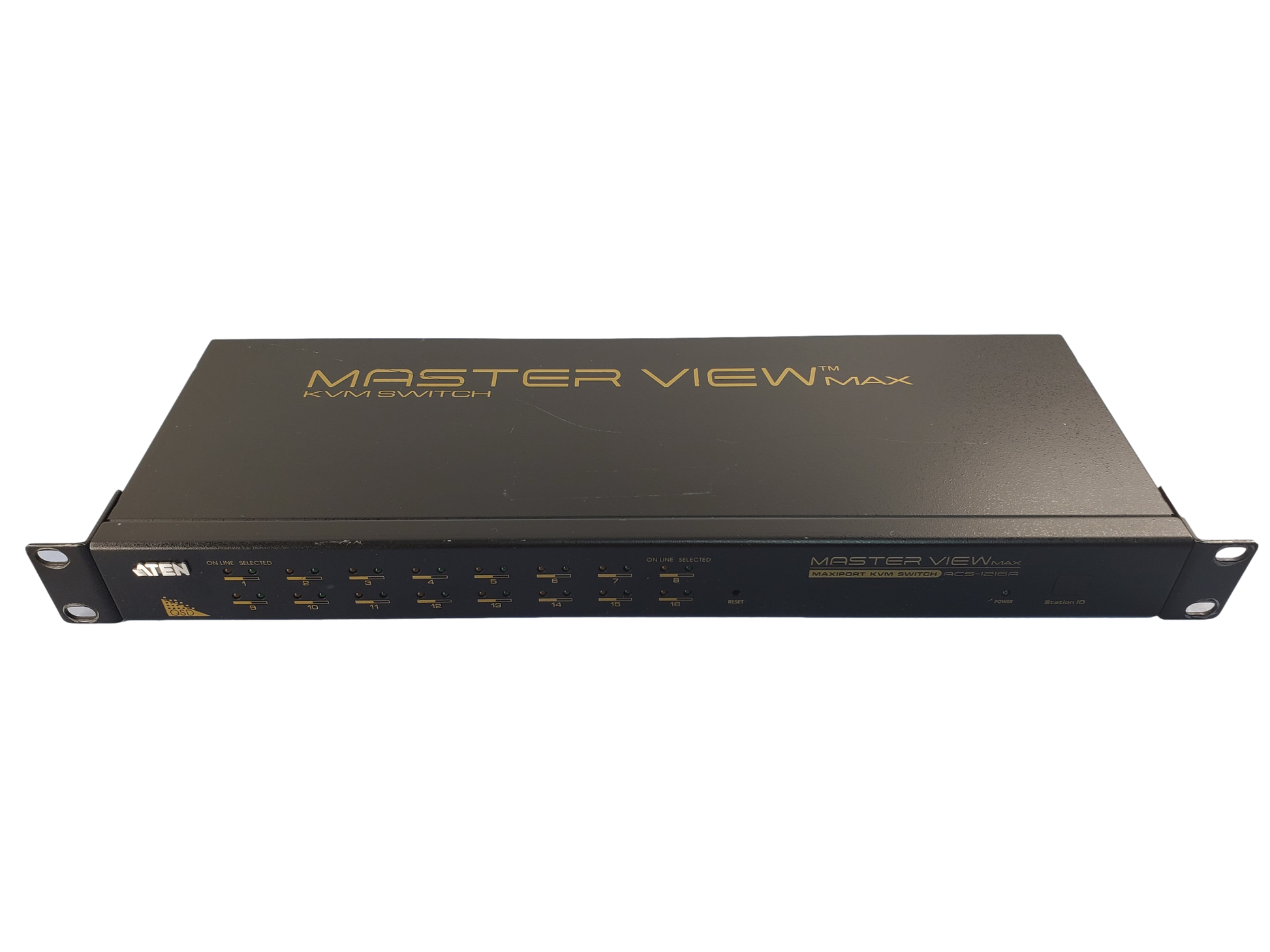

ATEN ACS1216A Features:

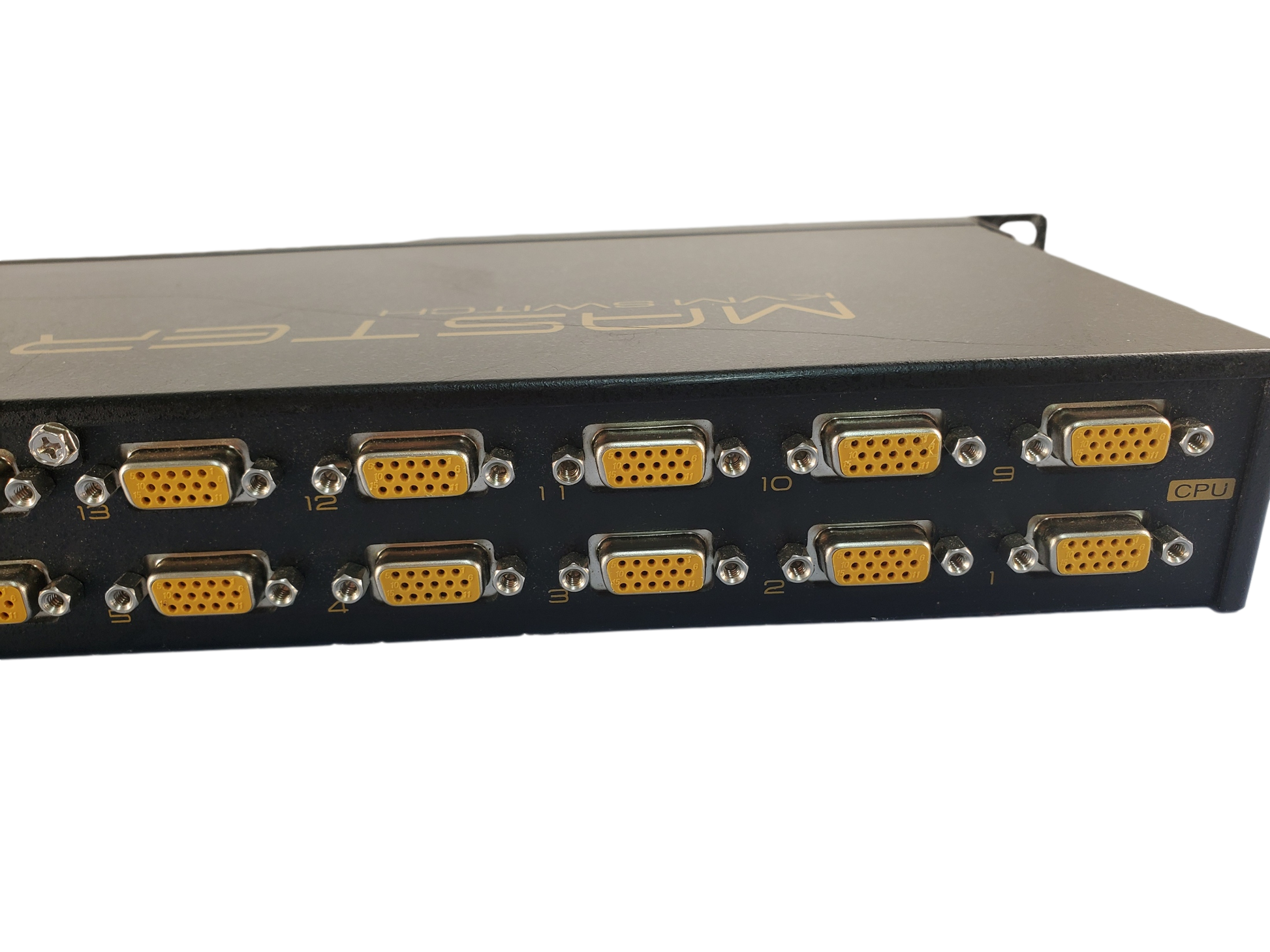

A single console controls up to 16 computers

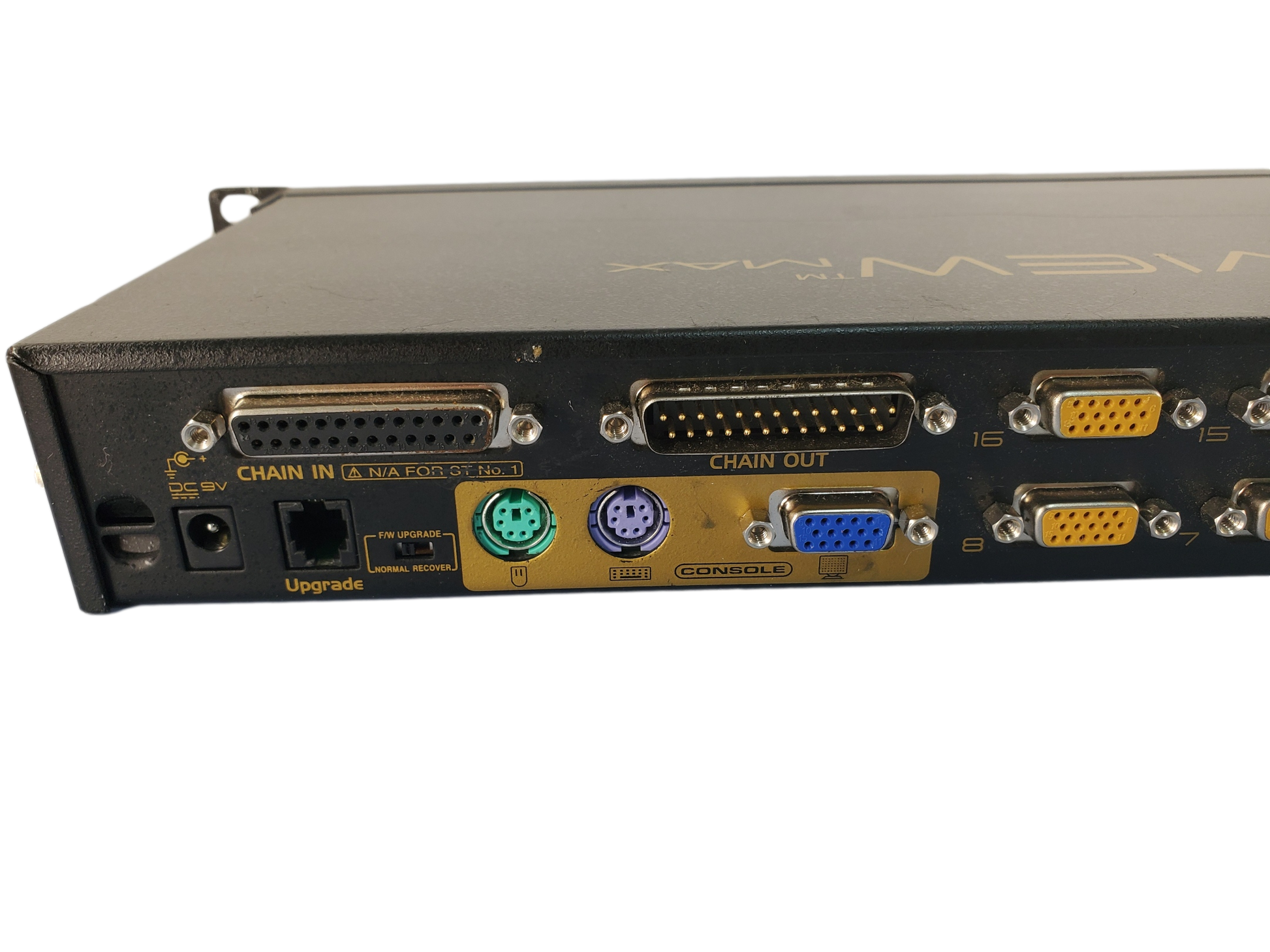

Daisy chain up To 31 additional units - Control up to 512 computers from a single console
Auto-Sensing of station position on daisy chained installations - No need for manual DIP switch setting
Front panel LED indicates station position port names automatically reconfigured when station sequence is changed
No software required
Convenient computer selection via intuitive on screen display (OSD) menus
AutoScan feature for monitoring user-selected computers
Hot pluggable - Add or remove computers without having to power down the switch
Two level password security - Only authorized users view and control the computers - Up to four users plus an administrator -
Separate profiles for each
Two level logout - Manual and timed
Firmware upgrade through flash ROM
PS/2 keyboard and mouse emulation - Computers boot even when the console focus is elsewhere
Supports PS/2 compatible mice, Microsoft Intellimouse Explorer, Logitech FirstMouse+
Superior video quality - Supports resolutions up to 1920 x 1440
