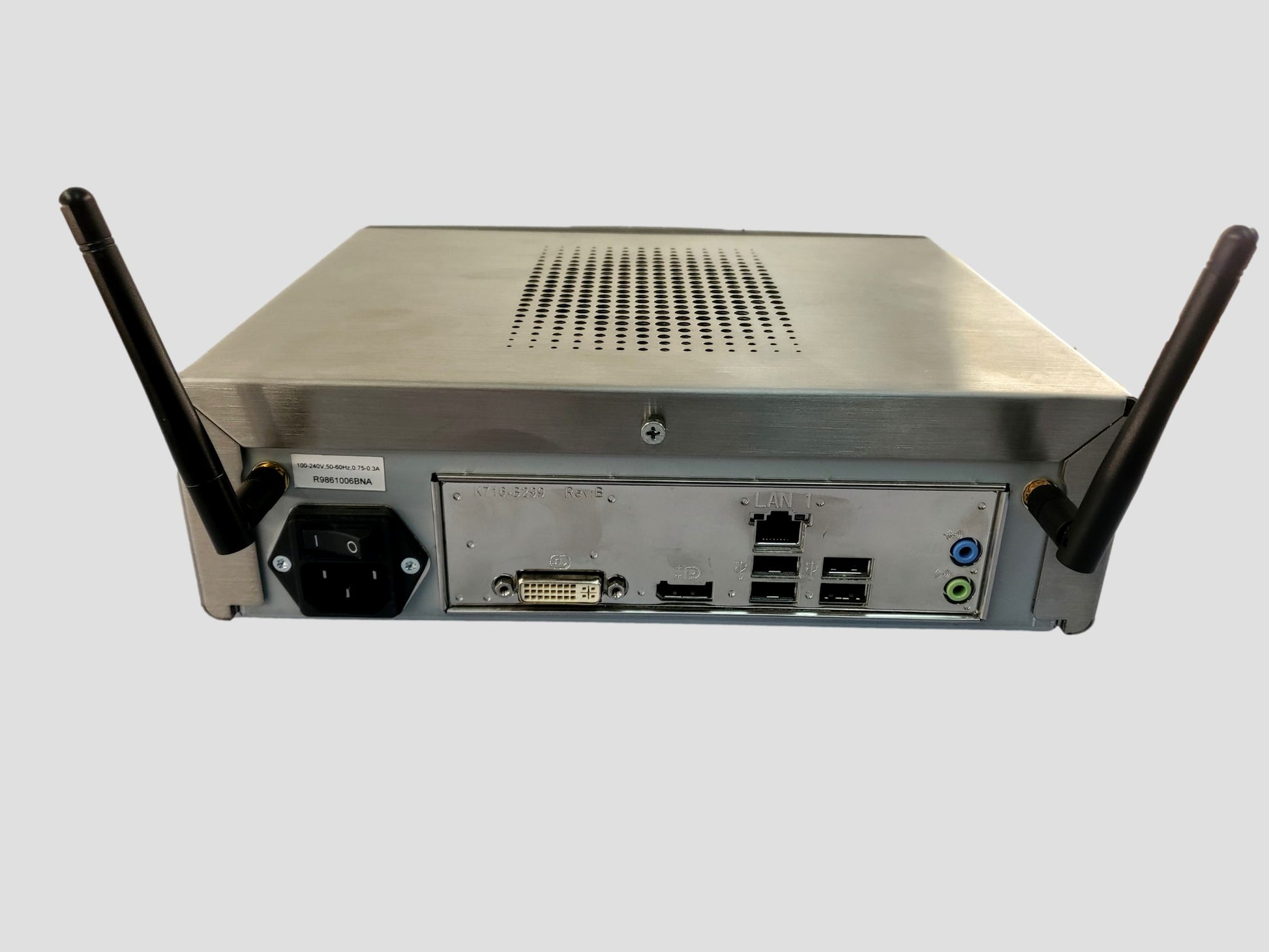

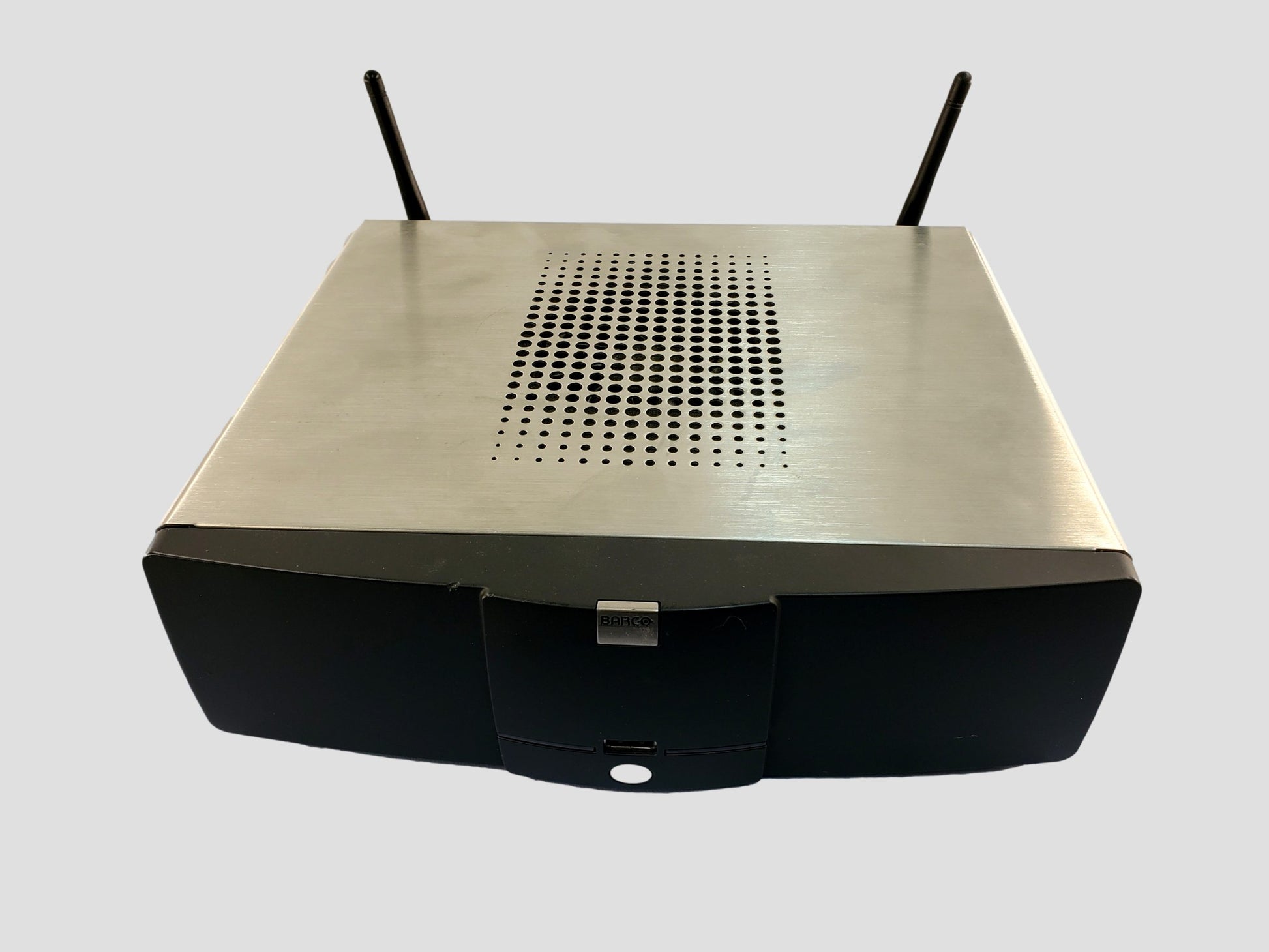

Barco Clickshare CSC-1 Wireless Presentation System R9861006BNA
Barco Clickshare CSC-1 Wireless Presentation System R9861006BNA
Regular price
$74.99 USD
Regular price
Sale price
$74.99 USD
Unit price
/
per
Couldn't load pickup availability
Barco R9861006BNA Specs
| Video Output | DisplayPort, Single link DVII VGA (via included converter, highest resolutions only with reduced blanking) |
| Frame Rate | Up to 30 fps (from software version V1.03.00.0001 onwards) |
| Output Resolutions | DVI WUXGA (1920x 1200) DisplayPort panoramic format (2560 x 1600) available from ClickShare CSC Base Unit software v01.02.00.09 onwards |
| Input Resolutions | Up to 2880 x 1800 |
| Noise Level | 28 dBA maximum |
| Sources Simultaneous on Screen | 4 |
| Simultaneous Connections | 64 |
| Audio | Analog audio from ClickShare CSC Base Unit software v01.02.00.09 onwards Digital audio (embedded in DP signal) from ClickShare CSC Base Unit software v01.05.00.32 onwards |
| Compatibility | iPad, iPhone, and Android Compatibility: Available via ClickShare Presenter app for static content For iOS devices, the optional ClickShare Link and AppleTV (version 3 or higher) can be used to show dynamic content, from ClickShare CSC Base Unit software v01.02.00.09 onwards |
| Authentication Protocols | WPA2PSK |
| Encryption | AES CCMP |
| Wireless Transmission | IEEE 802.11 a/g/n |
| Wireless Data Rate | Up to 300 Mb/s |
| Reach | Maximum 100' (30 m) between ClickShare Button and ClickShare Base Unit |
| Band | 2.4 GHz and 5.0 GHz |
| Connections | 1x Ethernet LAN 4 x USB (back) 1 x USB (front) Analog line-out on mini jack socket (3.5 mm) Analog line-in on mini jack socket (3.5 mm) |
| Operating Temperature | 41 to 104°F (5 to 40°C) |
| Storage Temperature | -4 to +140°F (20 to +60°C) |
| Operating Humidity | 0 to 85% relative humidity (noncondensing) |
| Storage Humidity | 0 to 90% relative humidity (noncondensing) |
| Altitude | 9,842' (3,000 m) |
| Lifetime | MTBF = 40,000 h (90% confidence level) MTBF = 100,000 h (60% confidence level) MTBF Conditions: Environment: Ground benign Temperature: 77°F (25°C) Method: MILHDBK217F Notice 2 |
| Operating System | Windows XP/Vista/7/8/8.1 (32/64-bit) Mac OS X 10.6/10.7/10.8/10.9 Android 2.2 and later (ClickShare Presenter app) iOS 5.0 and later (ClickShare Presenter app) |
