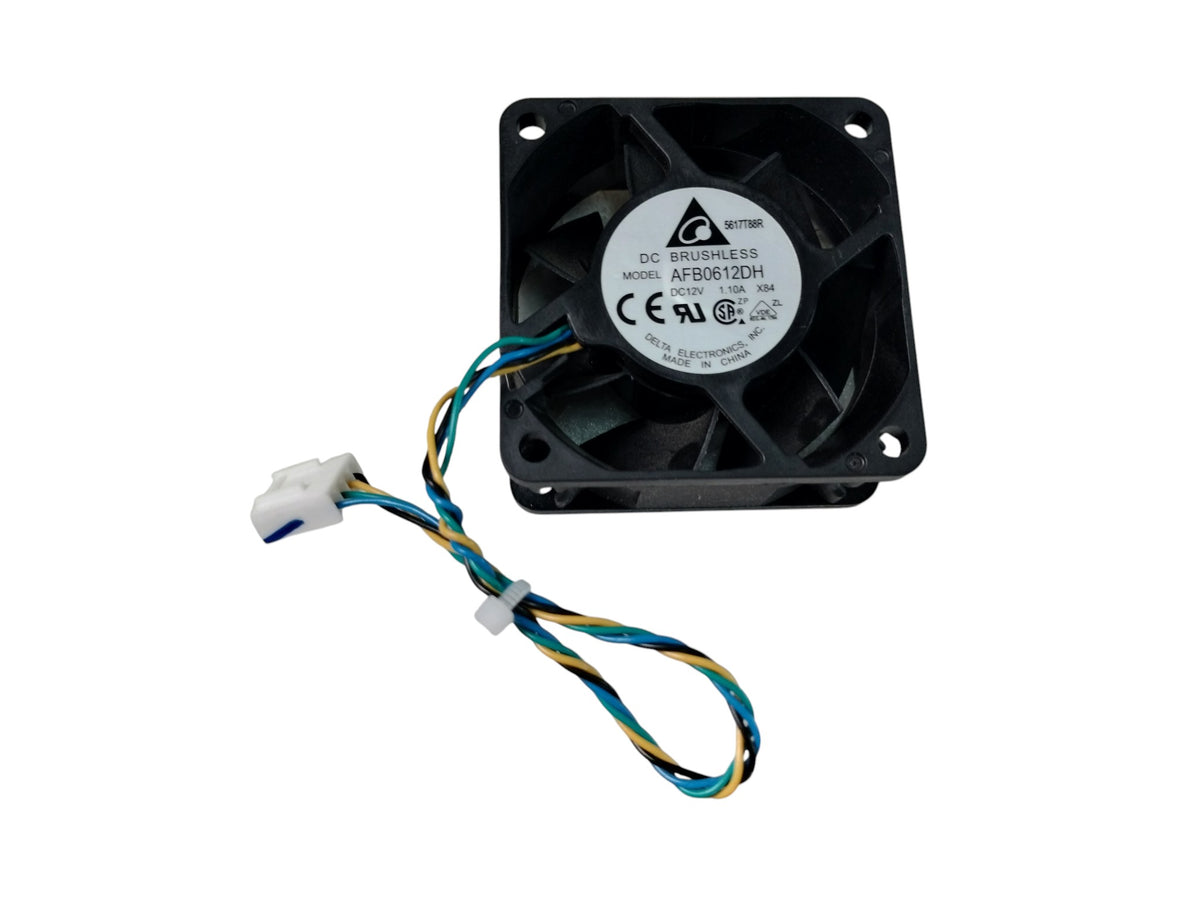

Delta Electronics AFB0612DH-X84 FHSA6025B-1663 60mm x 25mm 12V 1.10A 4-Pin Fan

Title

Delta Electronics AFB0612DH-X84 FHSA6025B-1663 60mm x 25mm 12V 1.10A 4-Pin Fan (78 characters)

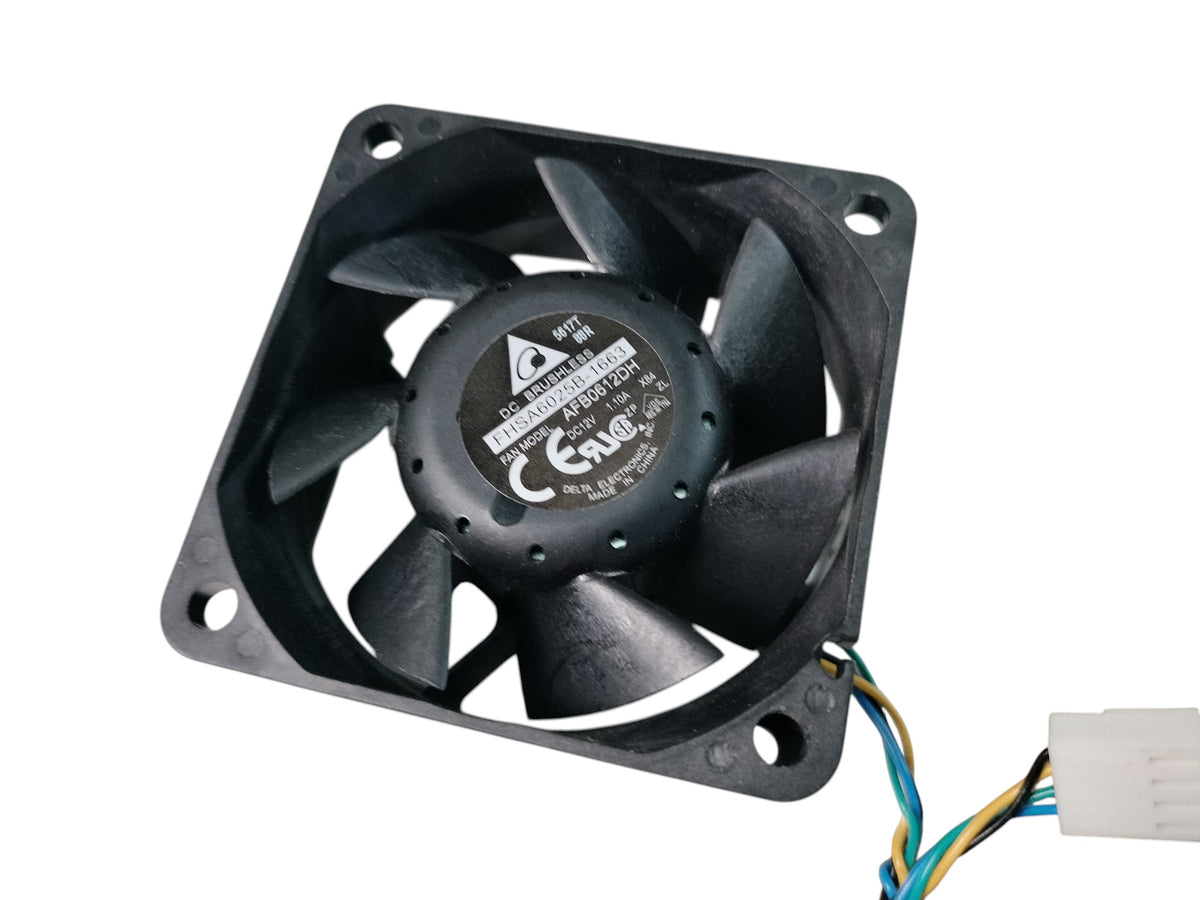

Condition Used (Good condition. Genuine Delta Electronics Inc. 60mm x 60mm x 25mm high-output DC brushless axial cooling fan, Model AFB0612DH (X84), OEM Part Number FHSA6025B-1663, Date/Lot Code 5617T88R (ZP / ZL). Rated at DC12V 1.10A. Features a black 60x25mm square frame, 7-blade high-static-pressure impeller, and a braided 4-wire PWM power lead (black, yellow, green, blue) terminated with a white 4-pin locking motherboard/board connector. Frame, blades, wiring, and 4-pin connector are intact with minor cosmetic surface dust from prior removal as pictured. Fan only; mounting screws not included. Made in China. Sold AS-IS.)

ITEM SPECIFICS

• Brand / Manufacturer: Delta Electronics, Inc.

• Manufacturer Model (MPN): AFB0612DH / AFB0612DH-X84

• OEM Part Number (P/N): FHSA6025B-1663

• Factory / Lot Codes: 5617T88R / X84 / ZP / ZL

• Fan Size / Dimensions: 60mm x 60mm x 25mm (6025 Standard Profile, deduced from AFB06 / 6025B)

• Motor / Bearing Type: DC Brushless (Dual Ball Bearing)

• Power Rating: DC 12V, 1.10A (~13.2W High-Output / ~9,000 RPM)

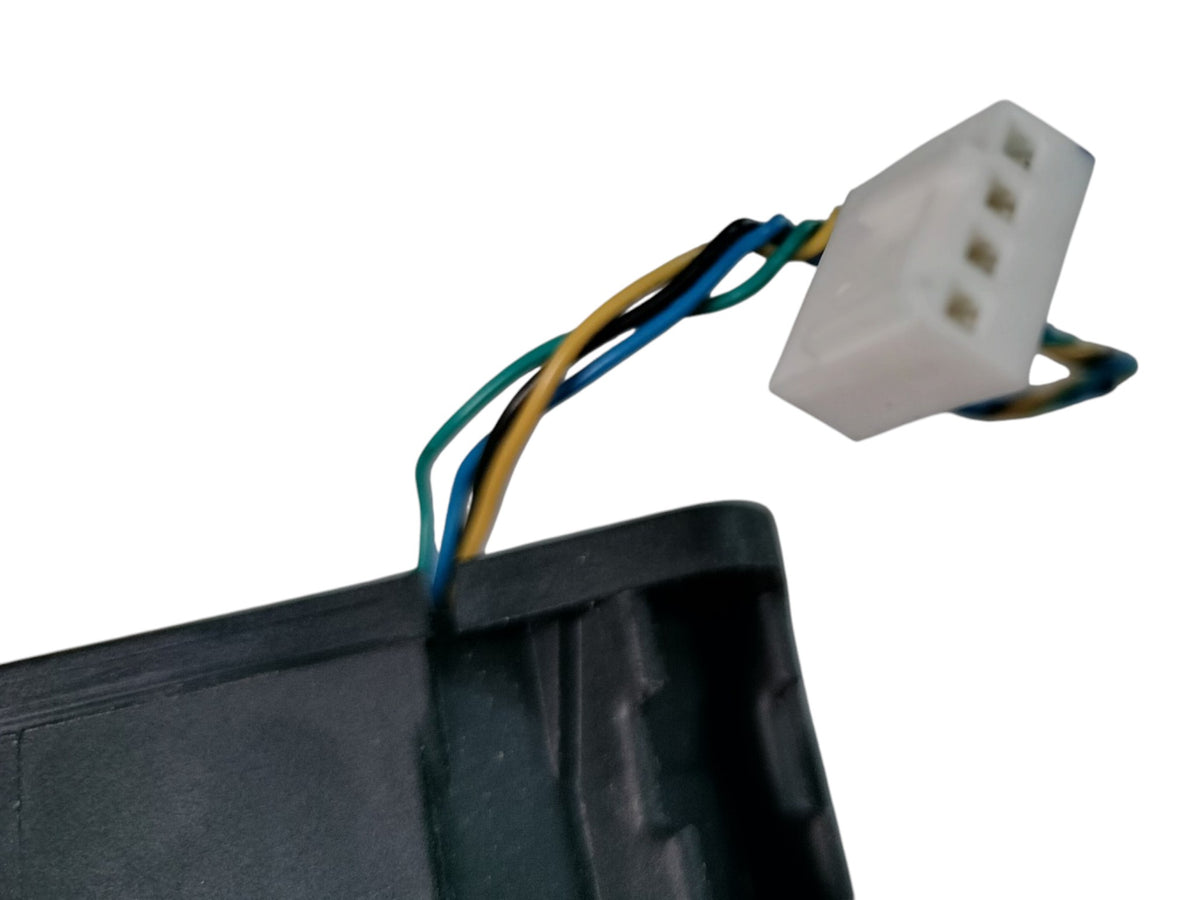

• Power Connector: White 4-Pin PWM Locking Header (4-Wire: Black, Yellow, Green, Blue)

• Color: Black

• Country of Manufacture: Made in China

• Specific Device & System Compatibility:

  • Servers, Toshiba POS / Kiosk CPU Coolers, Telecom & Industrial Equipment: Designed as a high-airflow 60mm x 25mm 12V 1.10A 4-pin PWM replacement fan for Toshiba/IBM SurePOS & self-checkout CPU heatsinks (utilizing OEM part FHSA6025B-1663), 1U/2U rackmount servers, enterprise network switches, RAID storage arrays, and high-power electronics enclosures.
