Digi Neo 4p PCIe HiPro IBM 4-Port Serial PCIe Card 46K6734 50001341-05

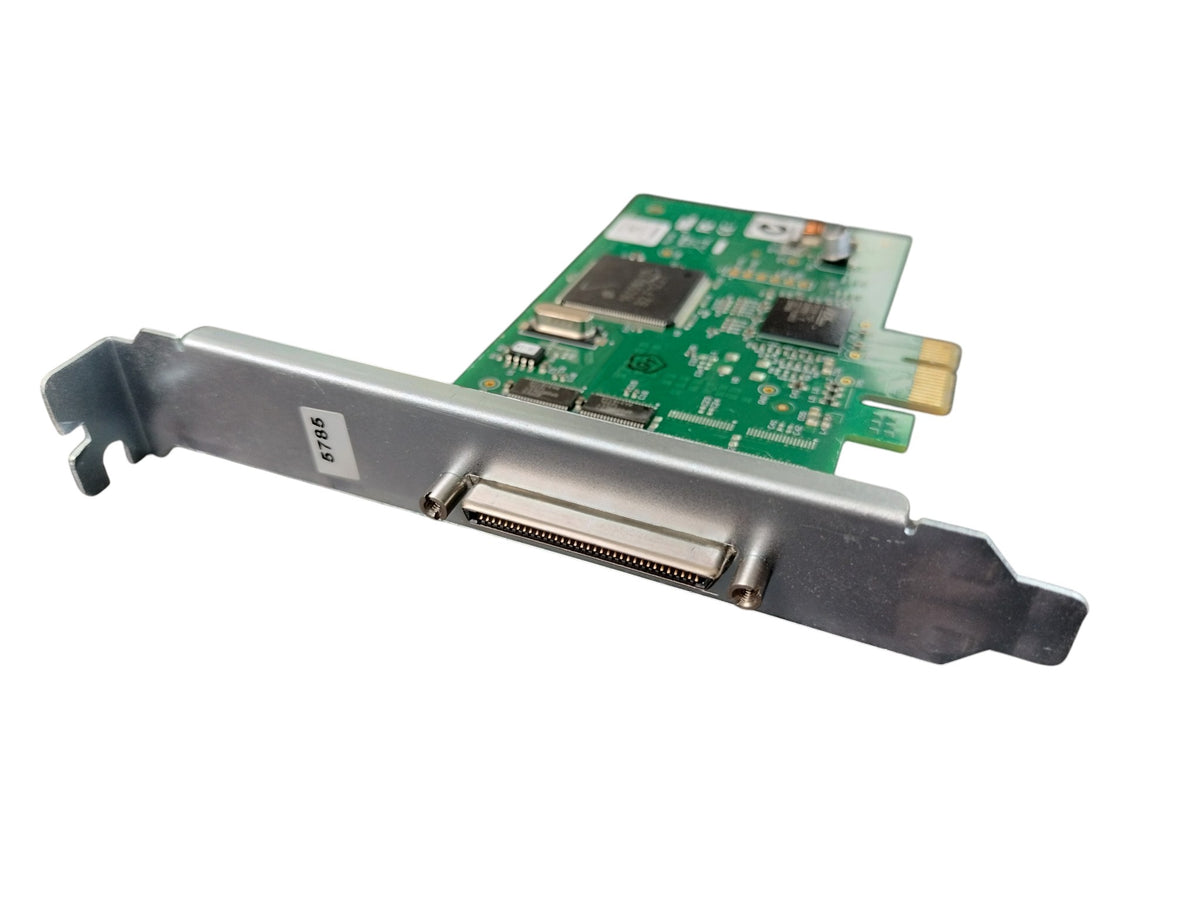

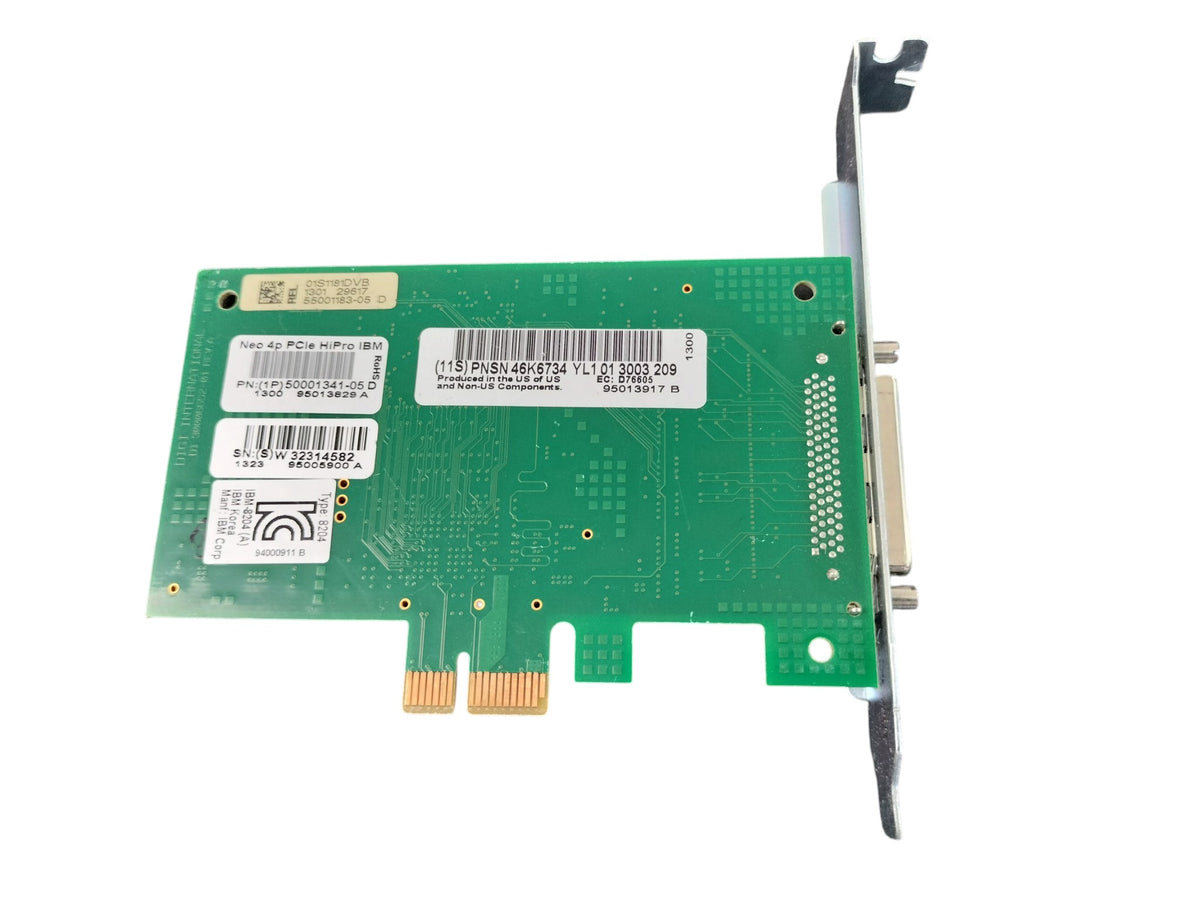

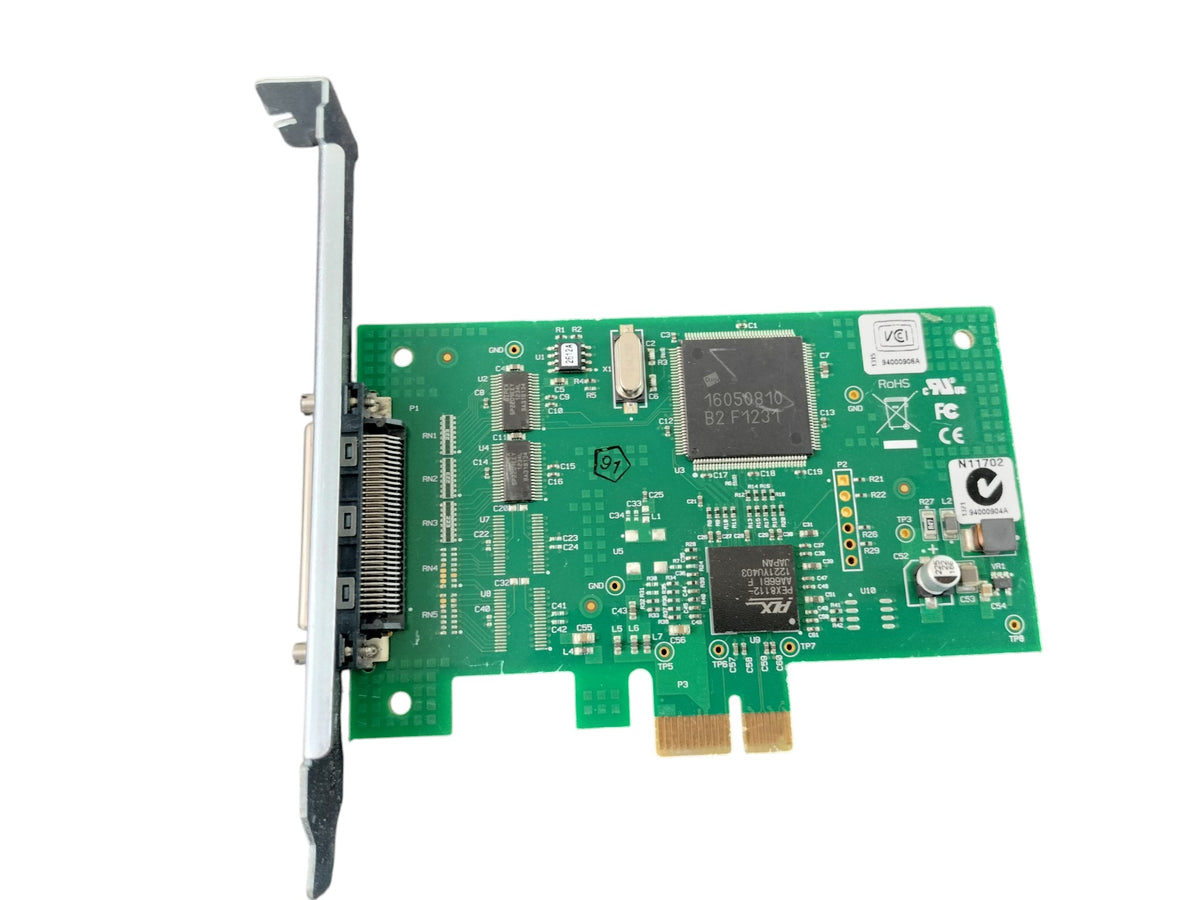

Condition Used (Good condition. Genuine OEM Digi International Neo 4-port multi-port serial PCI Express controller card manufactured for IBM, Part Number 46K6734 (P/N 50001341-05 D), FRU / Sub P/N 95013629 A, Serial Number W32314582. Digi PCB Part Number: 55001183-05 D / 30022052-01 REV A. Model Name: Neo 4p PCIe HiPro IBM / IBM-8204 (A) Type 8204. Features PCIe x1 host interface, PLX PEX8112 PCIe-to-PCI bridge chipset, internal 40-pin header port, and one high-density 68-pin female VHDCI connector output for breakout cables. Attached with a full-height PCI bracket. Green circuit board, gold connector contacts, and mounting bracket are clean and intact with minor cosmetic surface wear from prior deployment. Sold AS-IS.)

ITEM SPECIFICS

• Brand / Manufacturer: Digi International / IBM

• IBM Part Number (P/N): 46K6734 / 50001341-05 D

• IBM FRU / Sub Part Number: 95013629 A / 95005900 A

• Digi Model Name: Neo 4p PCIe HiPro IBM (Digi Neo 4-Port)

• Digi Part Number: 55001183-05 D / 30022052-01

• IBM Type / Model: Type 8204 / IBM-8204 (A)

• Serial Number (S/N): W32314582

• EC Level: D76605

• Interface / Bus Type: PCI Express x1 (PCIe x1)

• External Connectors: 1x 68-Pin VHDCI Female Multi-Port Serial Expansion Port (Requires VHDCI Breakout Cable to 4x DB9/DB25)

• Form Factor: Low-Profile PCB with Full-Height Metal Mounting Bracket Attached

• Color: Green PCB w/ Silver Bracket

• Country of Manufacture: Manufactured in Korea for IBM Corp.

• Specific Device Compatibility:

  • IBM System x, Power Systems & Enterprise Servers: Compatible with IBM System x, Power Systems, SurePOS systems, and general PCIe desktop/server platforms connecting up to 4 multi-port RS-232 serial devices via a 68-pin VHDCI serial breakout cable.
