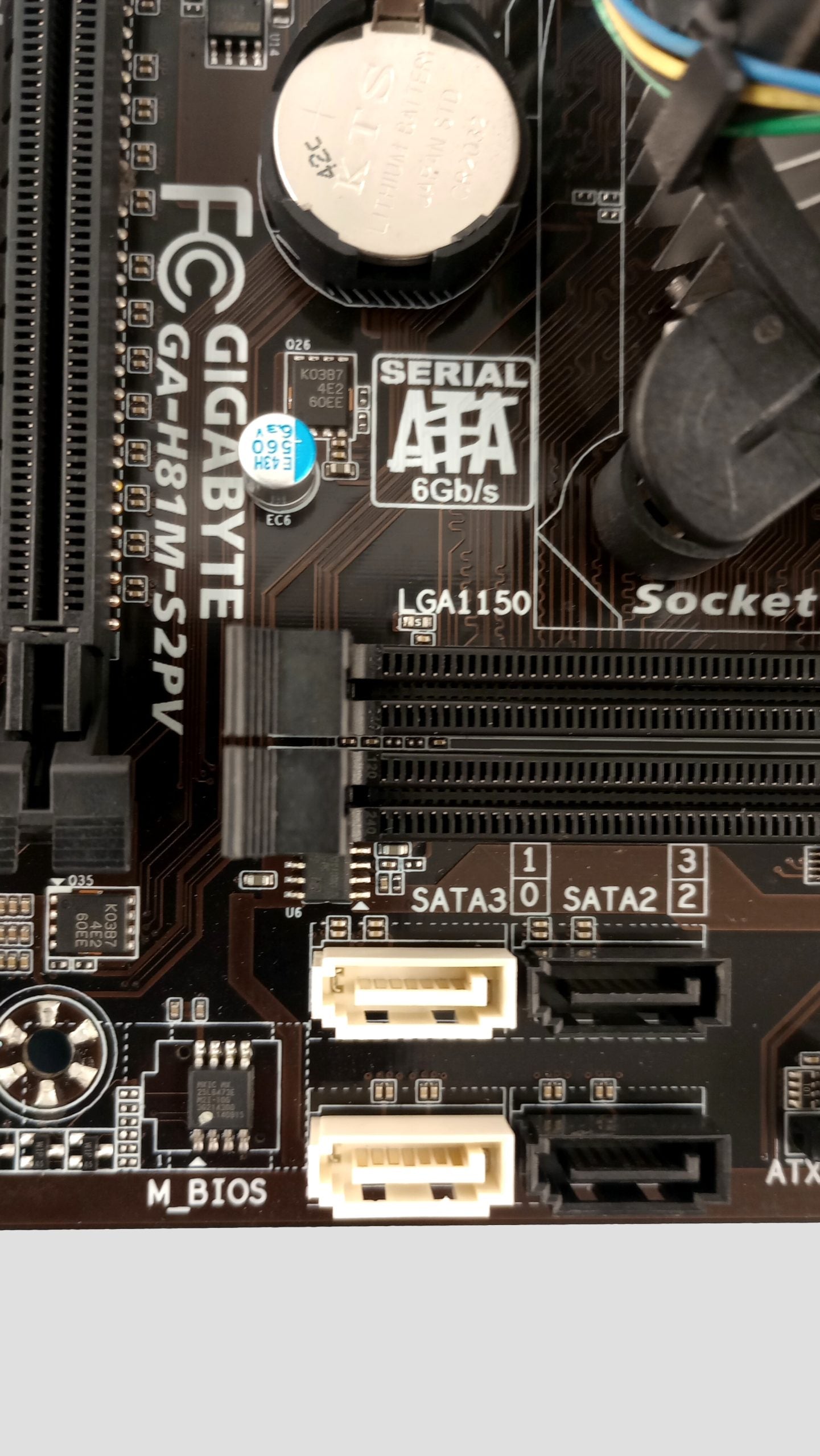

Gigabyte GA-H81M-S2PV Desktop Motherboard Intel H81 Chipset LGA1150

Product Type - Motherboard - micro ATX

Chipset Type - Intel H81

Processor Socket - LGA1150 Socket

Max Processors Qty - 1

Compatible Processors - Pentium, Celeron, Core i5, Core i3, Core i7

Max Size - 16 GB

Technology - DDR3

Bus Clock - 1600 MHz, 1333 MHz

Supported RAM Integrity Check - Non-ECC

Features - Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Type - HD Audio (8-channel)

Audio Codec - Realtek ALC887

Compliant Standards - High Definition Audio

Network Interfaces - Gigabit Ethernet

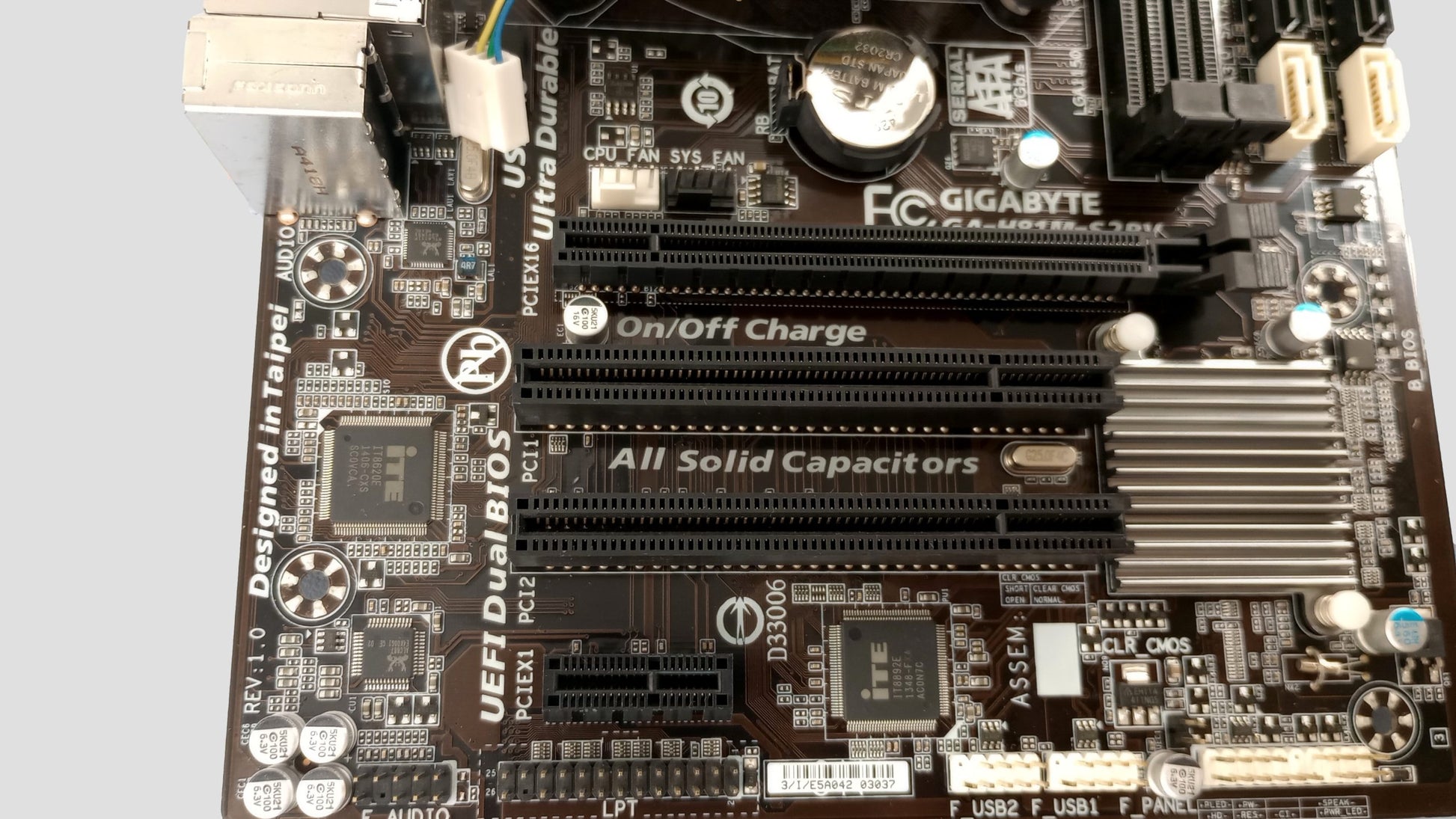

Expansion Slots - 2 x DIMM 240-pin (1.5 V) 1 x PCIe 2.0 x1 1 x PCIe 2.0 x16 2 x PCI

Storage Interfaces - SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices

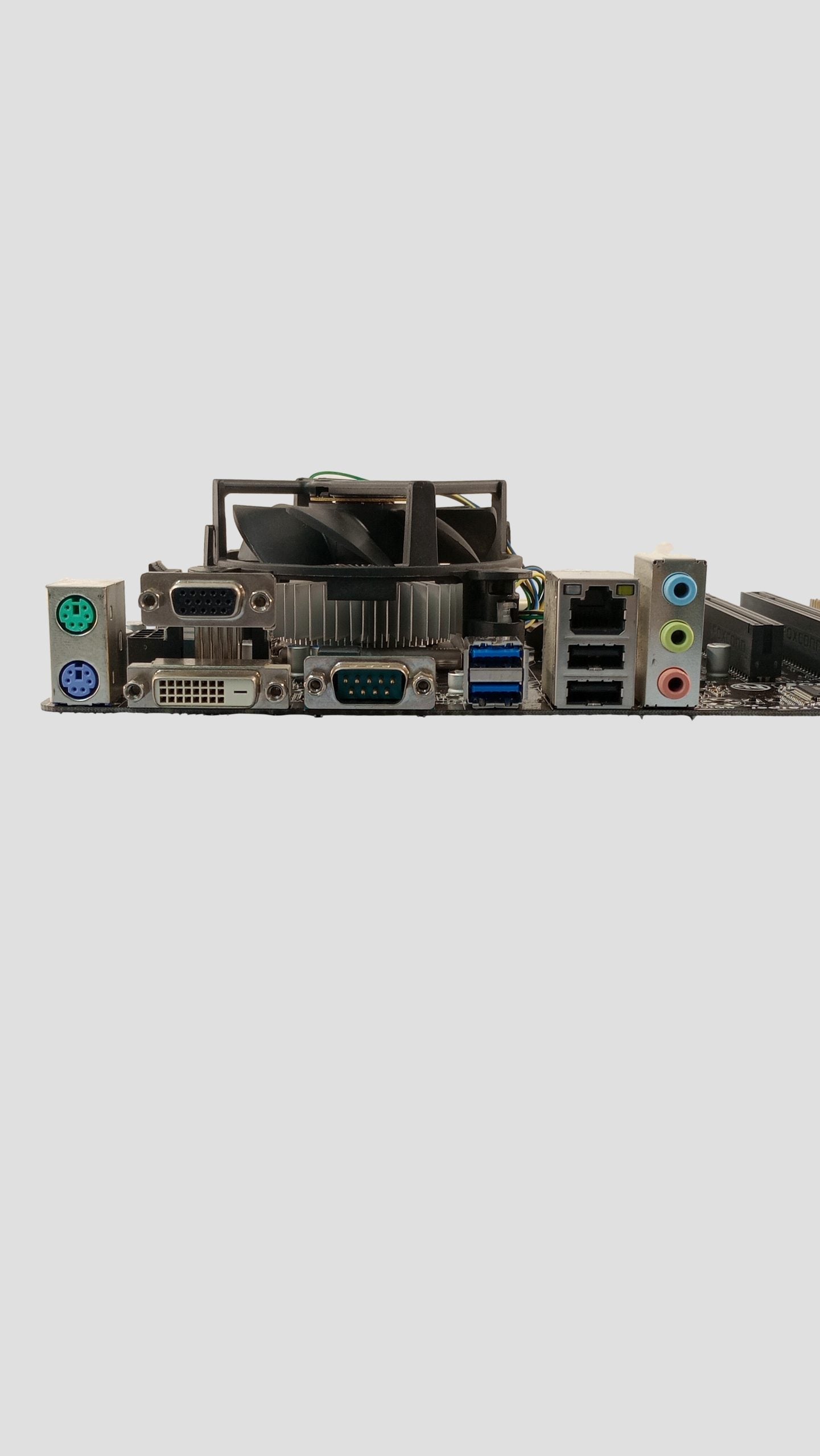

Interfaces - 1 x DVI-D 1 x VGA 1 x LAN (Gigabit Ethernet) 2 x USB 2.0 2 x USB 3.0 1 x PS/2 keyboard 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x PS/2 mouse 1 x serial

Internal Interfaces - 4 x USB 2.0 - header 1 x audio - header 1 x parallel - header

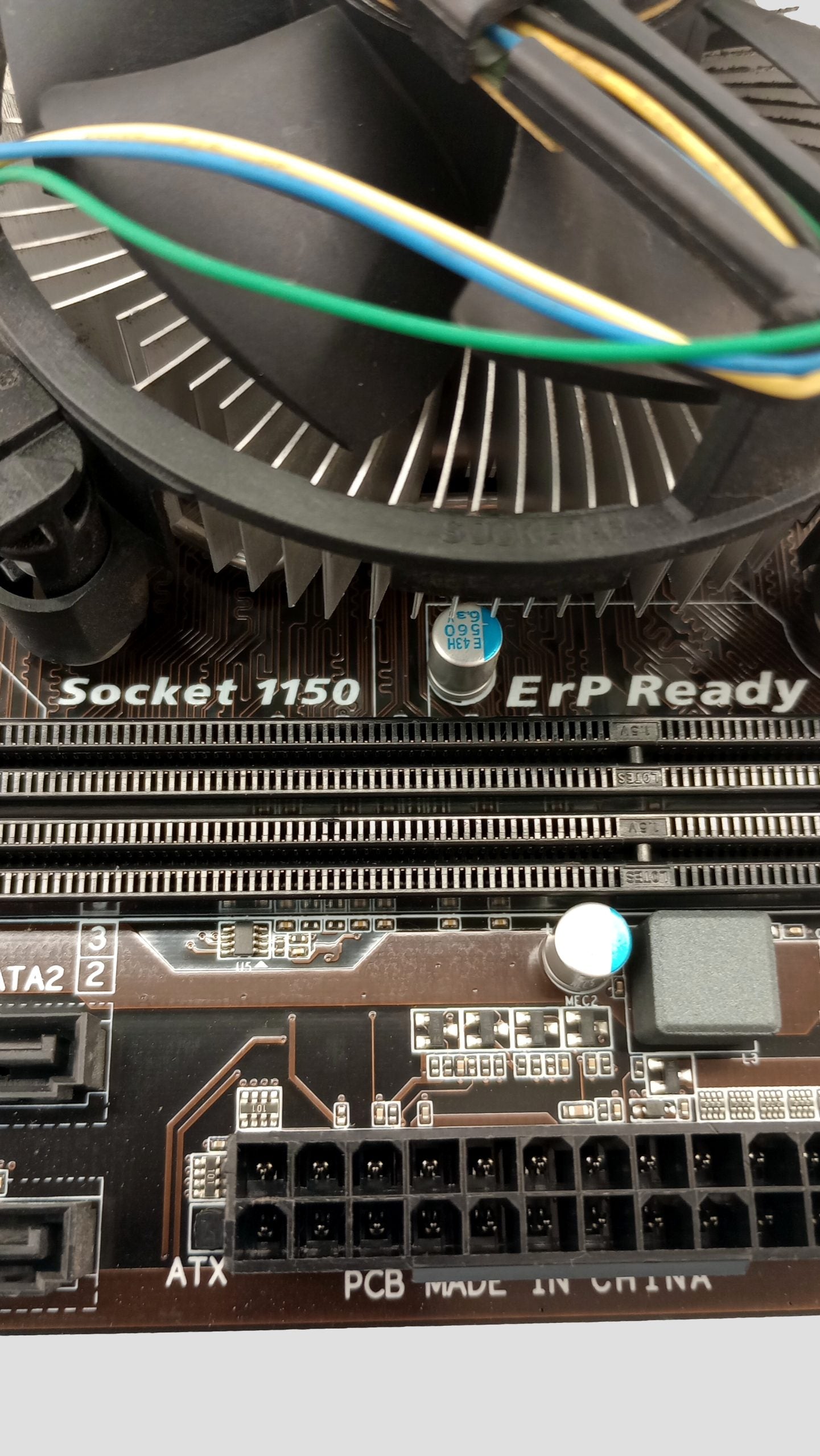

Power Connectors - 24-pin main power connector, 8-pin ATX12V connector

BIOS Type  AMI

BIOS Features  DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS

Hardware Monitoring  CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage

Hardware Features  DualBIOS, Q-Flash, All-Solid Capacitor motherboard Design, On/Off Charge, GIGABYTE LAN Optimizer, ESD Protection, Ultra Durable 4 Plus
