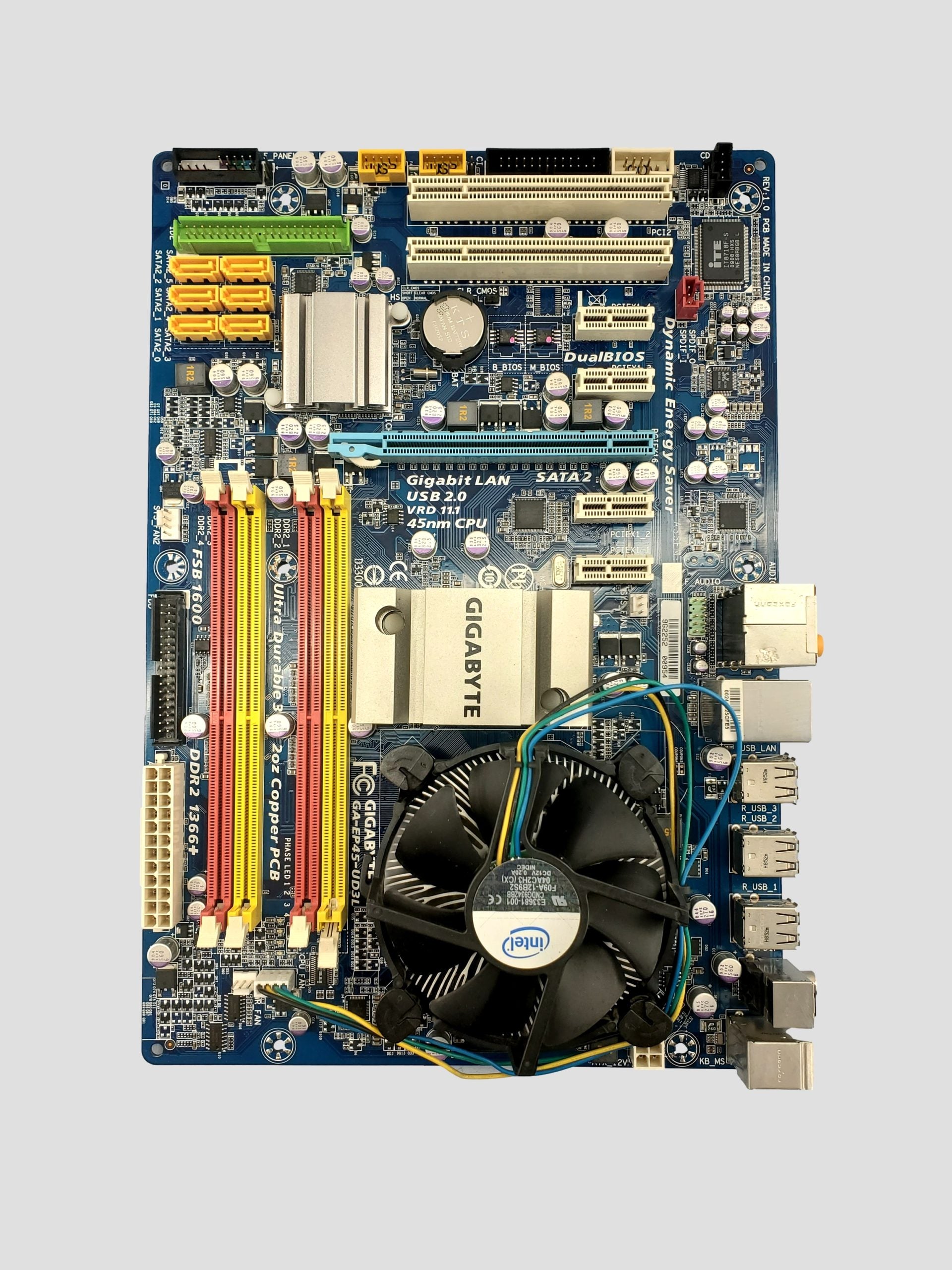

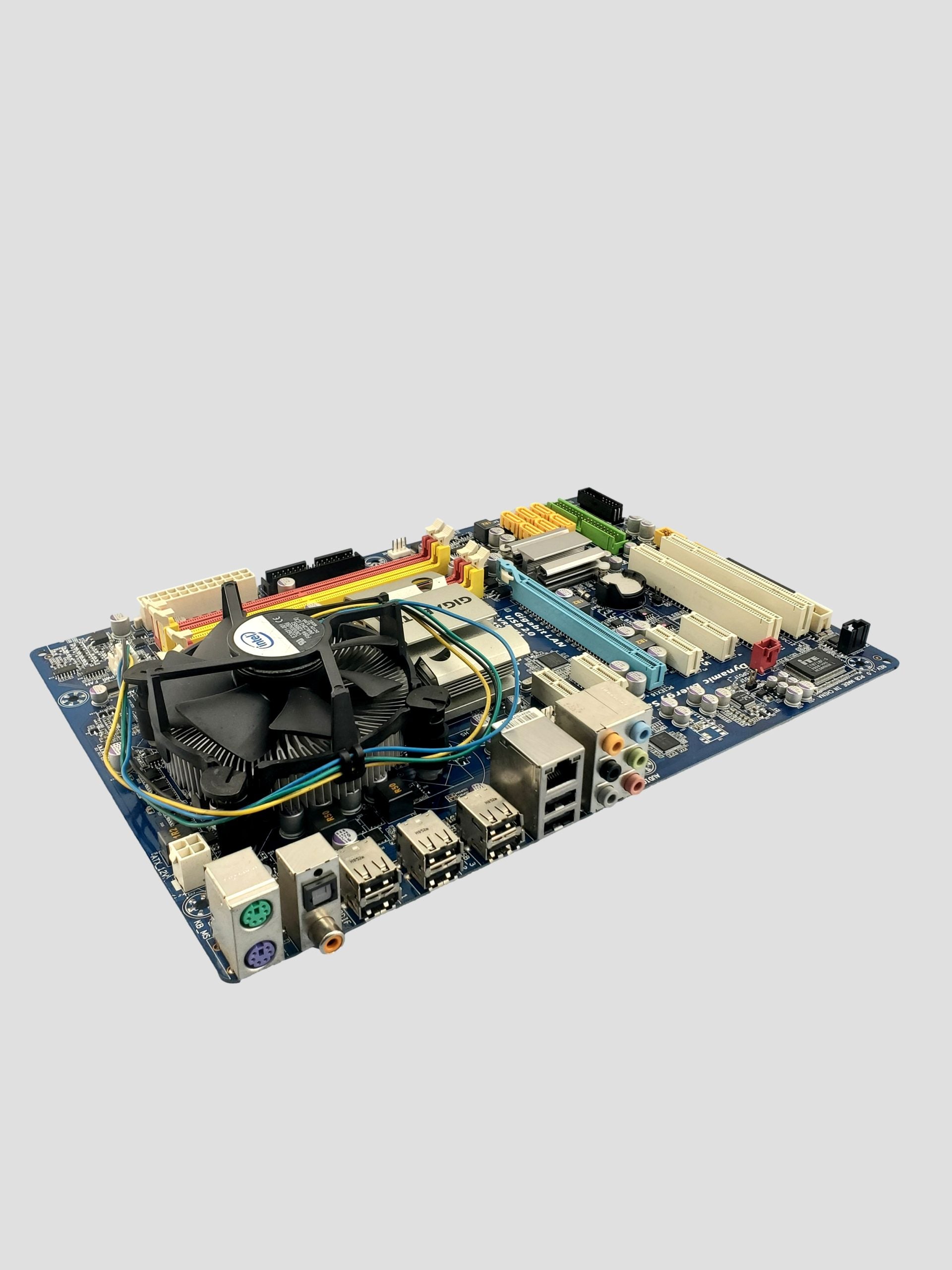

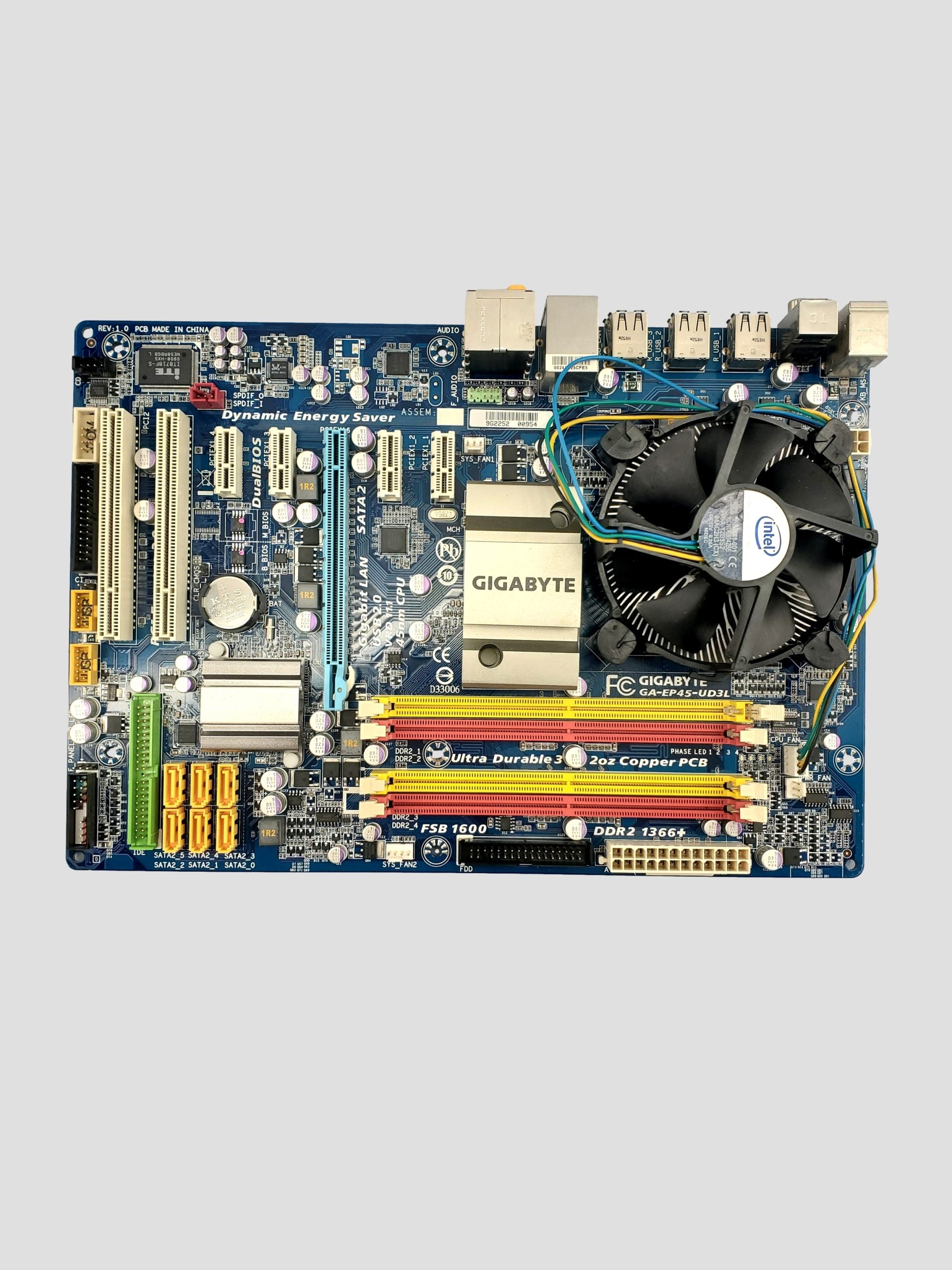

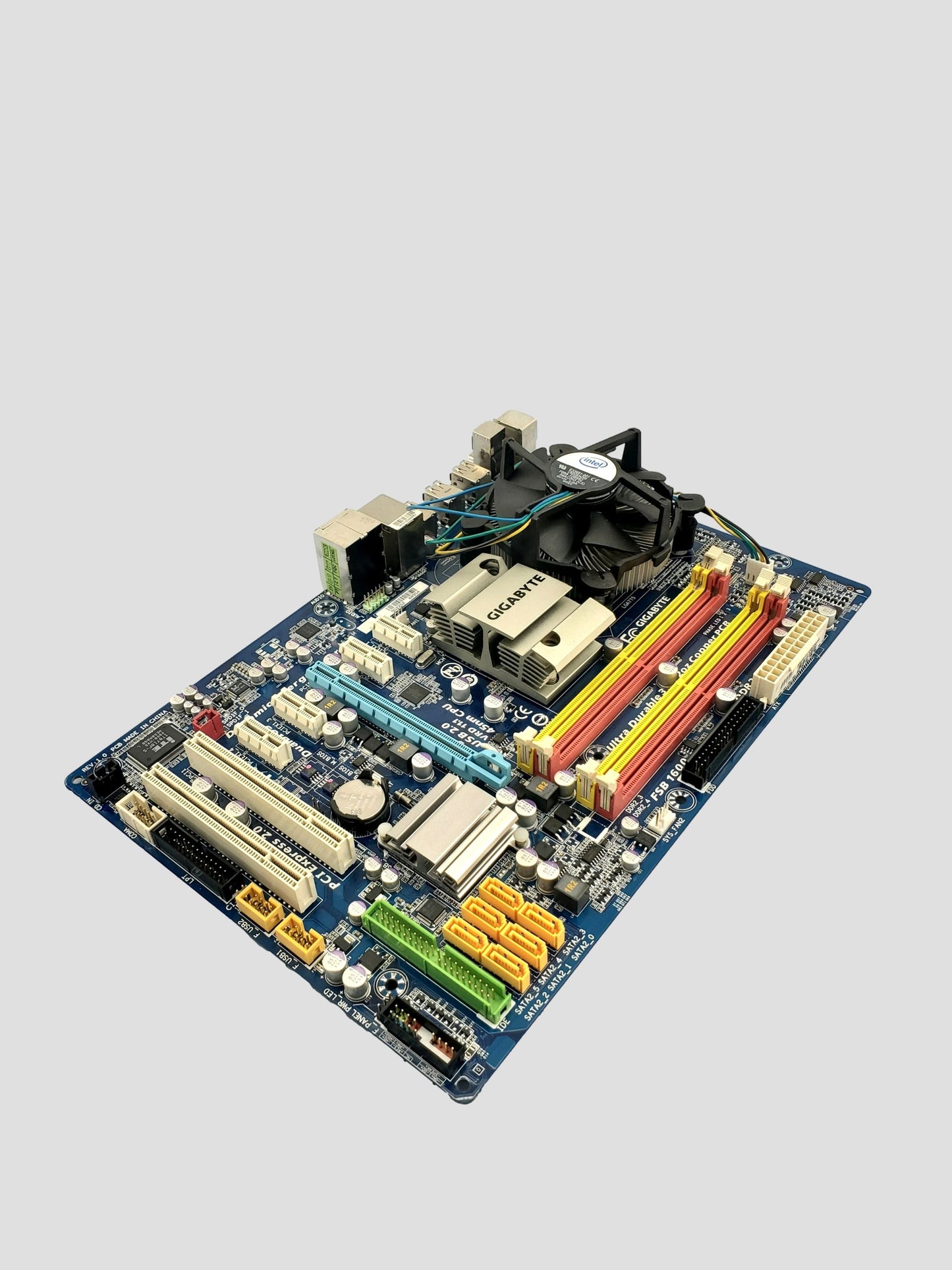

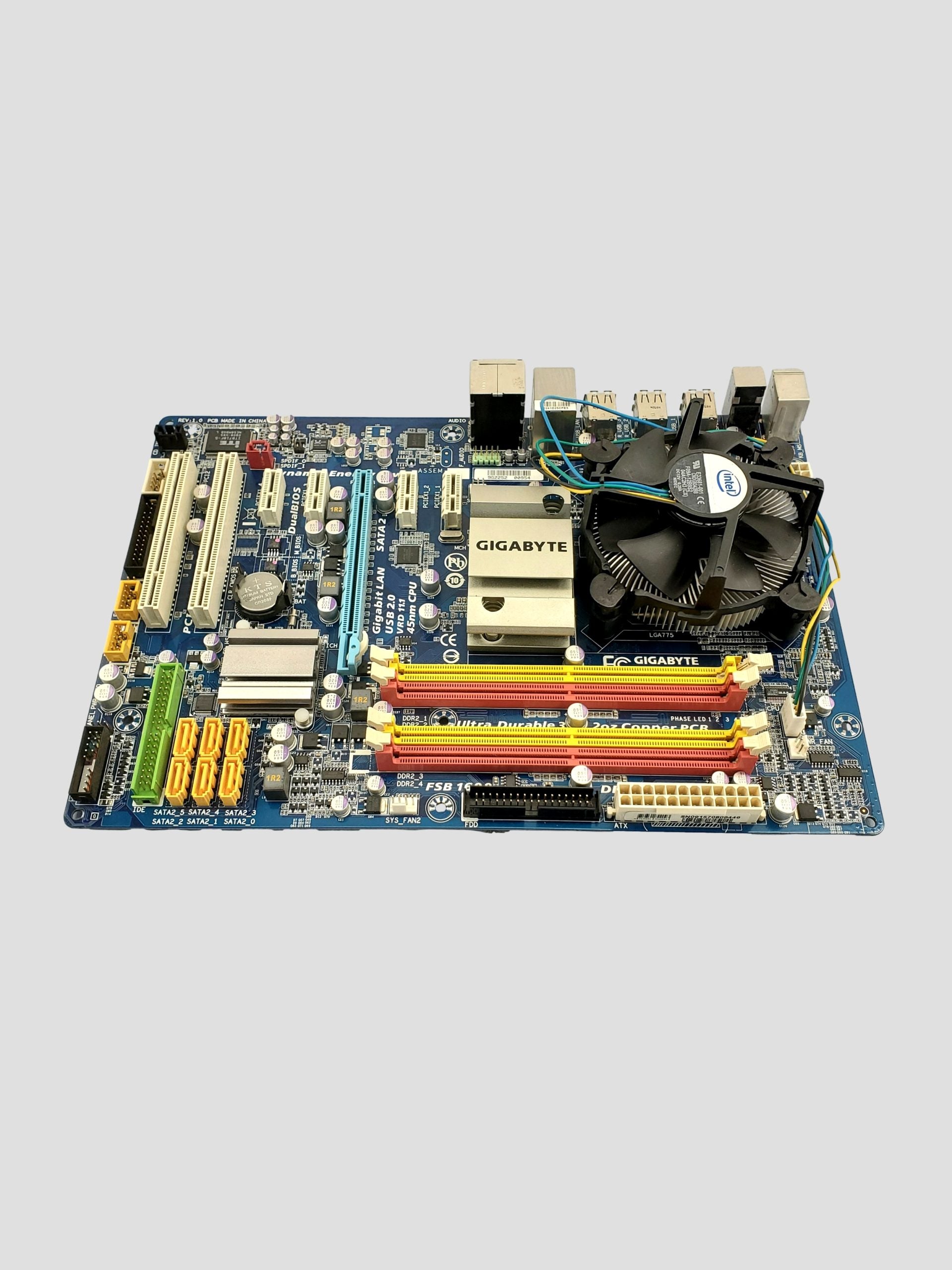

Gigabyte Technology GA-EP45-UD3L V1.0 Socket 775 Motherboard 1600MHz FSB Intel Core 2 Dual Channel DDR2 1366MHz

Ultra Durable 3 technology, 2oz copper PCB, iTE IT8718 chip, support for floppy drive, 7 expansion slots, Intel P45 chipset, Socket Type LGA 775/Socket T

• Revolution energy saving design with DES Advanced featuring hardware based Dynamic 4-Gear switching
• 45nm Intel Core 2 multi-core processors with FSB 1600 MHz

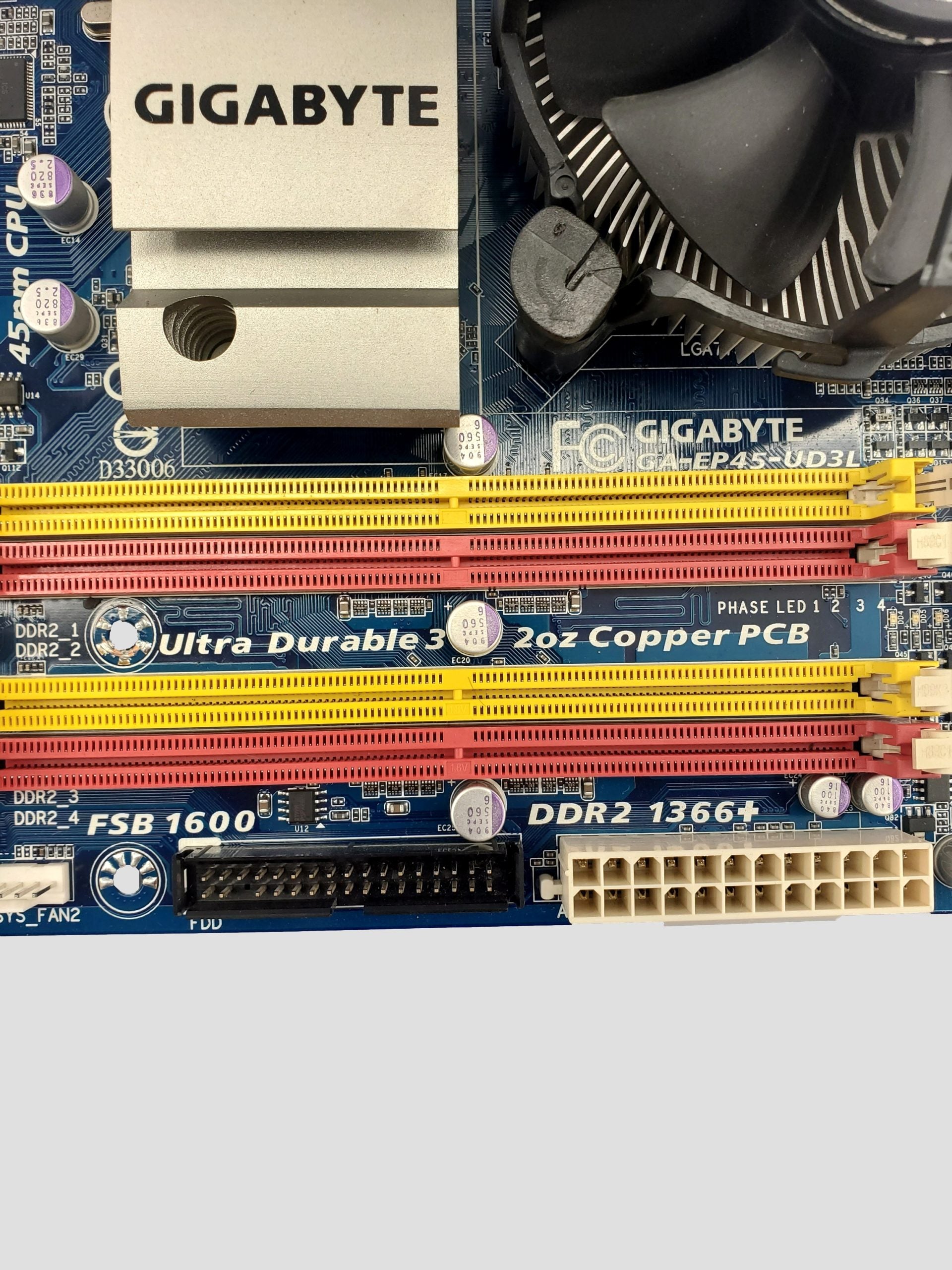

• Dual channel DDR2 1366+
• PCIe 2.0 x16 interface
• High speed Gigabit Ethernet connection
• DualBIOS
• Home theater quality 8-channel High Definition Audio

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 6 x SATA 3Gb/s connectors

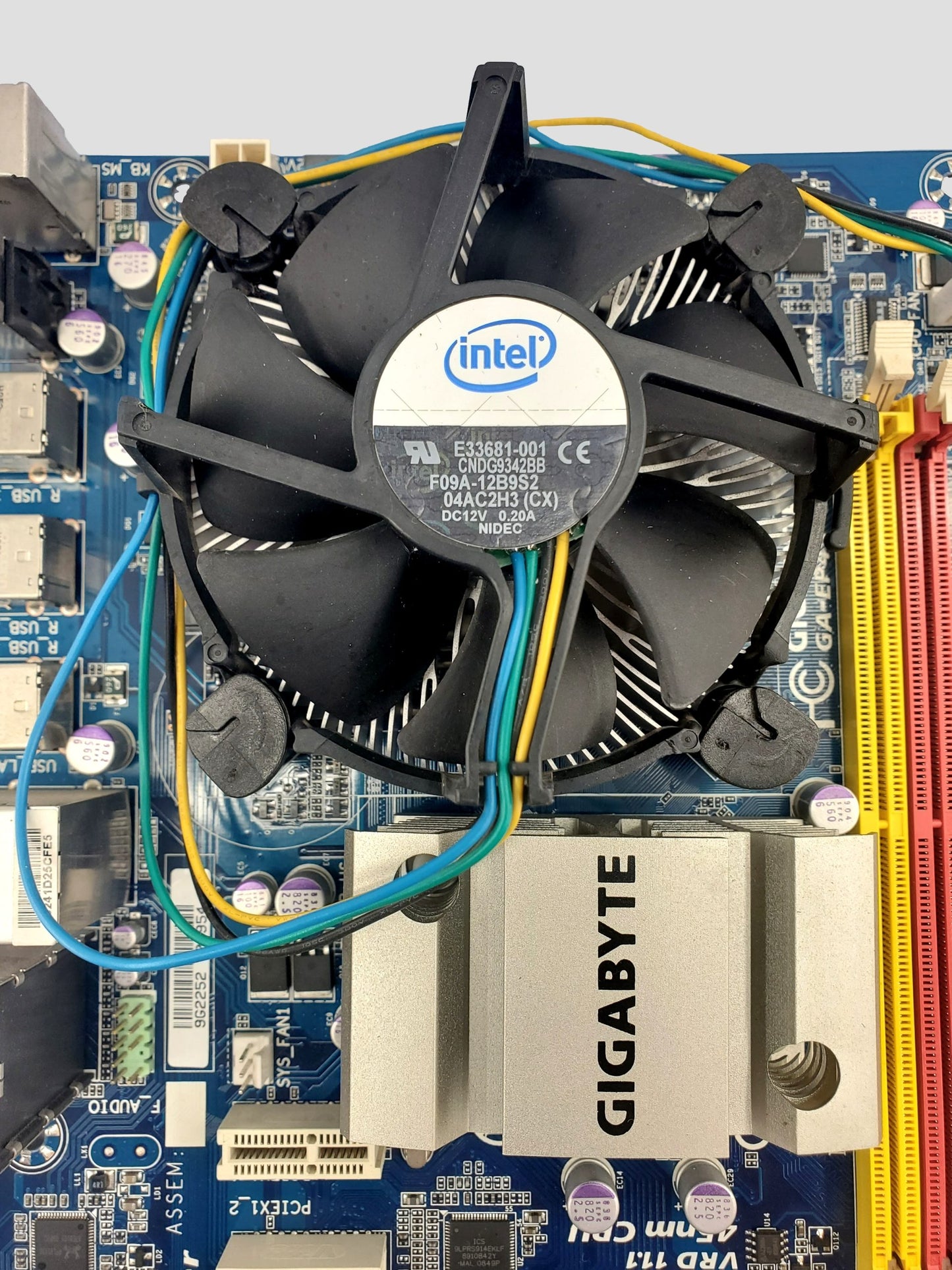

6. 1 x CPU fan header
7. 2 x system fan headers
8. 1 x power fan header
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x CD In connector
12. 1 x S/PDIF In header
13. 1 x S/PDIF Out header
14. 2 x USB 2.0/1.1 headers
15. 1 x parallel port header
16. 1 x serial port header
17. 1 x power LED header
18. 1 x chassis intrusion header

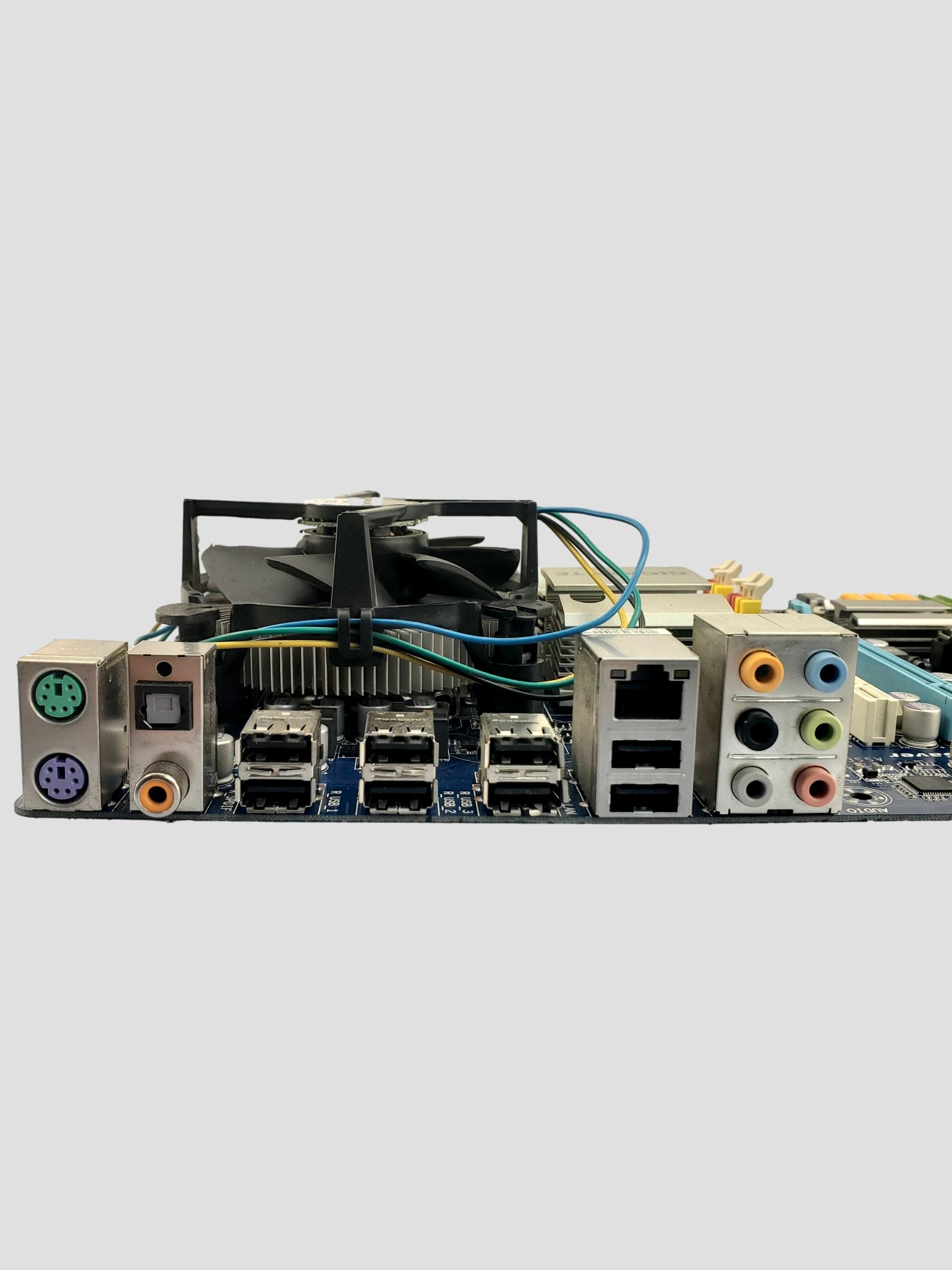

1. 1 x PS/2 mouse port
2. 1 x PS/2 keyboard/mouse port
3. 1 x optical S/PDIF Out connector
4. 1 x coaxial S/PDIF Out connector
5. 8 x USB 2.0/1.1 ports
6. 1 x RJ-45 ports
7. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line
