Gilbarco Keypad Driver Board M04528A001 M04527A REV B

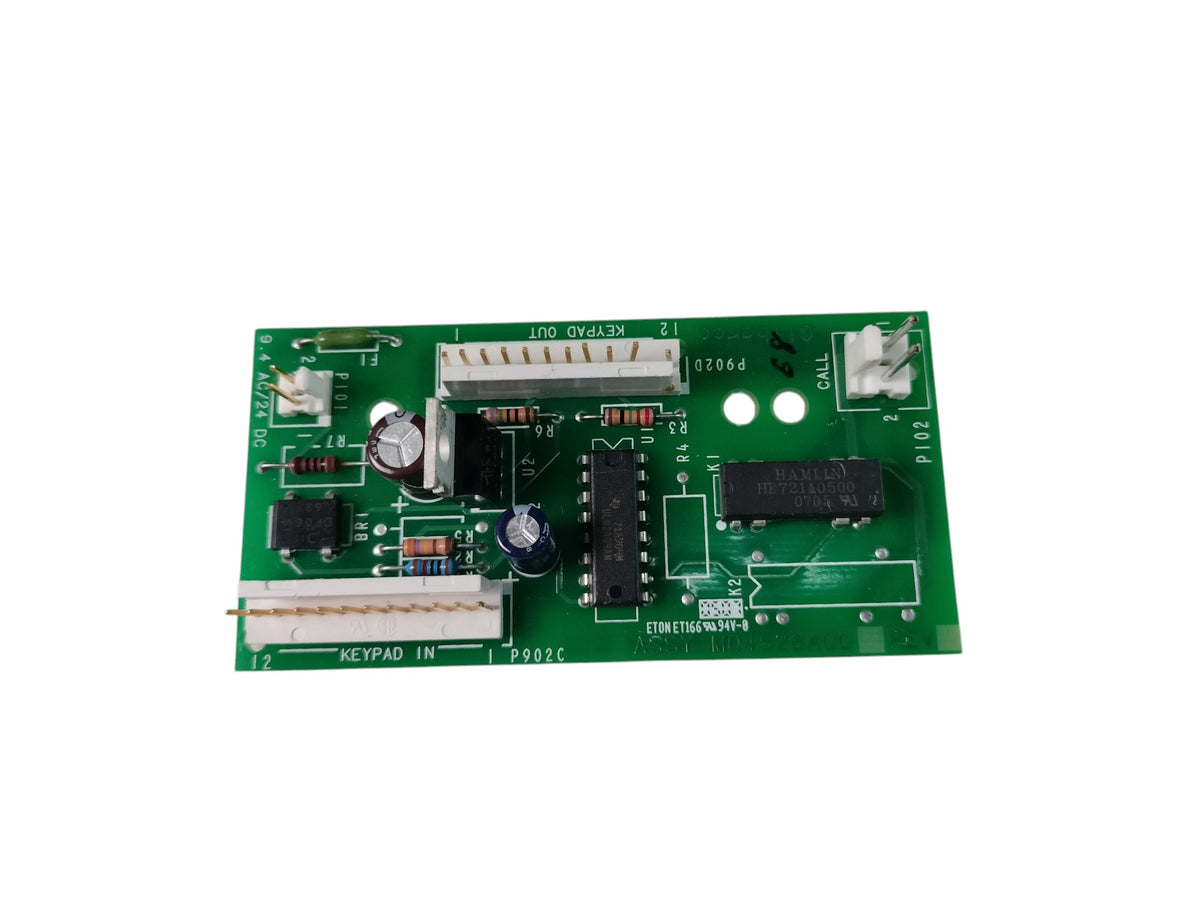

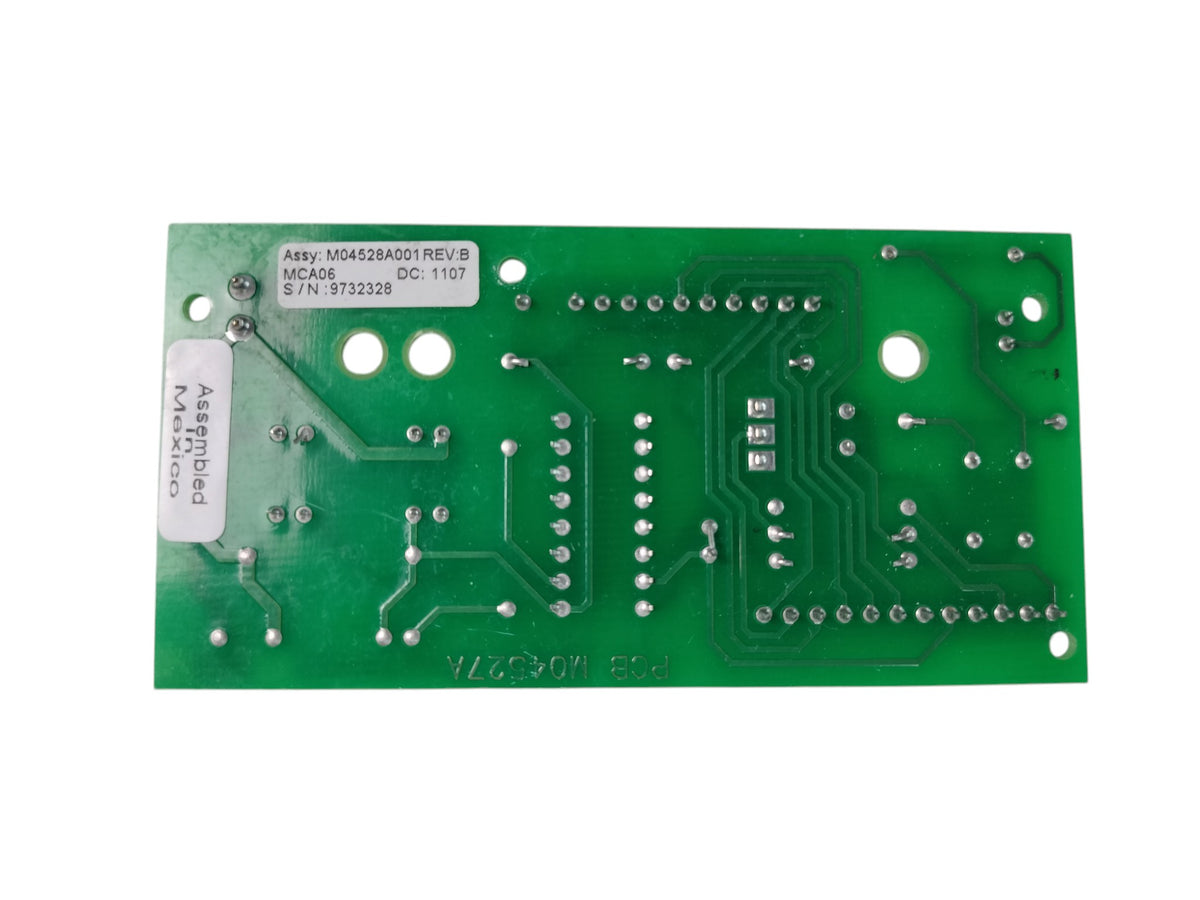

Condition Used (Good condition. Genuine OEM Gilbarco Veeder-Root dispenser keypad interface driver circuit board assembly, Part / Assembly Number Assy: M04528A001 REV:B (PCB Stamping: PCB M04527A / ASSY M04528A00). Date Code DC: 1107 and Serial Number S/N: 9732328. Assembled in Mexico. Rated for 9.4 AC/24 DC input power. Features 12-pin KEYPAD IN header (P902C), 12-pin KEYPAD OUT header (P902D), 2-pin power header (P101), and 2-pin call button header (P102). Onboard components include Hamlin HE721A0500 reed relay, logic ICs, bridge rectifier, and voltage regulator. Green PCB, trace gold-flashed pin headers, and component solder joints are clean and intact with minor cosmetic surface scuffs from prior dispenser installation. Sold AS-IS.)

ITEM SPECIFICS

• Brand / Manufacturer: Gilbarco Veeder-Root

• Assembly Part Number (P/N): M04528A001 REV:B (M04528A001REVB / M04528A001)

• PCB Stamping: PCB M04527A / ASSY M04528A00

• Date Code: DC: 1107 (2011, Week 07)

• Serial Number: S/N: 9732328

• Type: Fuel Dispenser Keypad Driver / Interface Circuit Board

• Input Power Rating: 9.4 VAC / 24 VDC

• Onboard Headers:

  • 1x 12-Pin Keypad In Header (P902C)

  • 1x 12-Pin Keypad Out Header (P902D)

  • 1x 2-Pin AC/DC Power Header (P101)

  • 1x 2-Pin Call Button Header (P102)

• Key Components: Hamlin HE721A0500 Reed Relay, ETON ET166 94V-0 PCB

• Country of Manufacture: Assembled in Mexico

• Specific Device / Dispenser Compatibility:

  • Gilbarco Fuel Dispensers: Gilbarco Advantage, Encore 300, Encore 500, Encore 500S, and Legacy series commercial fuel dispensers and gas pumps using the M04528/M04527 keypad driver interface module.
