HP QLogic QLE2460 4Gb Single-Port Fibre Channel PCIe HBA AE311-60001

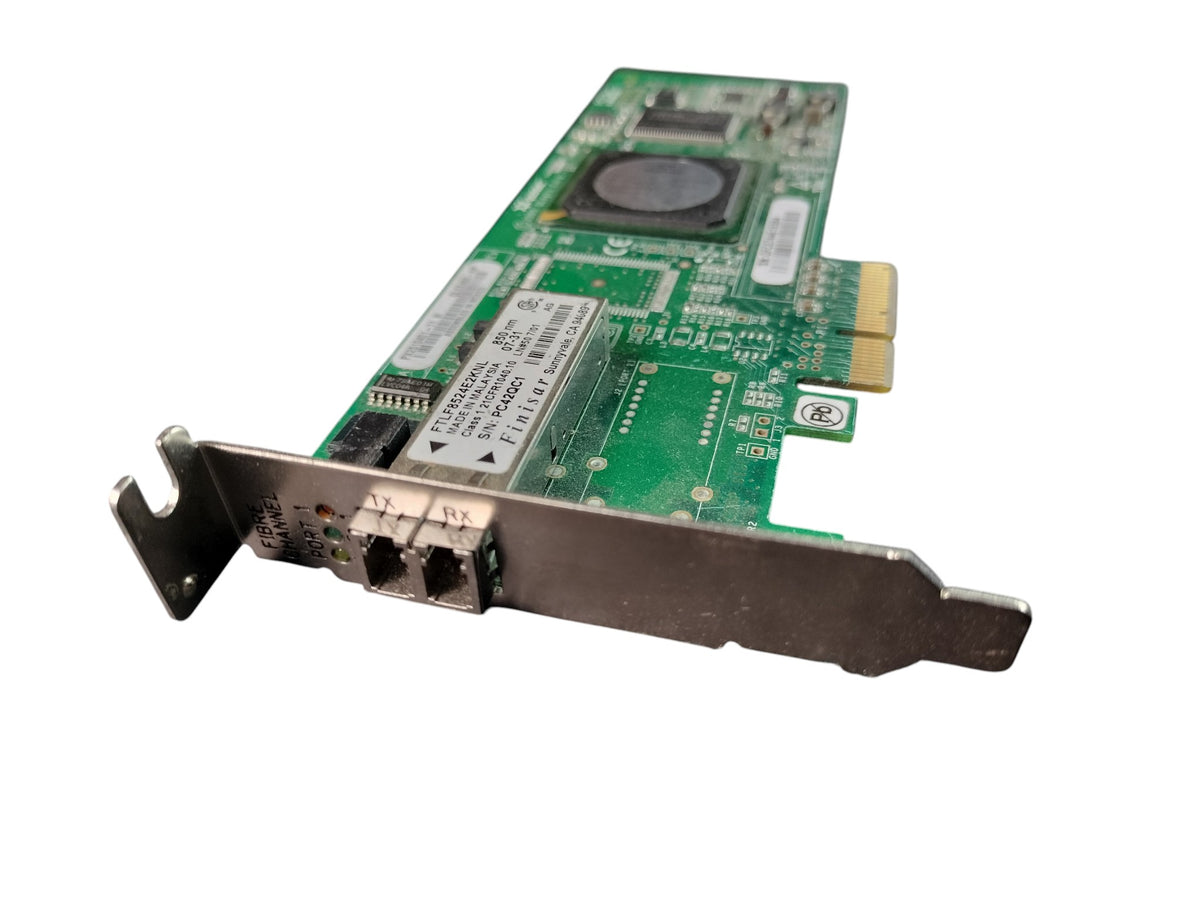

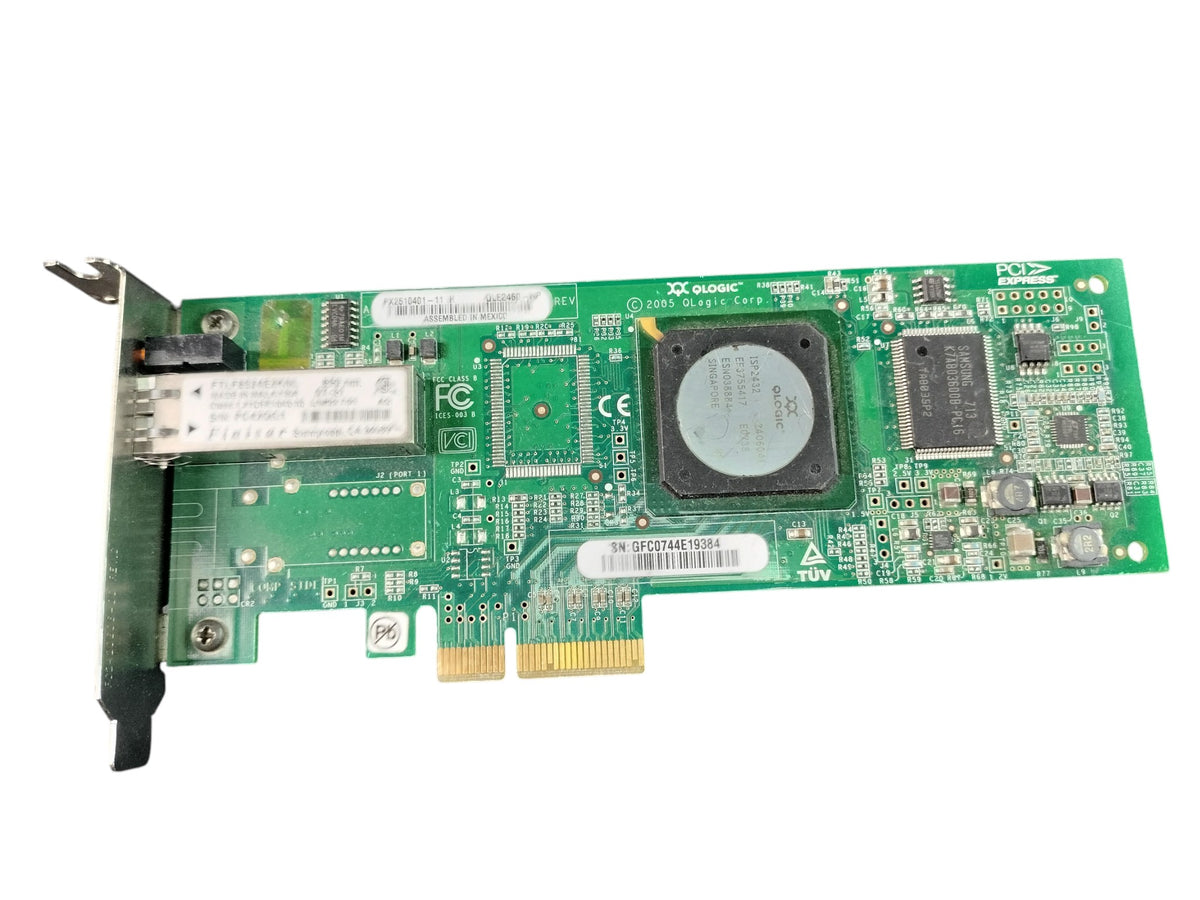

Condition Used (Good condition. Genuine OEM HP / QLogic 4Gbps single-port Fibre Channel PCI Express host bus adapter card, HP Part Number AE311-60001, Spare Part Number 407620-001, QLogic Model QLE2460 (PCB Ref PX2510401-11), Serial Number GFC0744E19384. Powered by QLogic ISP2432 controller chipset. Includes pre-installed Finisar FTLF8524E2KNL 4Gb SW SFP optical transceiver module (850nm). Features PCIe x4 host bus interface andLC optical fibre channel connector. Attached with a full-height PCI bracket. Green circuit board, gold edge contacts, transceiver, and metal bracket are clean and intact with minor cosmetic surface wear from prior deployment. Assembled in Mexico. Sold AS-IS.)

ITEM SPECIFICS

• Brand / Manufacturer: HP / QLogic Corporation

• HP Part Number (P/N): AE311-60001 (AE31160001)

• HP Spare Part Number: 407620-001

• QLogic Model Number: QLE2460 / QLE2460-HP

• PCB Part Number: PX2510401-11

• Serial Number (S/N): GFC0744E19384 / MXK07447KB

• Port WWN: 5001438000C22900

• Chipset: QLogic ISP2432

• Interface / Bus Type: PCI Express x4 (PCIe x4)

• Data Transfer Rate: 4Gbps Fibre Channel

• Transceiver Included: Finisar FTLF8524E2KNL 4Gb Short-Wave (850nm) LC SFP Module

• External Connectors: 1x LC Duplex Optical Port

• Form Factor: Low-Profile PCB with Full-Height Metal Mounting Bracket Attached

• Color: Green PCB w/ Silver Bracket

• Country of Manufacture: Assembled in Mexico

• Specific Device Compatibility:

  • Servers & SAN Storage: Compatible with HP ProLiant DL/ML servers and general PCIe-equipped workstations connecting to 4Gb/2Gb Fibre Channel SAN storage arrays, tape libraries, and optical network switches.
