Keonn Advantenna-SP11 UHF RFID High-Gain Patch Antenna ADAN-SP11US-PRMSMA-1-100

Condition Used (Genuine Keonn Technologies Advantenna-SP11 [P/N: ADAN-SP11US-PRMSMA-1-100.04 / ADAN-sp11US-PM-100.01 / ADAN-spmnUS-100.01] Ultra-Thin High-Gain UHF RFID Circularly Polarized Patch Antenna for the US FCC 902–928 MHz band. Working commercial pull with clean, undamaged gold edge-mount SMA female connector. Shows normal cosmetic surface scuffs, light marks on the white PCB faces, and slight fraying along the internal foam core edge from previous installation as pictured.)

ITEM SPECIFICS

• Brand / Manufacturer: Keonn Technologies (keonn.com)

• Product Line / Model: Advantenna-SP11

• Manufacturer Part Number (MPN): ADAN-SP11US-PRMSMA-1-100.04 (ADAN-SP11US-PRMSMA-1-100)

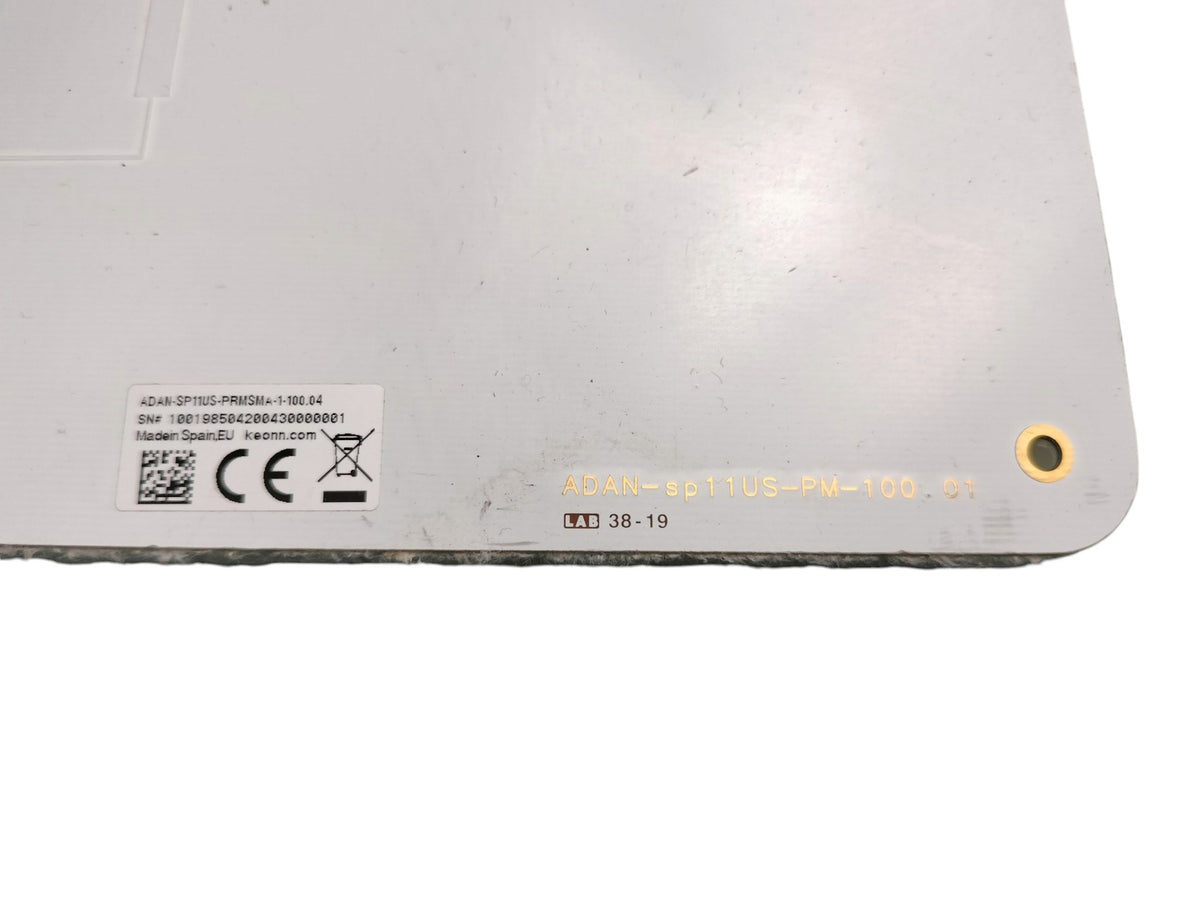

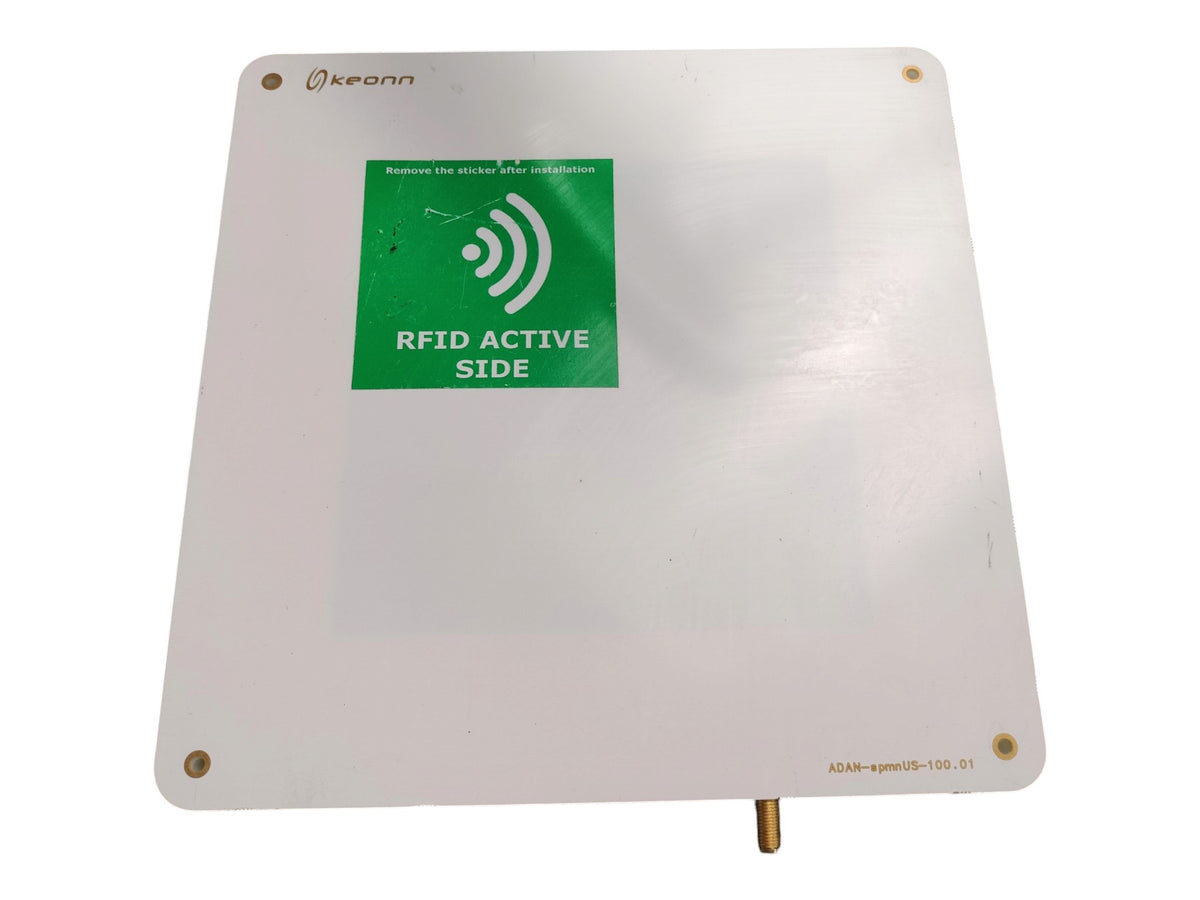

• Board Silkscreen Numbers: ADAN-sp11US-PM-100.01 (Back) / ADAN-spmnUS-100.01 (Front)

• Serial Number: 100198504200430000001 (LAB 38-19)

• Operating Frequency Band: 902 – 928 MHz (US / FCC Part 15 UHF RFID Band)

• Gain: 7.8 dBiC (Max) / 7.4 dBiC (Typical)

• Polarization & Beamwidth: Circular Polarization, 70° x 70° Wide Beamwidth

• Impedance: 50 Ohm

• Connector Type: Edge-Mount Straight SMA Female Jack (Between PCB layers)

• Dimensions: 207 mm x 207 mm x 11.7 mm (8.1" x 8.1" x 0.46")
