SIIG JJ-P10211 CyberSerial 1-Port RS-232 DB9 Serial PCI Card GM16C550 POS CNC

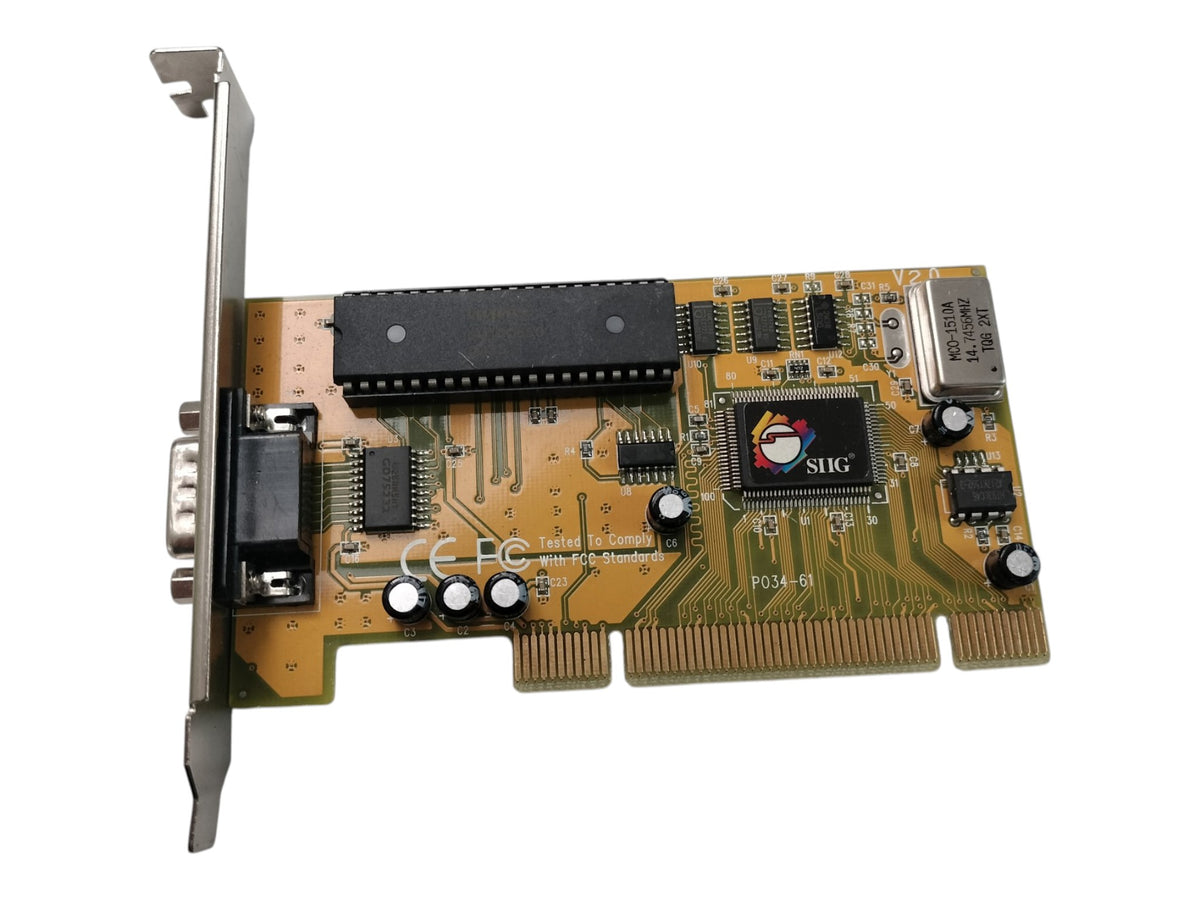

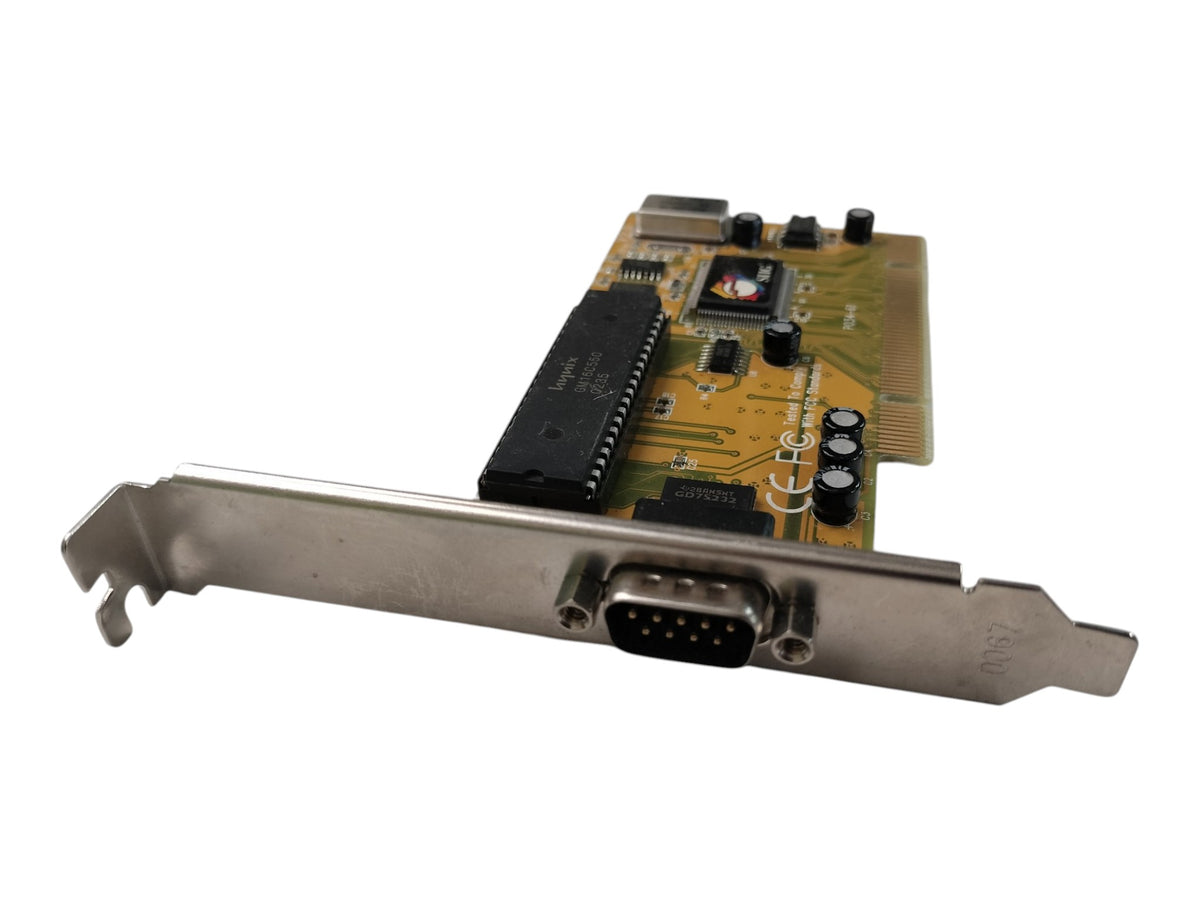

Condition Used (Clean, tested working pull. Genuine SIIG Model JJ-P10211 1-Port RS-232 DB9 Male Serial PCI Expansion Card, S/N J91030000857, PCB Rev P034-61 V2.0. Features the socketed 40-pin Hynix GM16C550 UART chip and standard full-height bracket. Gold PCI edge contacts, DB9 pins, and board components are clean, straight, and intact as pictured.)

ITEM SPECIFICS

• Brand / Manufacturer: SIIG

• Model / Part Number (MPN): JJ-P10211 (JJ-P10211-S3 / CyberSerial PCI 1S)

• Serial Number: J91030000857

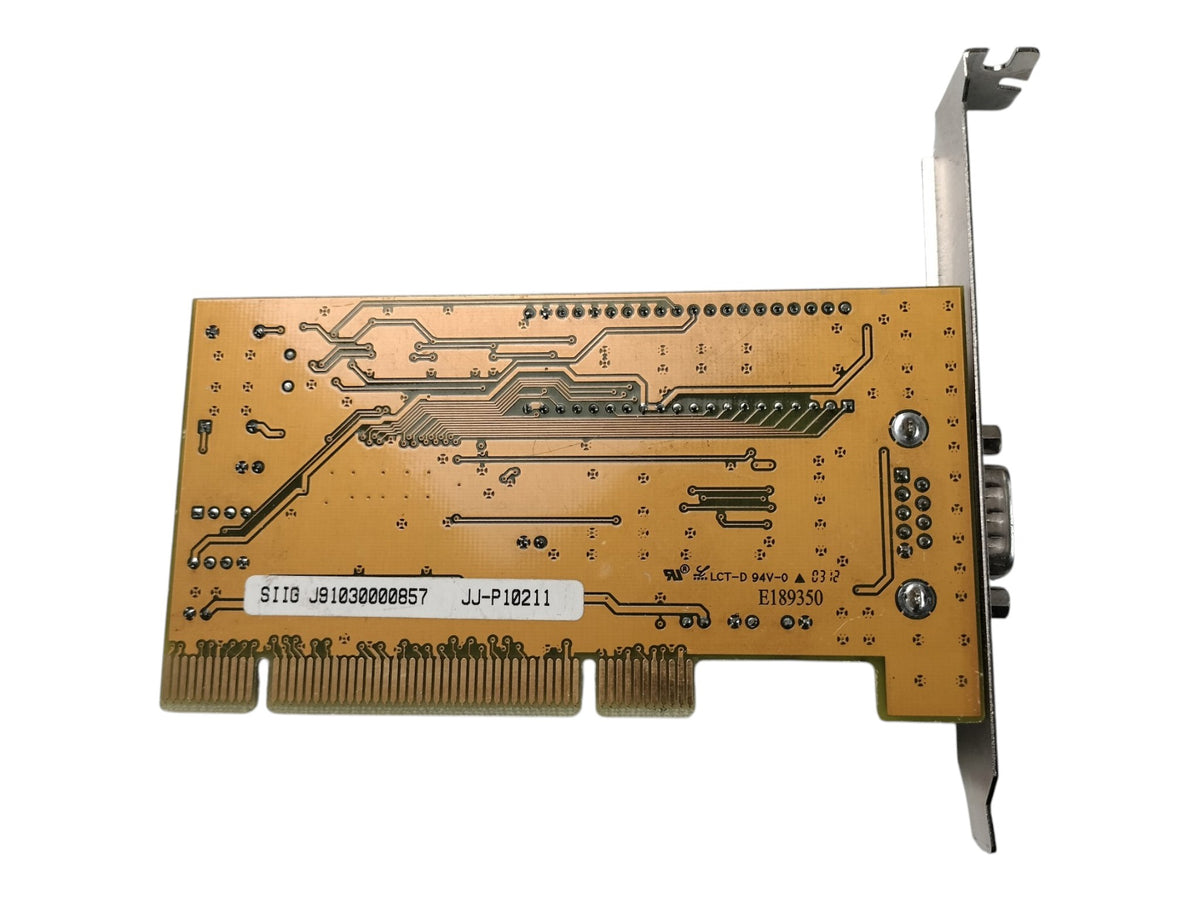

• PCB / Board Markings: P034-61 V2.0 / E189350 (LCT-D 94V-0)

• UART / Controller Chipset: Socketed Hynix GM16C550 (16C550 UART) + SIIG PCI Bridge + GD75232 RS-232 Driver

• Crystal Oscillator: MCO-1510A 14.7456MHz

• Bus Interface: 32-Bit 5V PCI Slot

• External Port: 1x DB9 Male (9-Pin RS-232 Serial COM Port)

• Bracket Profile: Full-Height / Standard Profile Bracket (0067)

• Specific Device & System Compatibility:

  • POS Terminals, CNC Equipment, Industrial Control & Retro PCs: Provides a true hardware 16C550 RS-232 COM port for serial receipt printers, barcode scanners, scales, modems, CNC machines, and legacy DOS / Windows 95 / 98 / NT / 2000 / XP / 7 / Linux systems.
