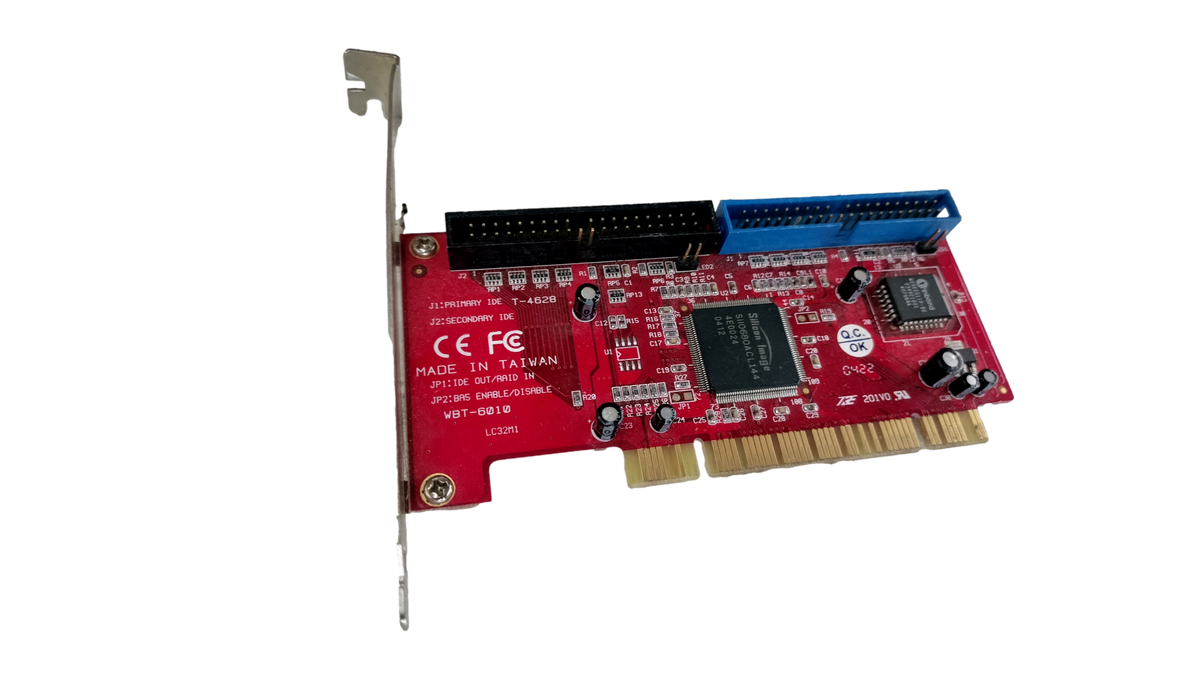

Silicon Image Sil0680A Ultra ATA/133 IDE RAID Controller PCI Card WBT-6010

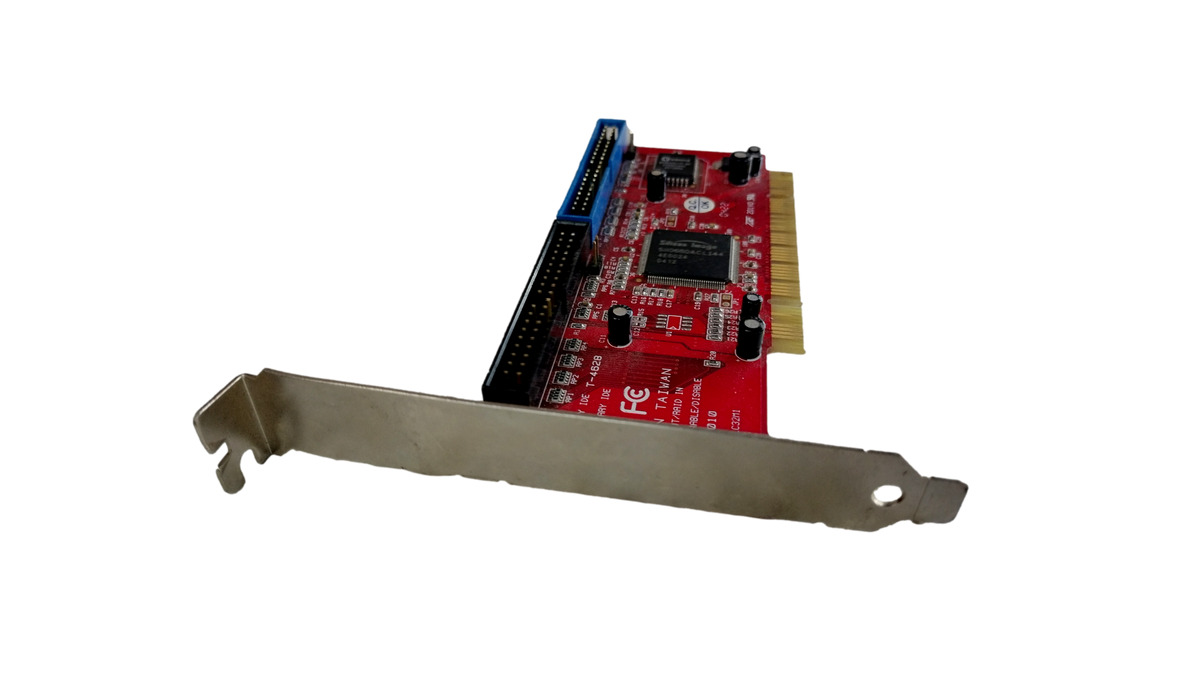

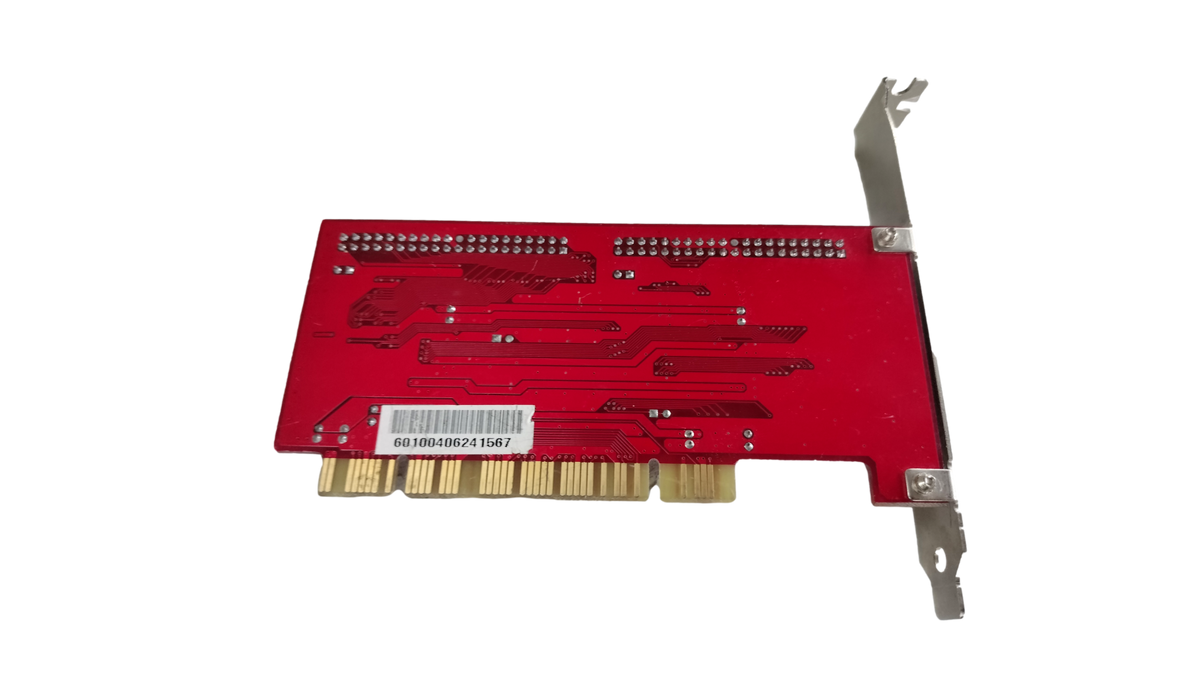

Condition Used (Good condition. Vintage Silicon Image 2-port Ultra ATA/133 IDE controller PCI card. Board markings include WBT-6010, LC32M1, T-4628, JP1: IDE OUT/RAID IN, and JP2: BIOS ENABLE/DISABLE. Powered by Silicon Image Sil0680ACL144 hardware RAID controller chip and Winbond BIOS IC. Features two 40-pin IDE/PATA headers (Primary Black / Secondary Blue) for connecting up to 4 IDE devices. Red PCB, gold PCI contacts, and mounting bracket are clean and fully intact. Pulled from a working vintage system. Untested and sold AS-IS.)

ITEM SPECIFICS

• Brand: Silicon Image / WBT

• Model / Part Number: WBT-6010 (T-4628 / LC32M1)

• Main Chipset: Silicon Image Sil0680A (Sil0680ACL144)

• BIOS / Firmware Chip: Winbond W29EE011P-90

• Type: Internal Ultra ATA/133 IDE / PATA RAID Controller PCI Card

• Interface Slot: Standard 32-bit Legacy PCI Slot

• Internal Connectors: 2x 40-Pin IDE / PATA Male Headers (Supports up to 4 IDE Drives)

• Supported Transfer Protocols: Ultra ATA/133 (133 MB/s), ATA/100, ATA/66, ATA/33

• RAID Modes Supported: RAID 0 (Striping), RAID 1 (Mirroring), RAID 0+1, and Non-RAID JBOD / Standard Storage Expansion

• Onboard Jumpers: JP1 (IDE Out / RAID In), JP2 (BIOS Enable / Disable)

• Form Factor: Standard Full-Height Profile Bracket

• PCB Color: Red

• Compatibility: Vintage / Retro PCs, MS-DOS, Windows 98SE/ME/NT4.0/2000/XP/Vista/7, Linux, and legacy systems requiring additional PATA/IDE ports or hard drive RAID array setups.
