StarTech PEX1P 1-Port DB25 Parallel LPT PCIe Controller Card

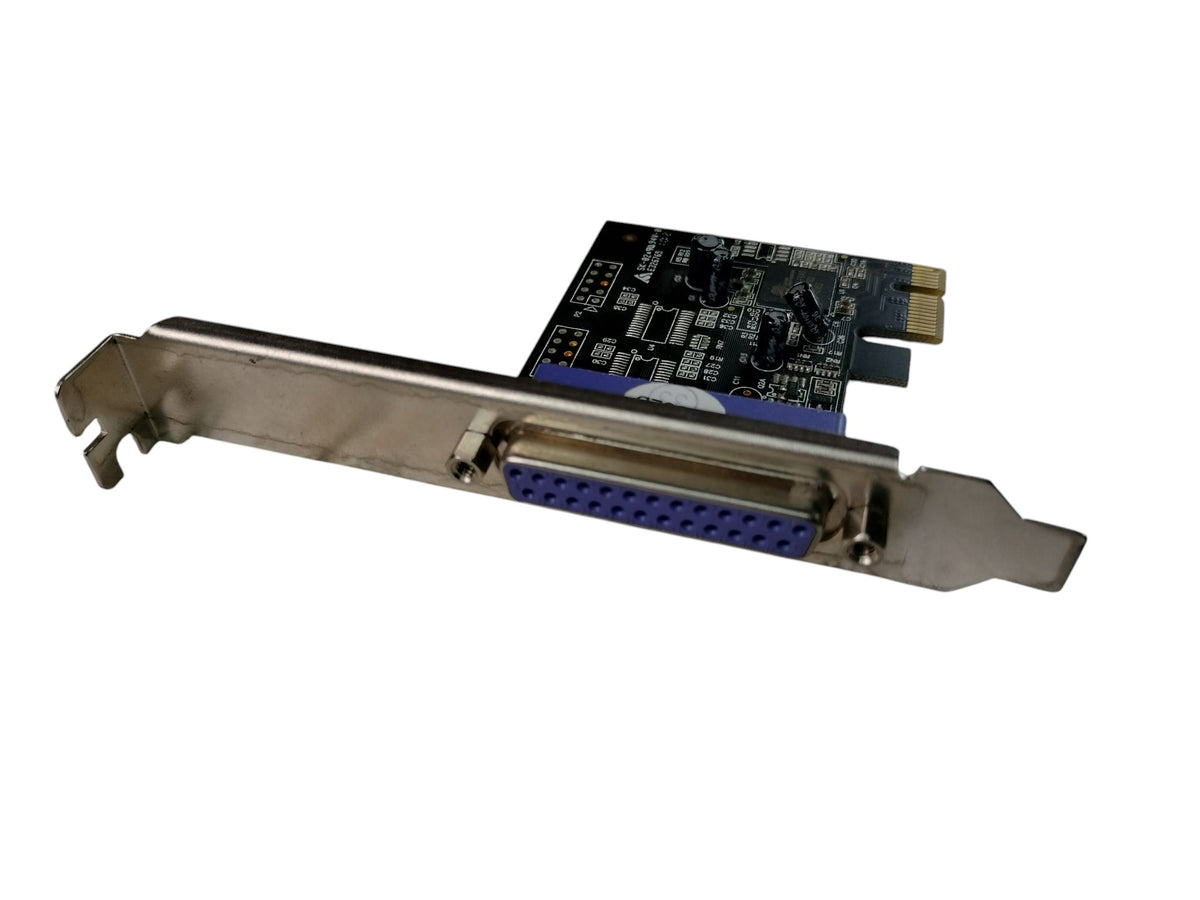

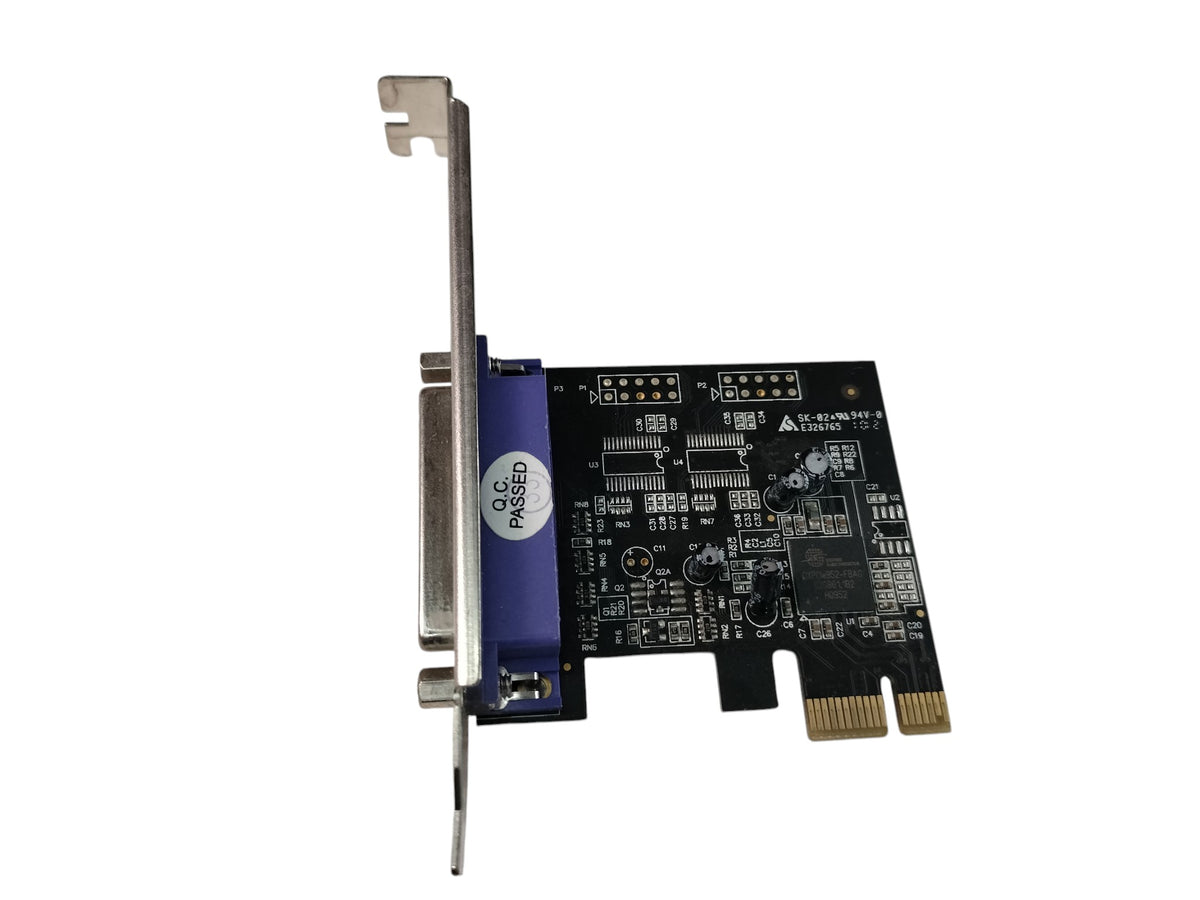

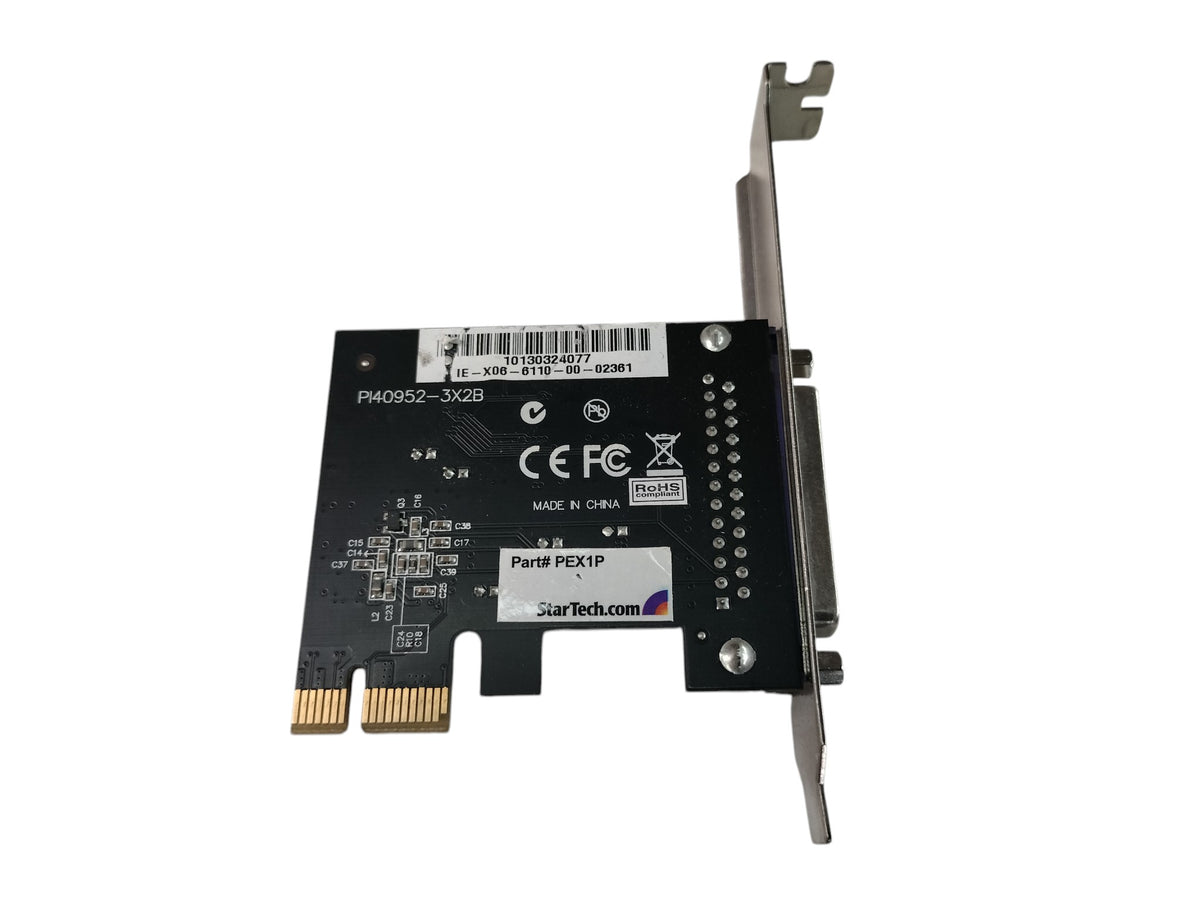

Condition Used (Good condition. Genuine OEM StarTech.com 1-port IEEE 1284 DB25 parallel LPT PCI Express expansion card, Part Number PEX1P. PCB Model / Revision: PI40952-3X2B / IE-X06-6110-00-02361. Powered by WCH CH382L / Oxford chipset. Features PCIe x1 host interface and one external DB25 female parallel printer port. Attached with a full-height PCI bracket. Black circuit board, gold connector contacts, and mounting bracket are clean and intact with minor cosmetic surface wear from prior deployment. Sold AS-IS.)

ITEM SPECIFICS

• Brand / Manufacturer: StarTech.com

• Part / Model Number: PEX1P

• PCB Part Number: PI40952-3X2B

• Board ID / Ref: IE-X06-6110-00-02361 / 10130324077

• Interface / Bus Type: PCI Express x1 (PCIe x1)

• Port Type: 1x External DB25 Female Parallel (LPT / IEEE 1284) Port

• Supported Modes: SPP, PS/2, EPP, ECP

• Form Factor: Low-Profile PCB with Full-Height Metal Mounting Bracket Attached

• Color: Black PCB w/ Silver Bracket

• Country of Manufacture: Made in China

• Specific Device Compatibility:

  • Legacy Printers & POS Peripherals: Compatible with modern PCIe-equipped desktop PCs and servers connecting legacy parallel receipt printers, dot-matrix printers, CNC machines, programmers, and POS hardware requiring an LPT DB25 parallel port.
