Sunon MagLev KDE1204PKVX 40mm x 20mm DC 12V 1.4W Cooling Fan MS.AF.GN 3-Pin

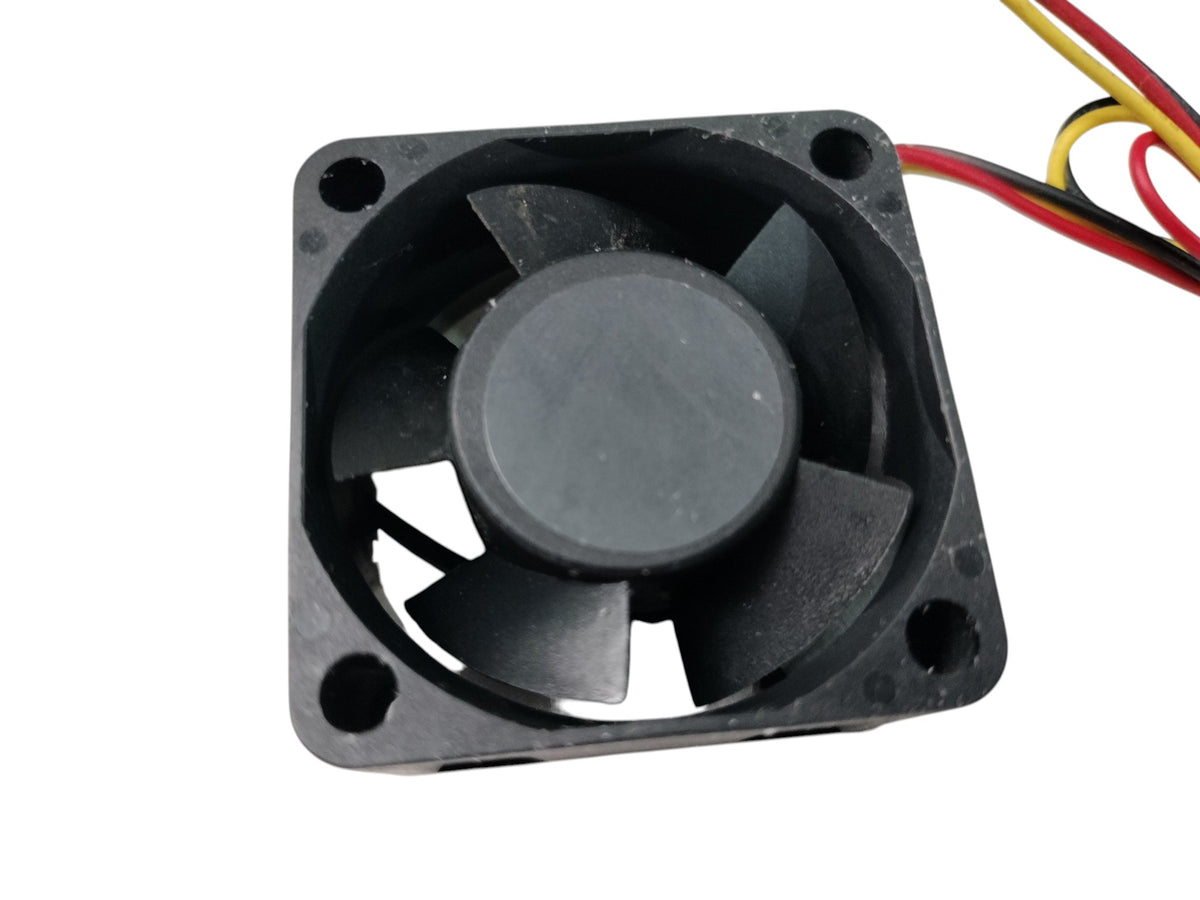

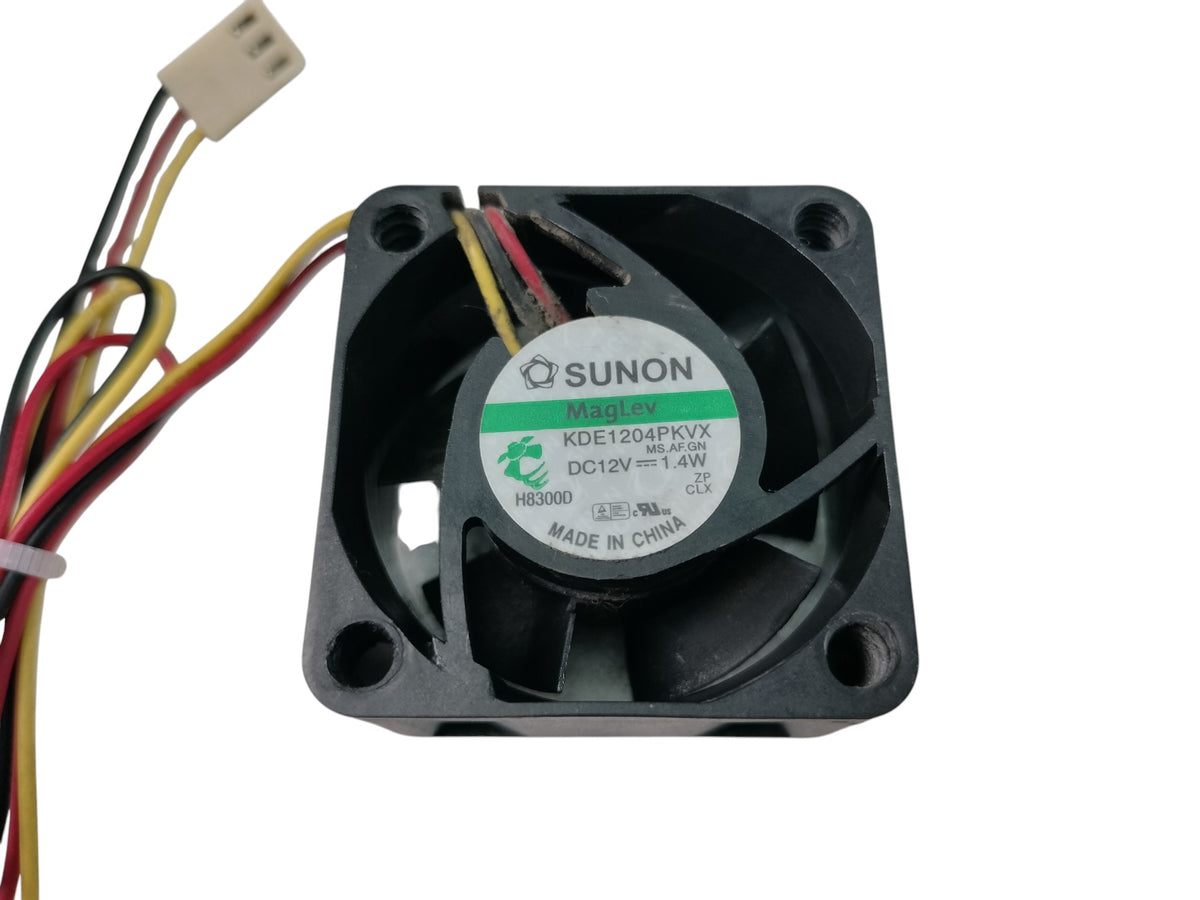

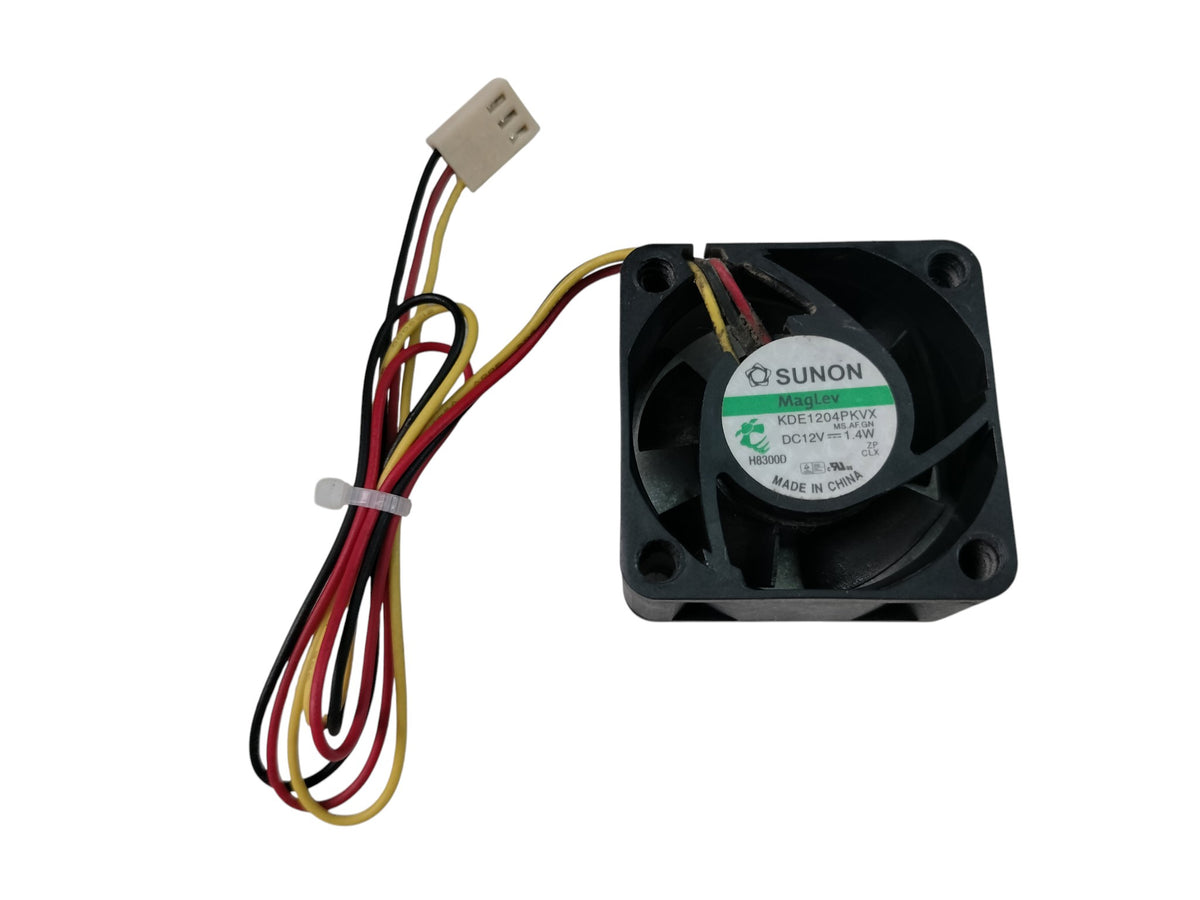

Condition Used (Good condition. Genuine Sunon MagLev 40mm x 40mm x 20mm DC brushless axial cooling fan, Model KDE1204PKVX, Spec Code MS.AF.GN, Lot/Factory Codes H8300D / ZP / CLX. Rated at DC12V 1.4W. Features a black 40x20mm square frame, 5-blade Vapo-bearing MagLev impeller, and a 3-wire power lead (red, black, yellow) terminated with a standard white/beige 3-pin motherboard fan header connector. Frame, blades, wiring, and 3-pin connector are intact with minor cosmetic surface dust from prior use as pictured. Fan only; mounting screws not included. Made in China. Sold AS-IS.)

ITEM SPECIFICS

• Brand / Manufacturer: Sunon

• Series / Bearing Technology: MagLev (Vapo-Bearing V / Magnetic Levitation System MS)

• Model Number (MPN): KDE1204PKVX (Full Part Number: KDE1204PKVX MS.AF.GN)

• Factory / Lot Codes: H8300D / ZP / CLX

• Fan Size / Dimensions: 40mm x 40mm x 20mm (4020 Thick Profile, deduced from Sunon model code 04 = 40mm, PK = 20mm)

• Power Rating: DC 12V, 1.4W (~0.12A)

• Speed / Airflow Spec (Standard VX Rating): ~8,200 RPM, ~10.8 CFM, Auto-Restart (AF) with Tachometer/FG Speed Sensor (GN / 3rd Wire)

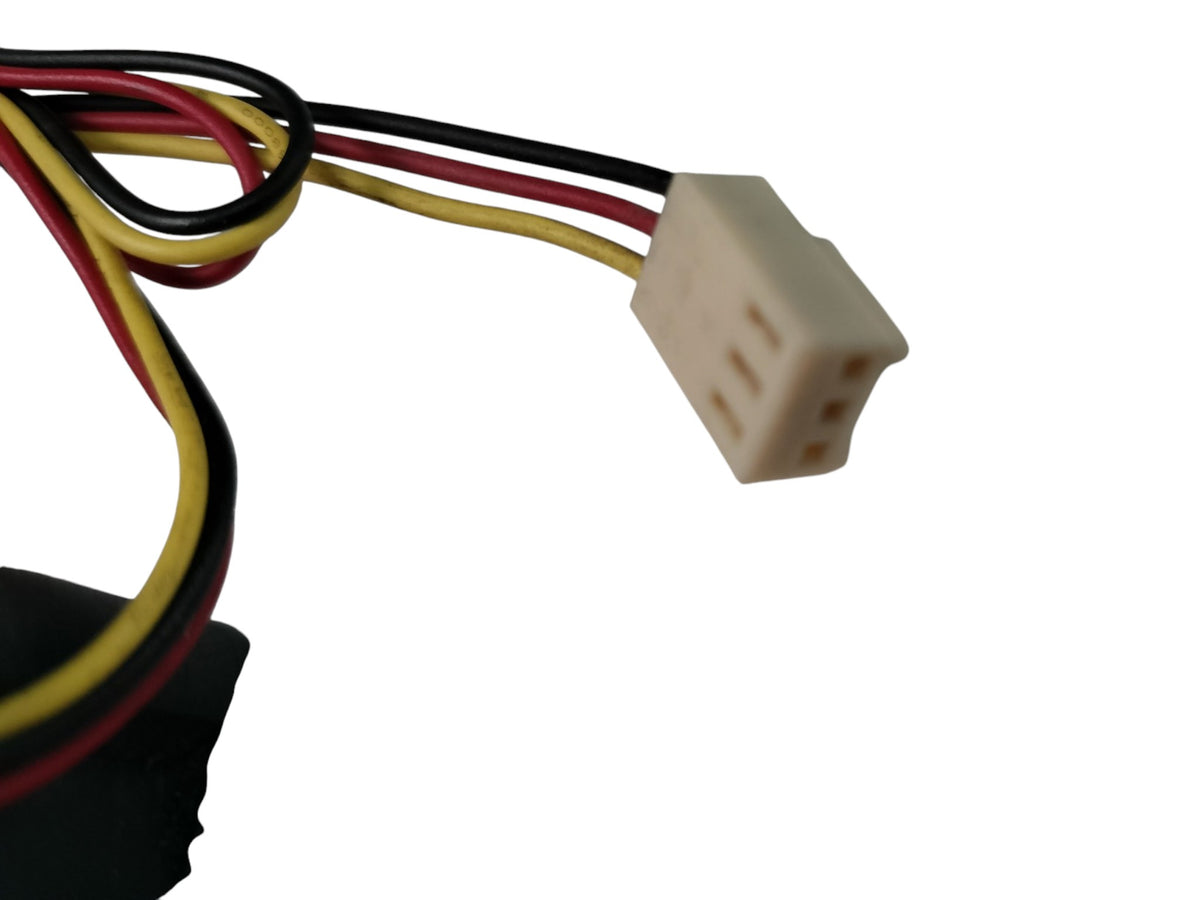

• Power Connector: 3-Pin Header (3-Wire: Black, Red, Yellow)

• Color: Black

• Country of Manufacture: Made in China

• Specific Device & System Compatibility:

  • 1U Server Chassis, Network Switches, NAS Drives, 3D Printers & Telecom Equipment: Designed as a high-static-pressure 40mm x 20mm 12V 3-pin replacement fan for 1U rackmount servers, managed network switches/routers, PoE injectors, NAS storage enclosures, DVR/NVR units, power inverters, and 3D printer extruder/electronics cooling bays.
