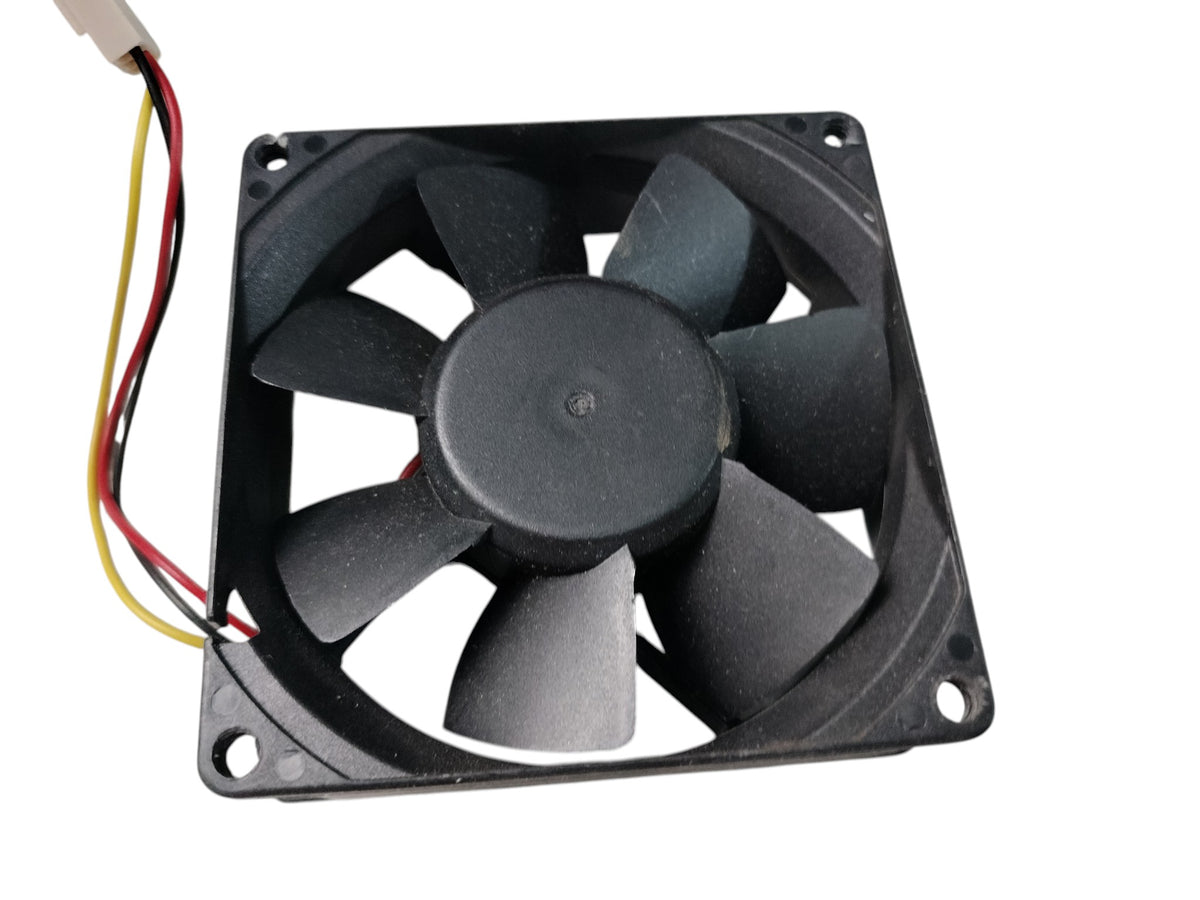

Sunon PMD1208PTB1-A (2).F.GN 80mm x 25mm DC 12V 4.8W Cooling Fan 3-Pin

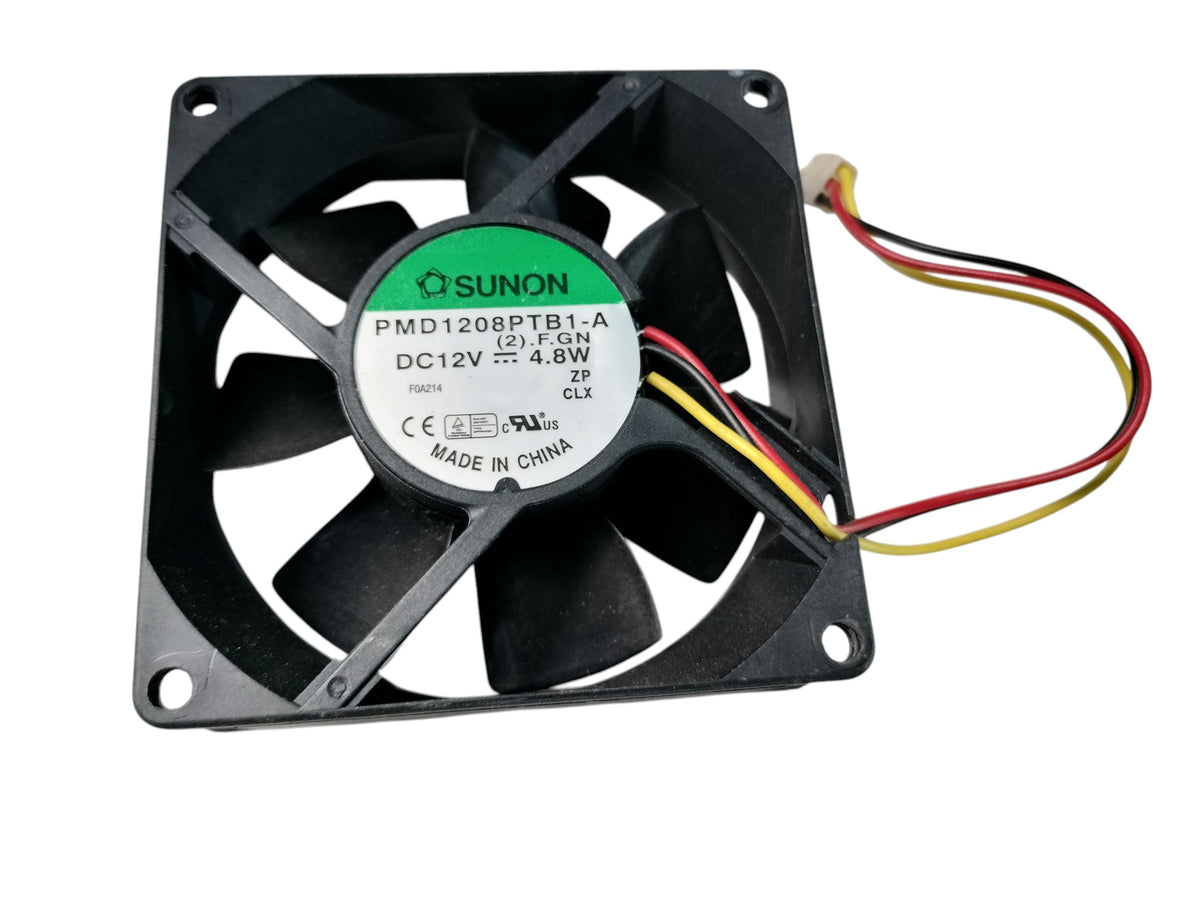

Condition Used (Good condition. Genuine Sunon 80mm x 80mm x 25mm high-output DC axial cooling fan, Model PMD1208PTB1-A, Spec Code (2).F.GN, Lot/Factory Codes F0A214 / ZP / CLX. Rated at DC12V 4.8W (~0.40A). Features a black 80x25mm square frame, 7-blade dual ball bearing impeller, and a 3-wire power lead (red, black, yellow) terminated with a standard 3-pin motherboard/board fan header connector. Frame, blades, wiring, and 3-pin connector are intact with minor cosmetic surface dust from prior use as pictured. Fan only; mounting screws not included. Made in China. Sold AS-IS.)

ITEM SPECIFICS

• Brand / Manufacturer: Sunon

• Model Number (MPN): PMD1208PTB1-A (Full Spec: PMD1208PTB1-A (2).F.GN)

• Factory / Lot Codes: F0A214 / ZP / CLX

• Fan Size / Dimensions: 80mm x 80mm x 25mm (8025 Standard Profile, deduced from Sunon model code 08 = 80mm, PT = 25mm)

• Bearing Type: Dual Ball Bearing (B in PTB1)

• Power Rating: DC 12V, 4.8W (~0.40A)

• Speed / Airflow Spec (Standard B1 High-Speed Rating): ~4,500 RPM, ~53 CFM, 3rd-Wire Tachometer/FG Speed Sensor (F.GN)

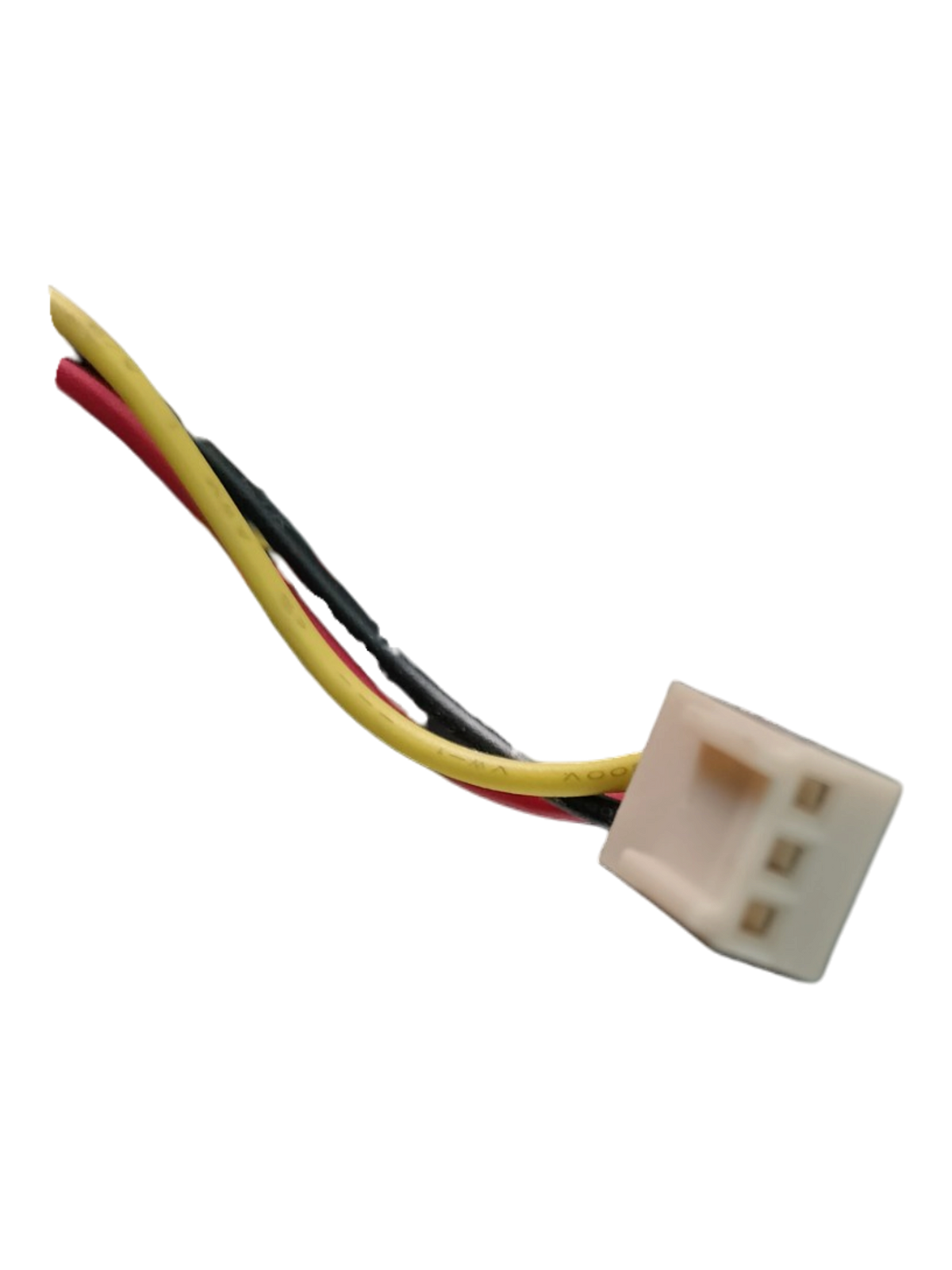

• Power Connector: White/Beige 3-Pin Header (3-Wire: Red, Black, Yellow)

• Safety Certifications: CE, TUV, UL / cUL Recognized

• Color: Black

• Country of Manufacture: Made in China

• Specific Device & System Compatibility:

  • Servers, Power Supplies, Welding/Inverter Equipment, Telecom & PC Chassis: Designed as a heavy-duty, high-airflow 80mm x 25mm 12V 4.8W 3-pin replacement fan for server enclosures, RAID arrays, industrial power supplies, UPS battery backups, arcade/vending cabinets, and desktop PC chassis mounts.
