SUPERRED CHC8012BB-N-AH 12V 0.37A 4 Wires 4 Pins Case Fan 8CM Server Cooler (Copy)

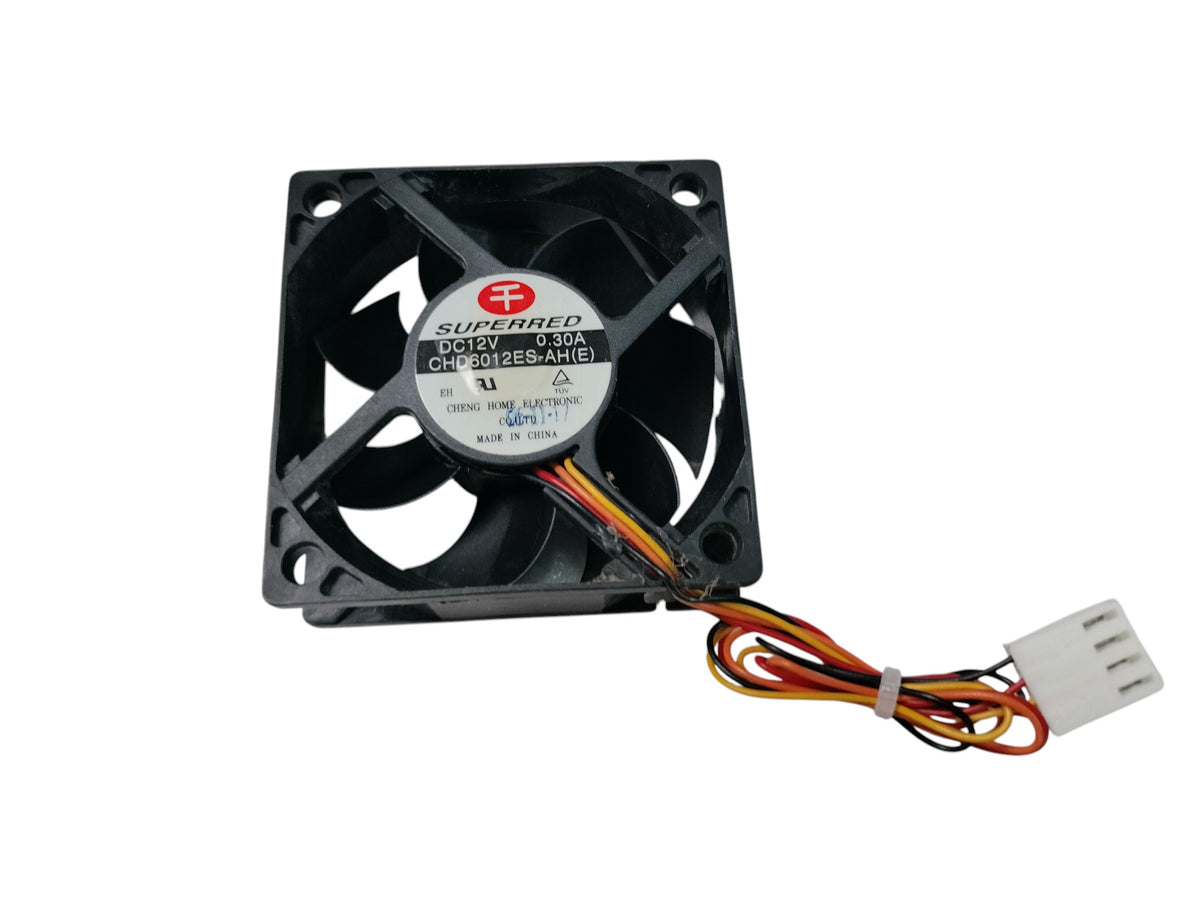

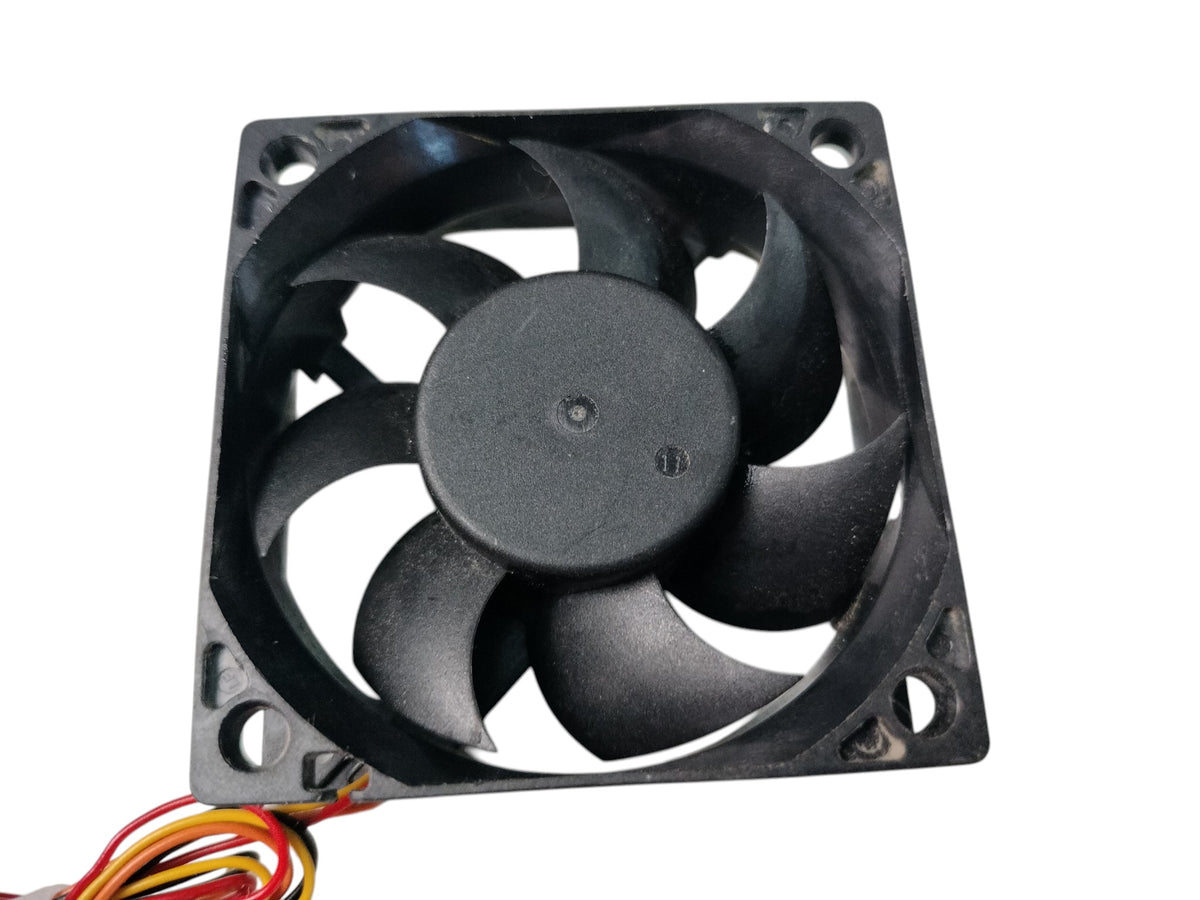

Condition Used (Good condition. Genuine Superred (Cheng Home Electronic Co., Ltd.) 60mm x 60mm x 20mm DC axial cooling fan, Model CHD6012ES-AH(E) (EH, Date Stamp 06-11-17). Rated at DC12V 0.30A. Features a black 60x20mm square frame, 7-blade impeller, and a 4-wire PWM power lead (black, red, yellow, orange) terminated with a white 4-pin motherboard/board fan header connector. Frame, blades, wiring, and 4-pin connector are intact with minor cosmetic surface dust from prior removal as pictured. Fan only; mounting screws not included. Made in China. Sold AS-IS.)

ITEM SPECIFICS

• Brand / Manufacturer: Superred (Cheng Home Electronic Co., Ltd.)

• Model Number (MPN): CHD6012ES-AH(E) / CHD6012ES-AH

• Factory / Date Codes: EH / 06-11-17

• Fan Size / Dimensions: 60mm x 60mm x 20mm (6020 Profile: 60 = 60mm, D = 20mm thickness)

• Bearing Type: Sleeve / Enter Bearing (ES)

• Power Rating: DC 12V, 0.30A (~3.6W)

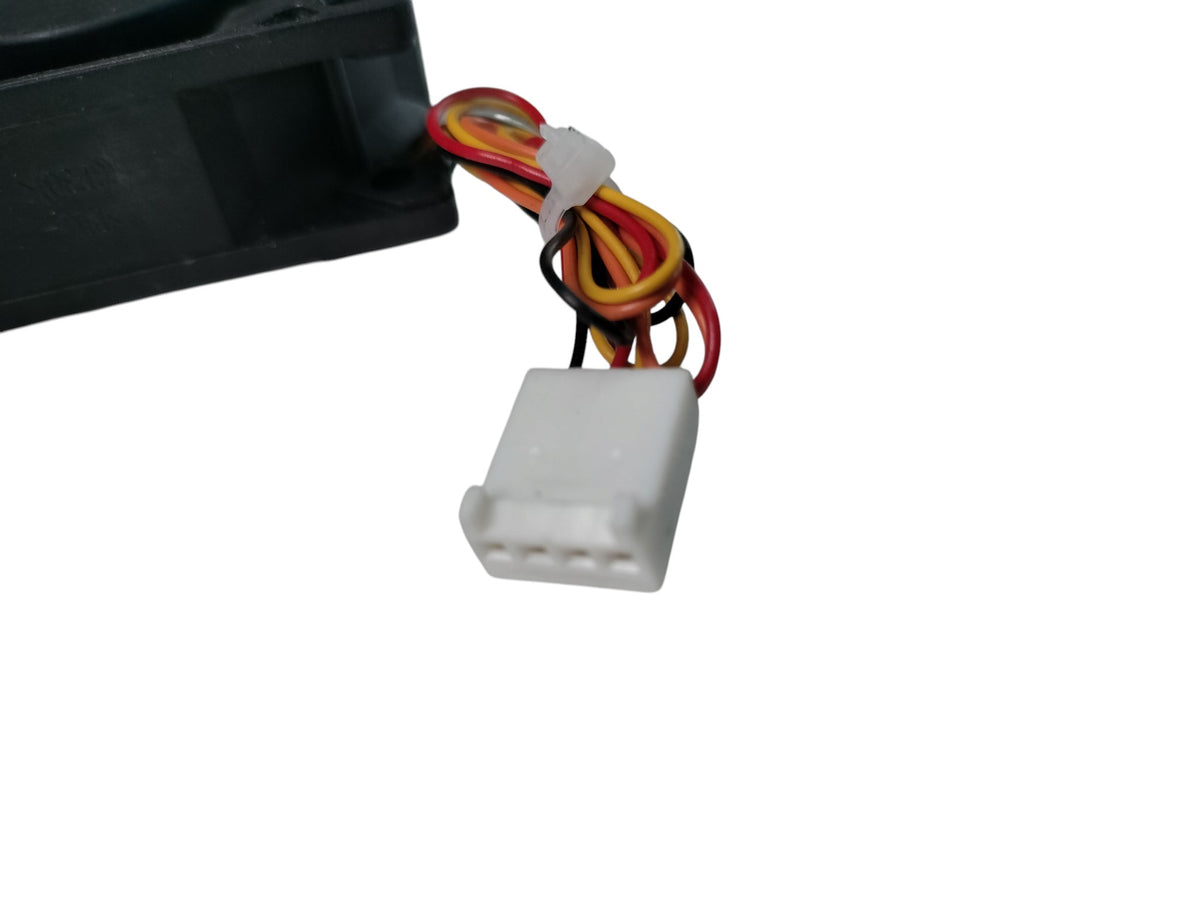

• Power Connector: White 4-Pin PWM Header (4-Wire: Black, Red, Yellow, Orange)

• Safety Certifications: UL Recognized, TUV

• Color: Black

• Country of Manufacture: Made in China

• Specific Device & System Compatibility:

  • Desktops, Small Form Factor (SFF) Chassis, CPU Coolers & Servers: Designed as a direct replacement 60mm x 20mm 12V 4-pin PWM cooling fan for OEM desktop/server chassis (including Lenovo / IBM systems), CPU heatsink coolers, NAS storage enclosures, DVR/NVR units, and industrial electronics enclosures.
