| HARDWARE |
| Management |
2 computers |
| USB Interface |
USB 1.1 Specifications Compliant |

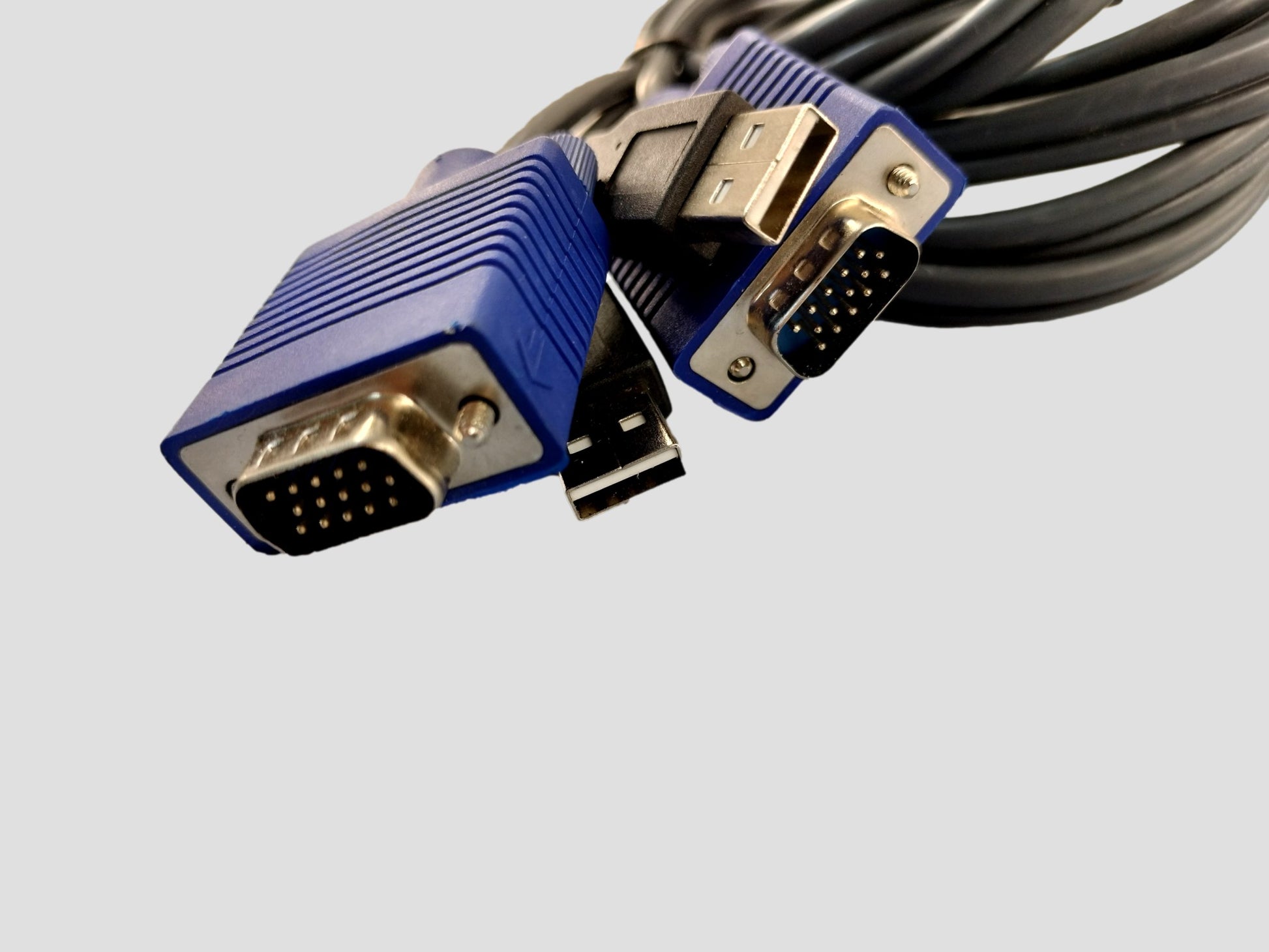

| KVM Cable |
2 Sets of 1.2M (4ft) KVM Cables
2 Sets of Audio/Microphone Cables (USB mini B to 3.5mm Jack) |
| Cable Interface |
KVM
- To KVM: 1 x VGA/SVGA HDB 15-pin (male)
- To PC: 1 x USB (Type A), 1 x VGA/SVGA HDB 15-Pin (male)

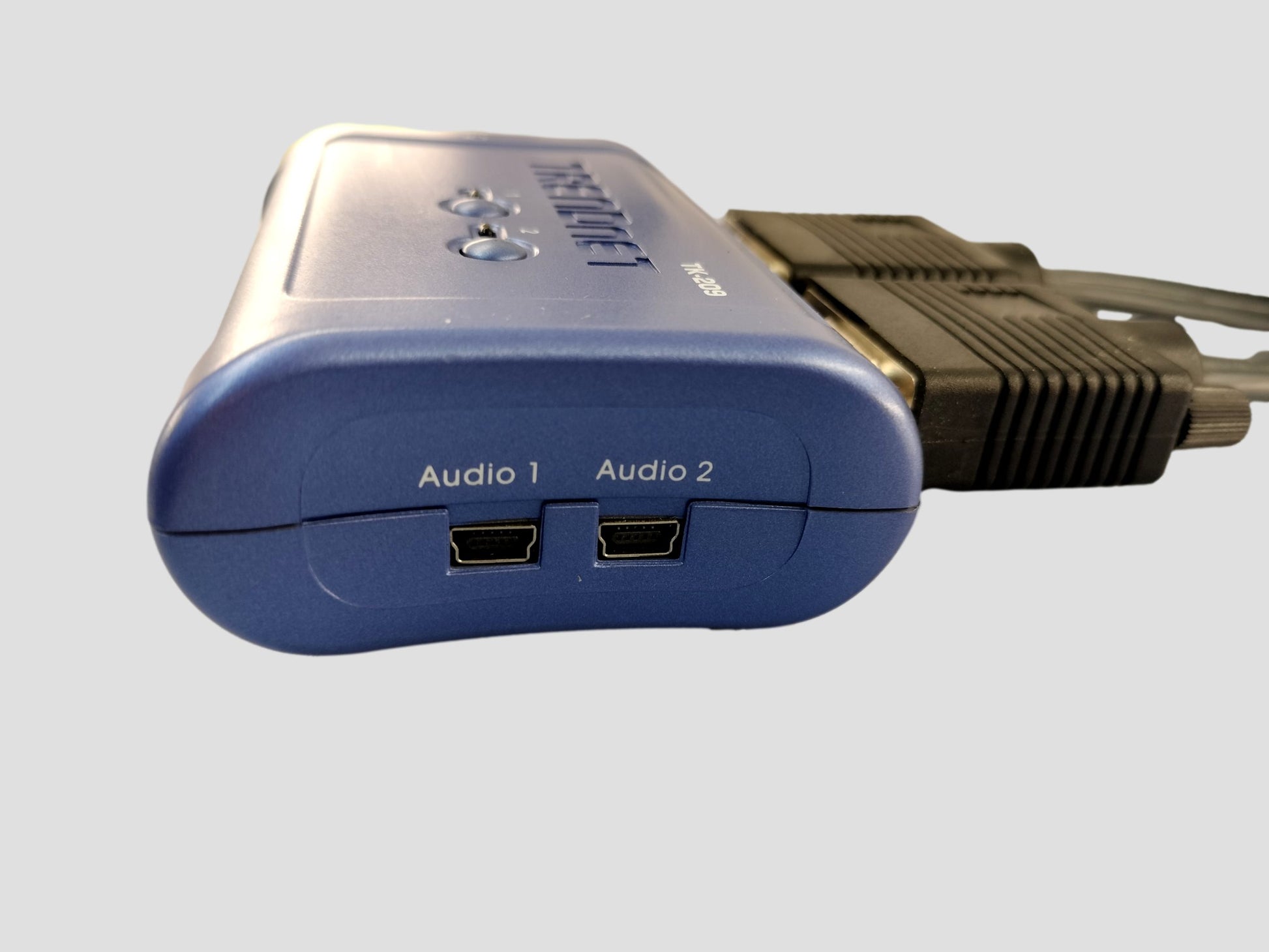

Audio
- To KVM: 1 x USB (Mini B)
- To PC: 1 x 3.5mm audio in/out jack, 1 x 3.5mm microphone in/out jack
|

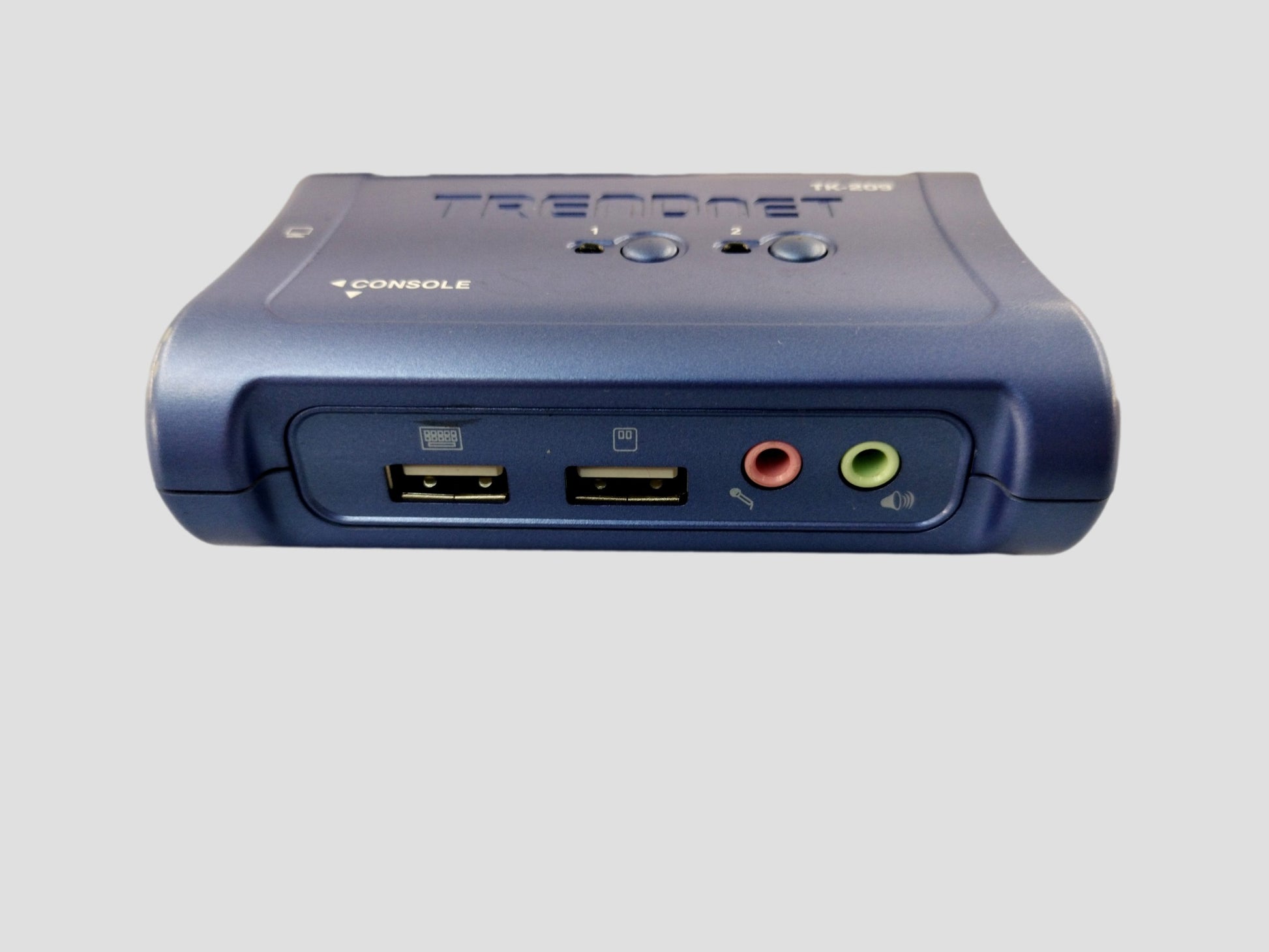

| Console Connectors |
1 x USB Keyboard (Type A)
1 x USB Mouse (Type A)
1 x VGA/SVGA HDB 15-pin
1 x 3.5mm audio in/out jack
1 x 3.5mm microphone in/out jack |
| Port Selection |
Push Button, Hot-Key Commands, or Windows-Based Client Switching Software |
| Auto-Scan Interval |
10 ~ 60 seconds |
| Keyboard State |
Saved and Restored |
| Power Type |
USB Interface Power |
| Dimensions |
98 x 70 x 28 mm (3.86 x 2.76 x 1.1 in.) |
| Weight |
100 g (3.6 oz) |
| Temperature |
- Operating: 0°C ~ 40°C (32°F ~104°F)
- Storage: -20°C ~ 60°C (-4°F ~140°F)
|
| Humidity |
0%~90%, Non-Condensing |
